Waterproof OEM Touchscreen All In One Desktop PC Computer Fit I3 I5 I7 Android
10.1'' - 65'' Multi Touch Aio Touch PC All In One Computer I3 I5 I7 Android
15'' Aio All In One Touch PC Features:
- Aio touch size from 10.1'' to 65''
- vandal-proof 3mm touchscreen glass
- L G, Sam sung, AU O, BO E, ect LCD LED Panels
- PCAP capacitive technology support 5 or 10 points multi-touch function
- IP65 touchscreen sur face waterproof
- CPU optional J1900/I3/I5/I7/A-ndroid
- 2-32 GB ect RAM Optional
- 32- 512GB ect SSD Optional
- VESA and rear mounting
- Good factory price and fast delivery
- Our Aio All In One Touch PC are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
- Warranty: 12 months
Specifications:
| General Information | |
| Model | CCT150-CFF-M219F-6C |
| CPU | J1900 / I3/I5/I7/ And-roid optional |
| RAM | 2/4/8/16/32GB RAM |
| Memory | 32/64/128/256/512 GB SSD |
| Interface | H-DMI, VGA, USB, COM, RJ45 |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins7/8/10 or Android |
| LCD Specification | |
| Active area(mm) |
304.128 × 228.096 (H×V) mm |
| Resolution |
1024×768@60Hz |
| Pixel Pitch(mm) |
0.297×0.297 |
| Nominal input voltage VDD | 3.3v |
| Viewing angle(v/h) |
89/89/89/89 (Typ.)(CR≥10) |
| Contrast |
1500:1 |
| Luminance (cd/m2) | 250 cd/m² (Typ.) |
| Response time |
20/15 (Typ.)(Tr/Td) ms |
| Support color |
262K/16.2M |
| Backlight MTBF(hr) | 30000 |
|
Touchscreen Specification |
|
|
Type |
Cjtouch Projected Capacitive PCAP touchscreen |
|
Multi touch |
10 points multi touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components of Aio All In One Touch PC:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Package :
1 or 2 pcs AIO Touch PC in one carton, EPE package inside
Shipping :
For sample order: By Fedex, TNT, UPS, DHL etc.
For bulk order: By air to airport or by sea to seaport
Others:
1. We support Western Union, T/T, L/C and Paypal. Payment terms: 30% deposit by T/T when order confirmed, the balance shall be paid before the shipment by T/T.
2. Lead time: 3-5 working days according to the order quantity
3. The price: based on FOB Shenzhen or EXW Dongguan, we will offer best discount according to order quantity
4. Provide service OEM ODM service.

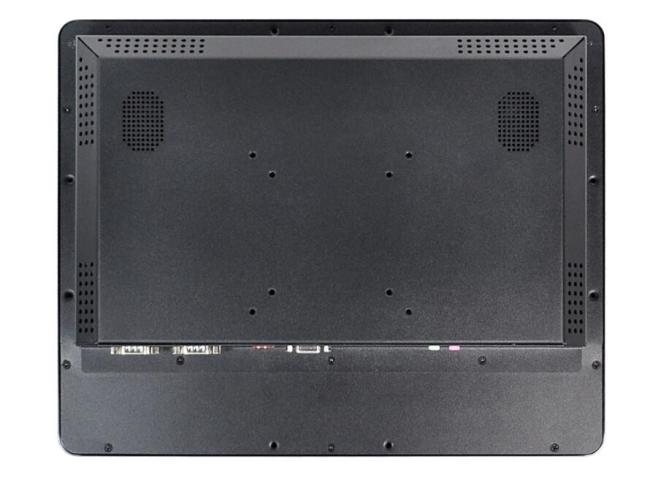

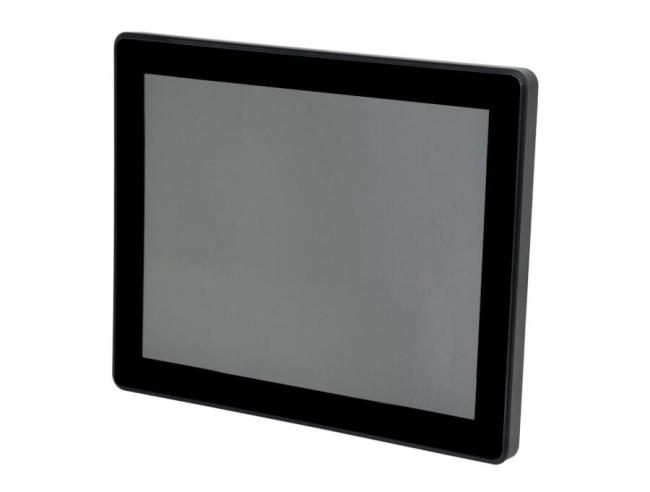

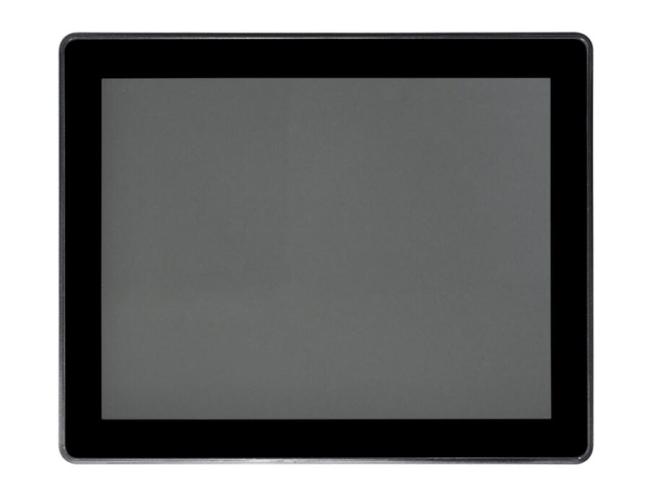

Pictures:

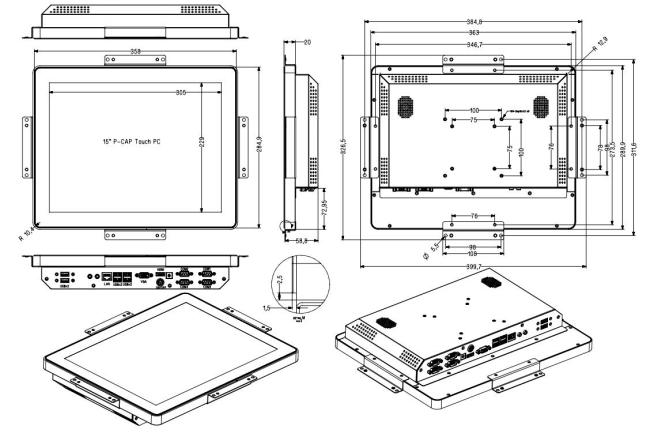

Drawing:
