18.5 Inch 5 Wire Resistive Touch Panel usb With 1 Touch Points
5 wire 18.5 inch touch screen glass Resistive touch screen usb touch control board
5 Wire Resistive Touch Screen Works
CJTouch 5-wire resistive touch touch screen is a two-layer structure, the two materials (film or glass) having attached ITO having a gap between them, so as to face each other ITO layer, pressed down and touch as top two when an ITO layer contact input will be made, there is the point gap between the ITO layer insulator called the top and bottom, which are spaced points to prevent accidental contact with the ITO layer (input), fails, when the top of the ITO film is pressed and when making contact with the bottom of the glass, the contact area can be detected via electrical conduction. Notable features five-wire resistive is that only the bottom of the glass has been detected function, even if the top of the ITO film is destroyed, the detection function is not affected (in addition to the damaged area).
Product Application:
- Telecommunication Devices
- Consumer Products
- Technical Equipment
- Office Automation
- Home Appliances
- Automobile Display
- IT Products
- Medical Equipment
Customized Resistive Touch Screen:
- Our resistive touch panel design can be suitable for housing design from the customers to cover their lens or replace the physical buttons on its original module.
- We are also capable of doing the customized shape needed to suit for customer's mechanical design.
- With the assistance of the simulation software, equipment with high accuracy and simplifying assembly process, we are capable of making the sample in shorter period and with lower development charge.
Main Feature
- High accurate
- Pressure sensitive
- Can responds to any input device
- Short response time
- Compact size for easy integration
- Customization available
Specification of Product
| 5 Wires Resistive Touch Panel Specification | |
| General Size | 10.4 inch To 22 inch |
| Fit in with | Panel display device |
| Mechanical | |
| Input Method | Finger or gloved hand (rubber ,cloth or leather) |
| Active Force | Stylus or Finger or Similar <45g~110g |
| Ball Impact | ø13.0. Steel Ball/9g, Height=30cm, 1 time, no damage [Impact at center area] |
| Durability | >35 million touches |
| Positional Accuracy | <1.5% |
| Optical | |
| Light Transmission | 82% |
| Clear surface | <3% |
| Anti-glare Surface | <4% |
| Anti-Newton | <10% |
| Gloss | 90±20 gloss units tested on a hard-coated front surface Accordance with ASTM D 2457 |
| Electrical | |
| Supply voltage | DC5V |
| Circuit Resistance | X:20~25Ω0, Y:20~250Ω |
| Linearity | X<1.5%, Y<1.5% |
| Response | <15ms |
| Insulation | >20MΩ/25V(DC) |
| Endurance | No acting damage at DC50V/60sec. |
| Resolution | Based on controller resolution of 4096 x 4096 |
| Environmental | |
| Operation Temperature | -10°C ~ +60°C |
| Operation Humidity | 20%RH ~ 85%RH, no condensing |
| Storage Temperature | -40°C ~ +80°C |
| Storage Humidity | 10%RH ~ 90%RH, no condensing |
| Waterproof | Not damaged by running water applied to the active area |
| Reliability | |
| Heat Cycle | 70°C /240 hrs |
| Cold Cycle | -40°C /240 hrs |
| Thermal Cycle | -40°C ~7°0C [60 min./cycle] *10 cycles |
| Operationg System | |
| Operation System | Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/ 7 /Mac OS |
| Warranty | |
| Touch screen 1 years | |
| Touch Controller 1 years | |
Picture of Product

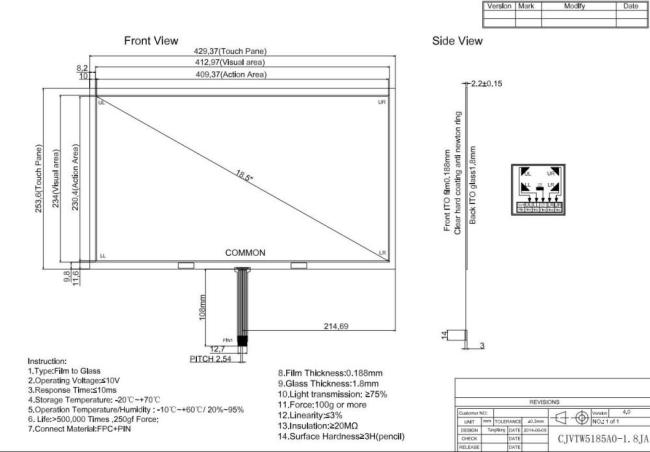

Technical Drawing
