High Clarity Resistive Touch Screen Fingerprint Resistant 4 Wire 15 Inch
Custom size touch screen 4 wire 15 inch resistive touch screen panel
Specializing in Custom Products
- Custom sizes for Resistive Touch Screens
- Capability to attach touch screens to LCDs or other components
- Fingerprint resistant, high transmittance films
4 Wire Resistive Touch Screen Features
- Ability to use Finger or Stylus to Activate Touchscreen
- Pressure sensitive for use with finger or stylus
- High clarity
- Medium durability
- Pressure sensitive
- Customization available
- Can responds to any input device
- Short response time
- Compact size for easy integration
Resistive touchscreens deliver cost-effective, consistent and durable performance in environments where equipment must stand up to contaminants and liquids, such as in restaurants, factories, and hospitals. Disadvantages of resistive touchscreens include only 75% optical transparency and the fact that a sharp object can damage the resistive layers.
Do resistive touch screens work with gloves?
Known as resistive touchscreens, these devices support bare and gloved fingers. Since they work using pressure instead of capacitance, you can use a resistive touchscreen device while wearing gloves.
How does a resistive touch screen work?
In simple terms, a Resistive Touch Screen is a touch-sensitive computer display that responds by applying pressure.When contact is made to the surface of the touchscreen, these two sheets are pressed together. Each sheet has horizontal and vertical lines that register the precise location of the touch.
Specification of Product
| 4 Wires Resistive Touch Panel Specification | |
| General Size | 5.7 inch To 22 inch |
| Fit in with | Panel display device |
| Mechanical | |
| Input Method | Finger or gloved hand (rubber ,cloth or leather) |
| Active Force | Stylus or Finger or Similar <45g~110g |
| Ball Impact | ø13.0. Steel Ball/9g, Height=30cm, 1 time, no damage [Impact at center area] |
| Durability | >35 million touches |
| Positional Accuracy | <1.5% |
| Optical | |
| Light Transmission | 82% |
| Clear surface | <3% |
| Anti-glare Surface | <4% |
| Anti-Newton | <10% |
| Gloss | 90±20 gloss units tested on a hard-coated front surface Accordance with ASTM D 2457 |
| Electrical | |
| Supply voltage | DC5V |
| Circuit Resistance | X:20~25Ω0, Y:20~250Ω |
| Linearity | X<1.5%, Y<1.5% |
| Response | <15ms |
| Insulation | >20MΩ/25V(DC) |
| Endurance | No acting damage at DC50V/60sec. |
| Resolution | Based on controller resolution of 4096 x 4096 |
| Environmental | |
| Operation Temperature | -10°C ~ +60°C |
| Operation Humidity | 20%RH ~ 85%RH, no condensing |
| Storage Temperature | -40°C ~ +80°C |
| Storage Humidity | 10%RH ~ 90%RH, no condensing |
| Waterproof | Not damaged by running water applied to the active area |
| Reliability | |
| Heat Cycle | 70°C /240 hrs |
| Cold Cycle | -40°C /240 hrs |
| Thermal Cycle | -40°C ~7°0C [60 min./cycle] *10 cycles |
| Operationg System | |
| Operation System | Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/ 7 /Mac OS |
| Warranty | |
| Touch screen 1 years | |
| Touch Controller 1 years | |

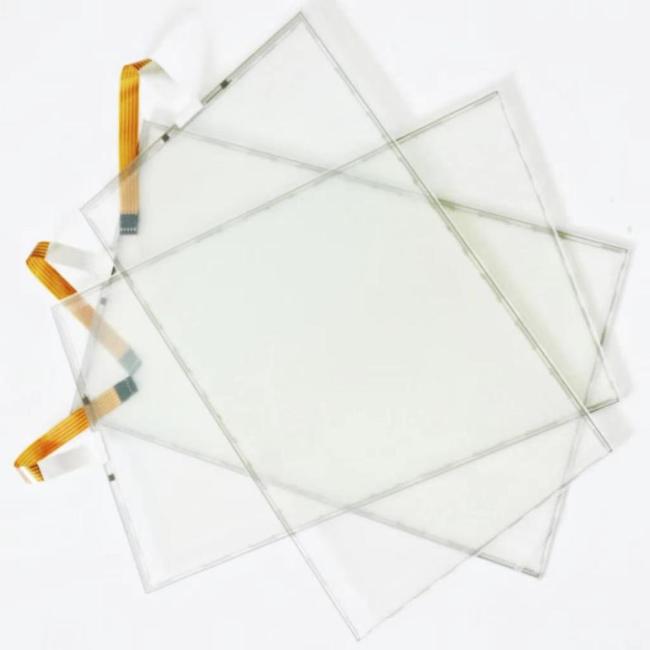

Picture of Product

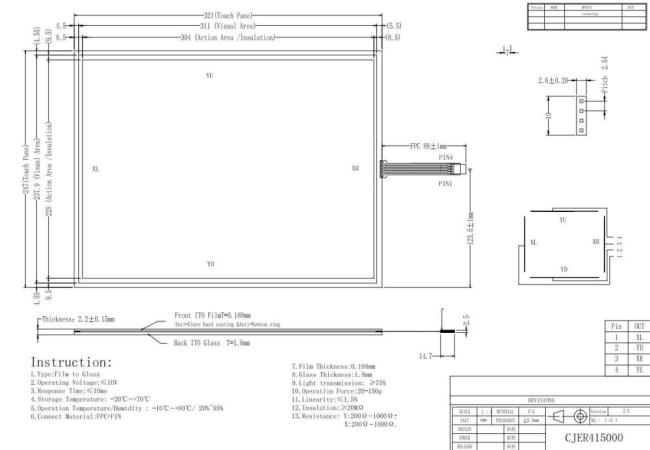

Technical Drawing
