DC 12V Capacitive PCAP Touch Monitor For Kiosk ATM Machine 27 Inch Waterproof
27 inch interactive PACP touch monitor with vga and dvi interface 27'' multi-touch capacitive touch monitor
27 inch PCAP touch monitor Features:
Industrial design with Excellent durability
P65 Touch Screen Surface Water-Proof Sealed
3mm tempered glass with high resistance
Easy to Use:Plug and Works on Wins/Li-nux/An-droid
VESA Mounting and Rear Mounting
12 Months Warranty
Custom accepted
Perfect Solutions For Use In Public
Factory Competitive Price and Fast Delivery
Applicable to harsh environment and widely used in industrial, commercial, atm machine ect.
Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one computers. With advanced, cost-effective touch solutions, CJTouch believes in engaging with customers while providing customized services. (More information : www.cjtouch.com )
Our service strength
Your any inquiry or question will be replied within 24hrs.
Custom are well welcomed,regarding the interfaces,functions,images,structures,etc.We have professional engineer team to realize your idea.
You can find the right product you want,whatever the most competitive price or Highest quality!
27 inch Capacitive touch monitor specification :
| Display Specifications | ||||
| Characteristic | Value | Comment | ||
| LCD Size/Type | 27” a-Si TFT-LCD | |||
| Aspect Ratio | 16:9 | |||
| Active Area | Horizontal | 597.6mm | ||
| Vertical | 336.15mm | |||
| Pixel | Horizontal | 0.31125 | ||
| Vertical | 0.31125 | |||
| Panel Resolution | 1920(RGB)×1080 (FHD)(60Hz) | Native | ||
| Display Color | 16.7 Million | 6-bits + Hi-FRC | ||
| Contrast Ratio | 3000:1 | Typical | ||
| Brightness | 300 cd/m² (Typ.) | Typical | ||
| Response Time | 7/5 (Typ.)(Tr/Td) | Typical | ||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Typical | ||
| Video Signal Input | VGA and DVI and H-DMI | |||
| Physical Specifications | ||||
| Dimensions | Width | 649.2 mm | ||
| Height | 393.4 mm | |||
| Depth | 44.9 mm | |||
| Weight | Net Weight 10 kgs | Shipping Weight 12 kgs | ||
| Box Dimensions | Length | 730 mm | ||
| Width | 180 mm | |||
| Height | 470 mm | |||
| Electrical Specifications | ||||
| Power Supply | DC 12V 4A | Power Adapter Included | ||
| 100-240 VAC, 50-60 Hz | Plug Input | |||
| Power Consumption | Operating | 38 W | Typical | |
| Sleep | 3 W | |||
| Off | 1 W | |||
| Touch Screen Specifications | ||||
| Touch Technology | Project Capacitive Touch Screen 10 Touch Point | |||
| Touch Interface | USB (Type B) | |||
| OS Supported | Plug and Play | Wins,Li-nux (HID) ,And-roid | ||
| Driver | Driver Offered | |||
| Environmental Specifications | ||||
| Condition | Specification | |||
| Temperature | Operating | -10°C ~+ 50°C | ||
| Storage | -20°C ~ +70°C | |||
| Humidity | Operating | 20% ~ 80% | ||
| Storage | 10% ~ 90% | |||
| MTBF | 30000 Hrs at 25°C | |||
Components:
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
USB Cable 180cm*1 Pcs,

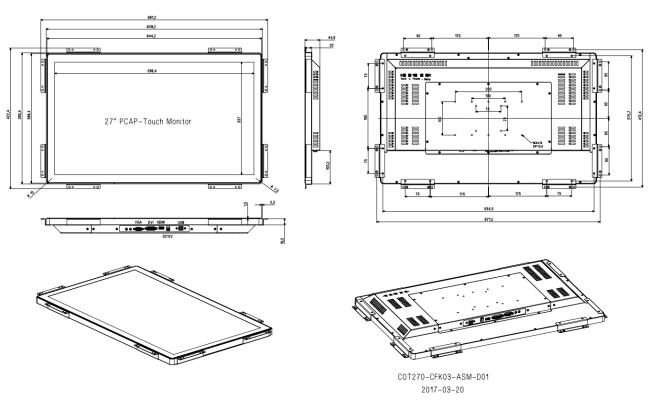

27 inch PCAP touch monitor drawing:

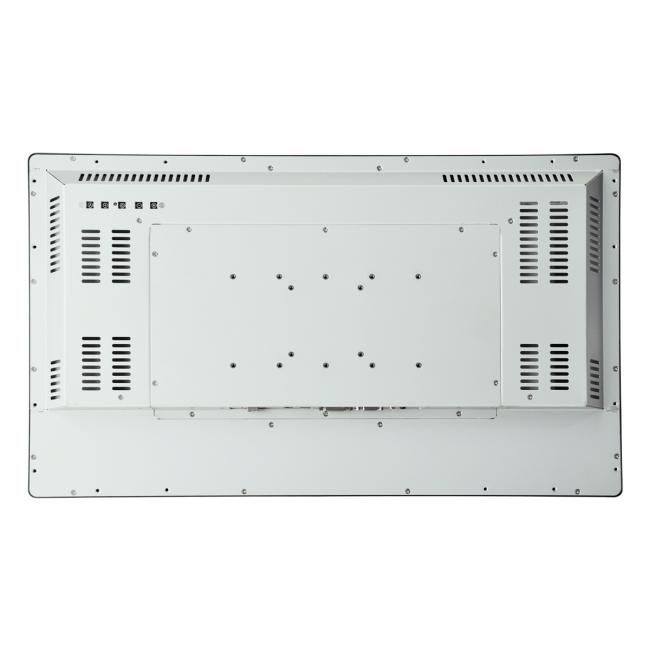

27 inch Capacitive display monitor pictures:
