Vandalproof glass Saw Touch Screen Monitor 13.3inch dust proof
Vandalproof glass Multi-touch 13.3inch SAW touchscreen monitor Hight Brightness SAW Touchscreen led/lcd display monitor
- This monitor will come with 4mm/6mm Industrial touch screen,
- Waterproof, dust-proof, Anti-glare, Anti-vandal are optional.
- Multiple mounting options including rear Mount and VESA mounting
- Can do USB and RS232 touch interface, DVI, HD-MI, VGA video input optional
Company Profile
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help
seamlessly integrate our products into your total solution.
* Over 8 years of combined experience in researching and developing touch-enabled screens and monitors.
* Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned FCC, RoHS and other
international certifications.
* Single Multi-touch screens (custom sizes available)
* Single Multi-touch monitors (custom sizes and functions available)
* All-in-one computers
* ODM/OEM services
Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most
cutting-edge solutions in the industry.
* Sur-face Acoustic Wave (SAW) touch technology
* Infrared touch technology
* Projected Infrared Touch technology
Specification :
| Model | COT133-APK02 |
| Series | Dustproof |
| Monitor Dimensions | Width: 343mm Height: 214mm Depth: 42.5.5mm |
| Weight(N.W/G.W) | 6Kg / 9Kg (Approx.) |
| LCD Type | 13.3"SXGA Color TFT-LCD (Panel Model :G133EG01 V0) |
| Video Input |
Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally |
| Recommend Resolution | 1680(RGB)×1050 |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| Regular Warranty | 1 years for SAW Sensor; 3 years for controller; 1 year for LCD |
| Agency Approval | FCC,CE |
2.LCD specs
| Active Area(mm) | 293.472 × 165.078 mm |
| Resolution | 1920(RGB)×1080 [FHD] |
| Dot Pitch(mm) | 0.05095×0.15285 mm (H×V) |
| Nominal Input Voltage VDD | 3.3V (Typ.) |
| Viewing angle (v/h) | 80/80/80/80 (Typ.) |
| Contrast | 800:1 (Typ.) |
| Brightness | 300 (Typ.) |
|
Pixel Pitch(W×H) |
0.15285×0.15285 mm (H×V) [166PPI] |
| Support Color | 16.7M colors |
| Response Time | 25 (Typ.)(Tr/Td) |
| NOTE:The LCD Specification will change follow the relevant LCD panel brand and model | |
3.Touch screen
| Type | Cjtouch Surface Acoustic Wave(SAW) |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 16ms |
| Touch System Interface | RS-232 and USB interface |
| Power consumption | +5V@80mA |

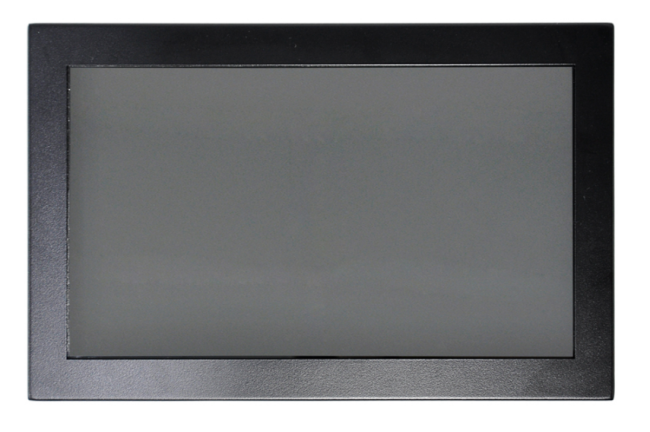

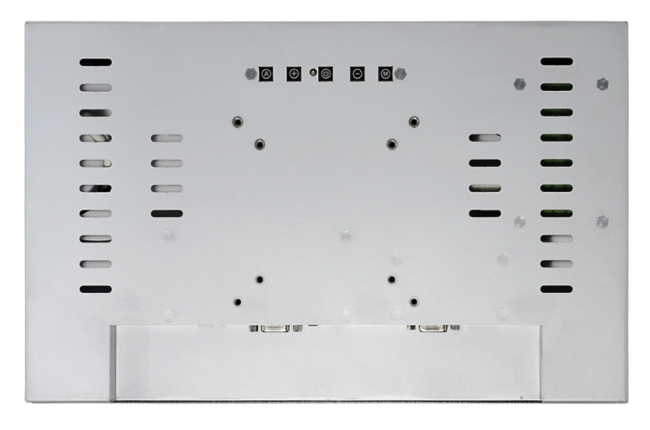

Touch monitor Pictures
Products Drawing :
