15.6 Inches All In One AIO Touch PC With Widescreen 10 Points
15.6 Inches Wide Screen Touch AIO All In One Touch Computer PC With 10 Points Touch
15.6'' AIO All In One Touch Computer PC Features:
- Aio touch size from 10.1'' 12.1'' 13.3'' 15'' 15.6'' 17'' 18.5'' 19'' 21.5'' 23.8'' 27'' 32'' 43'' 55'' 65''
- 3mm anti vandal-proof touchscreen glass
- L G, Sam sung, AU O, BO E, ect LCD LED Panels
- PCAP projected capacitivetouchscreen upport 10 points touch
- IP65 touchscreen sur face waterproof
- CPU optional J1900/I3/I5/I7/A-ndroid
- 2-32 GB ect RAM Optional
- 32- 512GB ect SSD Optional
- VESA mounting and rear mounting
- Good factory price and fast delivery
- Our AIO All In One Touch Computer PC are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
- Warranty: 1 year
15.6'' AIO All In One Touch Computer PC Specifications:
| General Information | |
| Model | CCT156-CFK-QM1100 |
| CPU | J1900 / I3/I5/I7/ And-roid optional |
| RAM | 2/4/8/16/32GB RAM |
| Memory | 32/64/128/256/512 GB SSD |
| Interface | H-DMI, VGA, USB, COM, RJ45 |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins7/8/10 or Android |
| LCD Specification | |
| Active area(mm) |
344.16 × 193.59 (H×V) mm |
| Resolution |
1920×1080@60Hz |
| Pixel Pitch(mm) |
0.17925×0.17925 (H×V) |
| Nominal input voltage VDD | 3.3v |
| Viewing angle(v/h) |
85/85/85/85 (Typ.) |
| Contrast |
800:1 |
| Luminance (cd/m2) | 250 cd/m² (Typ.) |
| Response time |
30 (Typ.)(Tr+Td) ms |
| Support color |
16.7M |
| Backlight MTBF(hr) | 30000 |
|
Touchscreen Specification |
|
|
Type |
Cjtouch Projected Capacitive PCAP touchscreen |
|
Multi touch |
10 points multi touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components of AIO All In One Touch Computer PC:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Package :
1 or 2 pcs AIO All In One Touch Computer PC in one carton, EPE package inside
Shipping :
For sample order: By Fedex, TNT, UPS, DHL etc.
For bulk order: By air to airport or by sea to seaport

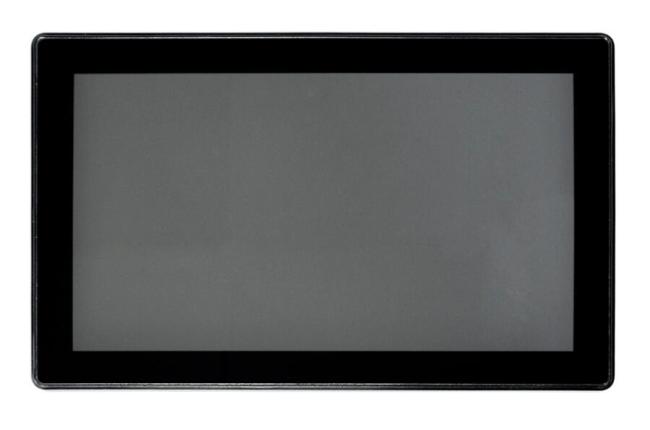

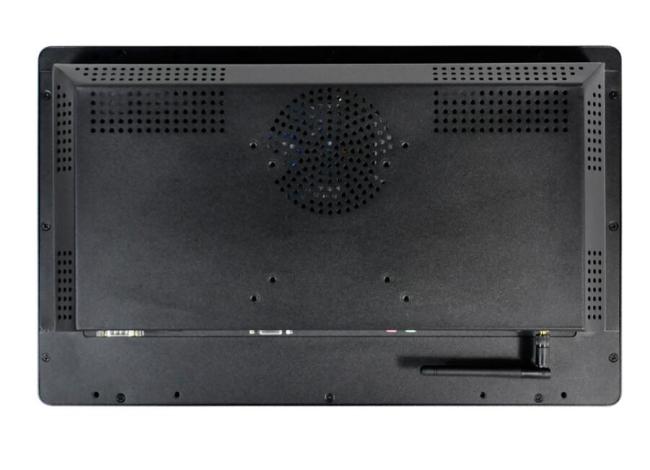

Pictures:

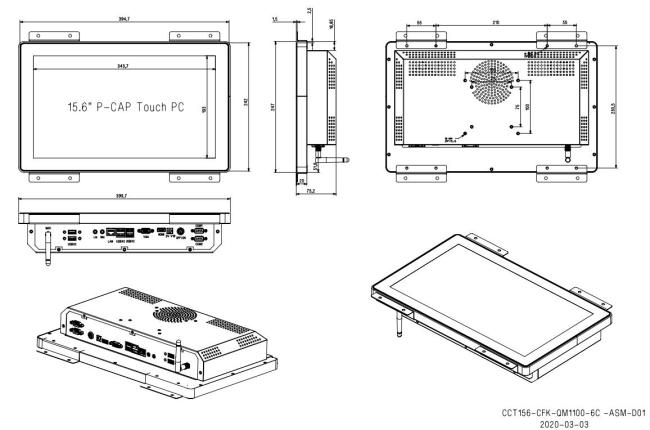

Drawing:
