OEM ODM Dustproof SAW Touch Monitor LCD / LED panel 17 inch
Factory 17 inch Openframe SAW Touchscreen monitor lCD/LED panel display monitor
- This monitor will come with 4mm/6mm Industrial touch screen,
- Waterproof, dust-proof, Anti-glare, Anti-vandal are optional.
- Multiple mounting options including rear Mount and VESA mounting
- Can do USB and RS232 touch interface, DVI, HD-MI, VGA video input optional
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned FCC, RoHS and other
international certifications.
* Single Multi-touch screens (custom sizes available)
* Single Multi-touch monitors (custom sizes and functions available)
* All-in-one computers
* ODM/OEM services
Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most
cutting-edge solutions in the industry.
* Sur-face Acoustic Wave (SAW) touch technology
* Infrared touch technology
* Projected Infrared Touch technology
FAQ
1, Are you a factory?
We are a factory producing touch screen products, so we can offer you the lowest price and the best qualities. And you are welcome
to visit our factory.
2, What certificates do you hold?
CE, FCC, CCC, RoHS etc., to meet standards of different countries.
3, How long is the delivery time?
Usually 3~7 days after the payment is confirmed.
4, How would you pack the goods if we order goods?
Pack with carton box and foam materials.
5, What is your after-sales service?
Call our after-sales center and we offer on-line Technical Support and spare parts.
6, What is your MOQ?
1 Piece.
7, Do you support OEM/ODM?
Yes we do.
8, Can I customized the style of the products we need?
Yes, you can. Please contact us and and discuss with us.
Specification :
| Model | COT170E-AWF02 |
| Series | Dustproof |
| Monitor Dimensions | Width: 368mm Height: 306mm Depth: 49.5mm |
| Weight(N.W/G.W) | 6Kg / 9Kg (Approx.) |
| LCD Type | 17"SXGA Color TFT-LCD (Panel Model :G170EG01 V0) |
| Video Input |
Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally |
| Recommend Resolution | 1280(RGB)×1024 |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| Regular Warranty | 1 years for SAW Sensor; 3 years for controller; 1 year for LCD |
| Agency Approval | FCC,CE |
2.LCD Specs
| Active Area(mm) | 337.92 × 270.336 mm |
| Resolution | 1280(RGB)×1024 |
| Dot Pitch(mm) | 0.088×0.264 mm |
| Nominal Input Voltage VDD | 5.0V (Typ.) |
| Viewing angle (v/h) | 85/85/80/80 (Typ.) |
| Contrast | 250 (Typ.) |
|
Pixel Pitch(W×H) |
0.264×0.264 mm |
| Support Color | 16.7M colors |
| Response Time | 3.8/1.2 (Typ.) |
| NOTE:The LCD Specification will change follow the relevant LCD panel brand and model | |
3.Touch Screen
| Type | Cjtouch Surface Acoustic Wave(SAW) |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 16ms |
| Touch System Interface | RS-232 and USB interface |
| Power consumption | +5V@80mA |

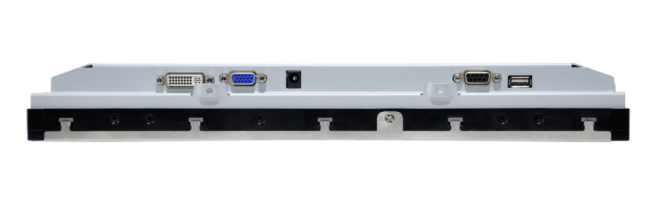

Touch monitor Pictures
Products Drawing :
