All In One Panel PC For ATM
17'' Touch Screen All In One Panel Pc Multi Touch For Kiosk, ATM
Features:
- Optional size from 10.1'' to 65''
- With PCAP vandal proof touchscreen, support 10 points touch
- L G, Sam sung, AU O, BO E, ect LCD LED Panels
- IP65 touch screen sur face waterproof sealled
- CPU J1900/I3/I5/I7/A-ndroid according to your requirements
- RAM from 2GB to 32GB Optional
- 32/64/128/256/512 ect SSD Optional
- VESA mounting and rear mounting
- Factory best price and fast delivery
- Our Touch screen all in one panel pc are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
- Warranty: 12 months
- 14 years' experienced manufacturer of SAW / Infrared / PCAP touch screens/touch monitors/ Touch screen all in one panel pc
Specifications:
| General Information | |
| Model | CCT170-CFF-J1900 |
| CPU | J1900 / I3/I5/I7/ Android optional |
| RAM | From 2GB - 32GB |
| Memory | From 32GB -512GB SSD |
| Interface | USB, COM, RJ45, HD-MI, VGA |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins 7/8/10 or Android |
| LCD Specification | |
| Active area(mm) |
337.92 × 270.336 (H×V) mm |
| Resolution |
1280×1024@60Hz |
| Pixel Pitch(mm) |
0.264×0.264 (H×V) |
| Nominal input voltage VDD |
+5V |
| Viewing angle(v/h) |
85/85/80/80 (Typ.)(CR≥10) |
| Contrast |
1000:1 |
| Luminance (cd/m2) | 250 cd/m² (Typ.) |
| Response time |
3.8/1.2 (Typ.)(Tr/Td) ms |
| Support color |
16.7M , 90% NTSC |
| Backlight MTBF(hr) | 30000 |
|
Touchscreen Specification |
|
|
Type |
PCAP touchscreen |
|
Multi touch |
10 points multi-touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Package :
1 or 2 pcs Touch screen all in one panel pc in one carton, EPE package inside
Shipping :
For sample order: By Fedex, TNT, UPS, DHL door to door service etc.
For bulk order: By air to airport or by sea to seaport

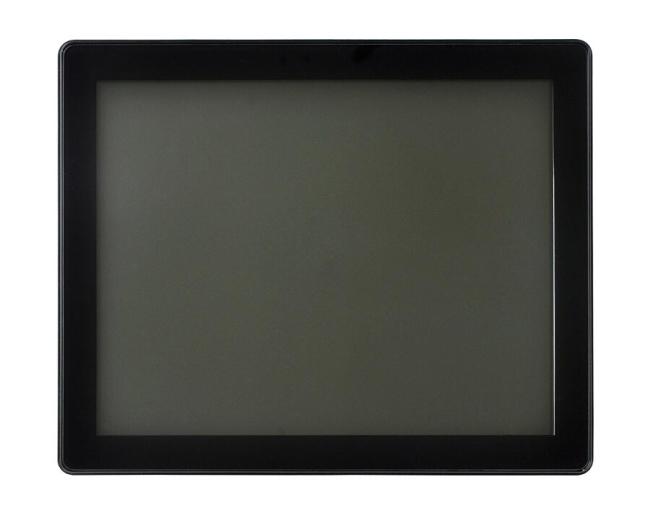

Pictures:

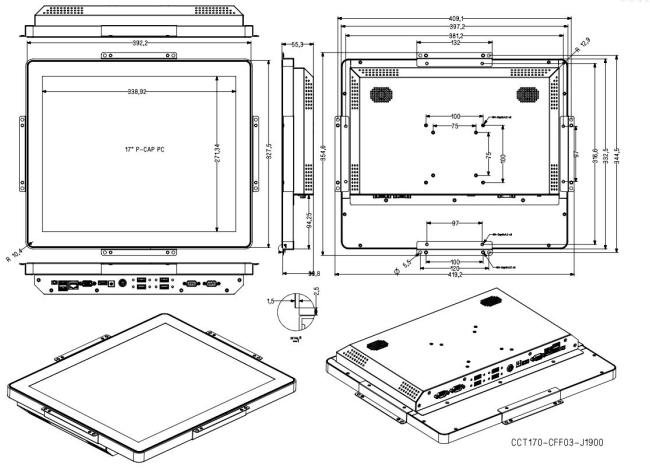

Drawing:
