FCC Multi Touch All In One PC For Kiosk , 18.5'' Capacitive Touchscreen PC
Price:
Negotiable
MOQ:
20 pcs
Delivery Time:
5-8 working days
Brand:
CJTOUCH
Product Description
18.5'' Panel PC Capacitive Touchscreen All In One AIO Touch PC Quad Core J1900 I3 I5 I7 For Kiosk
Features:
- Optional size from 10.1'' 12.1'' 13.3'' 15'' 15.6'' 17'' 18.5'' 19'' 21.5'' 23.8'' 27'' 32'' 43'' 55'' 65''
- With anti vandal PCAP touch panel, support 10 points touch
- L G, Sam sung, AU O, BO E, ect LCD LED Panels
- IP65 touch screen sur face waterproof sealled
- CPU optional J1900/I3/I5/I7/A-ndroid
- RAM 2GB , 4GB , 8GB , 16GB , 16GB , 32GB Optional
- 32GB , 64GB , 128GB , 256GB , 512GB ect SSD Optional
- VESA mounting and rear mounting
- Competitive price and fast delivery
- Our AIO Touch PC are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
- Warranty: 1 year
- 14 years' experienced manufacturer of SAW / Infrared / PCAP touch screens/touch monitors/ Touch screen all in one panel pc
Specifications:
| General Information | |
| Model | CCT185-CFK-RK3288-SS |
| CPU | Wins J1900 / I3/I5/I7/ Android optional |
| RAM | From 2GB - 32GB |
| Memory | From 32GB -512GB SSD |
| Interface | USB, COM, RJ45, HD-MI, VGA |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins 7/8/10 or Android |
| LCD Specification | |
| Active area(mm) |
409.8×230.4 mm |
| Resolution |
1366(RGB)×768 WXGA 84PPI |
| Pixel Pitch(mm) |
0.300×0.300 mm (H×V) [84PPI] |
| Nominal input voltage VDD |
+5V |
| Viewing angle(v/h) |
85/85/80/80 (Typ.)(CR≥10) |
| Contrast |
1000:1 |
| Luminance (cd/m2) | 250 cd/m² (Typ.) |
| Response time |
3.6/1.4 (Typ.)(Tr/Td) ms |
| Support color |
16.7M , 72% NTSC |
| Backlight MTBF(hr) | 30000 |
|
Touch screen Specification |
|
|
Type |
CJTouch projected capacitive touch screen |
|
Multi touch |
10 points touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs

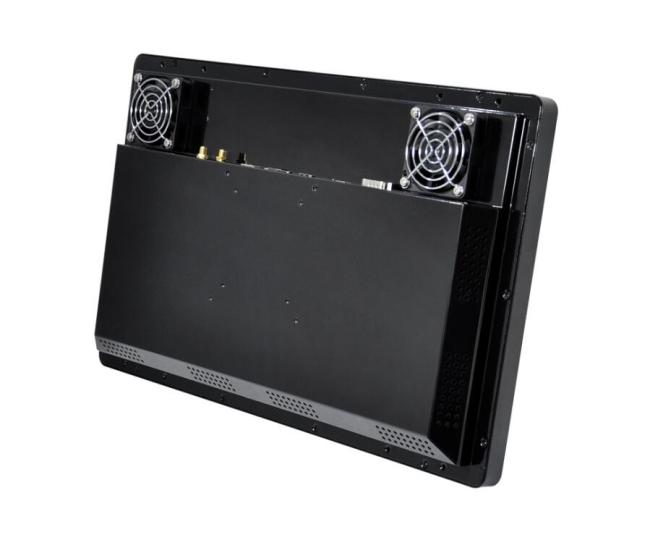

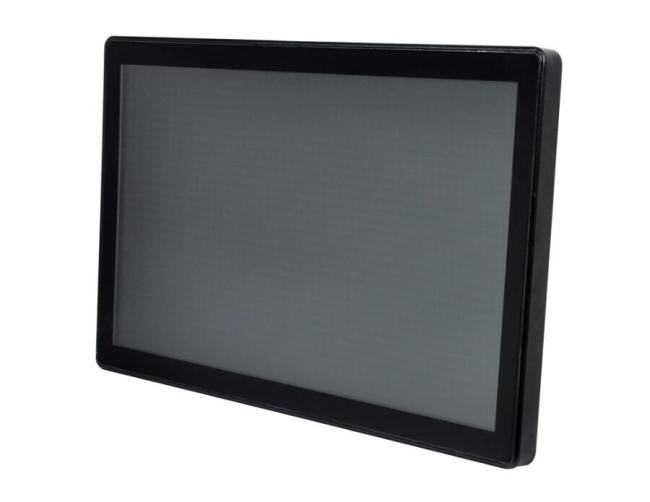

Pictures:

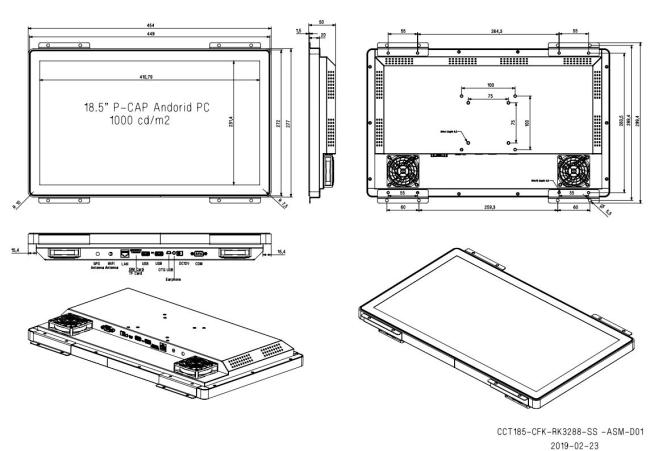

Drawing:
