Projected Capacitive 10 Point Multi Touch Screen With USB Interface 60Hz
Multi-touch 12.1 inch PCAP Touch Monitor industrial tft lcd display touch screen monitor capacitive technology
Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
Surface Acoustic Wave (SAW) touch technology
Infrared touch technology
Projected Infrared Touch technology
Our service strength
Your any inquiry or question will be replied within 24hrs.
Custom are well welcomed,regarding the interfaces,functions,images,structures,etc.We have professional engineer team to realize your idea.
You can find the right product you want,whatever the most competitive price or Highest quality!
12.1 inch PCAP touch monitor Features:
- Using new industrial TFT LCD screen
- Projected capacitive touch screen with 10-point tempered cover lens option.
- The screen is full flat with IP65 waterproof resistance.
- The material is Aluminum alloy.
- Using Industrial grade motherboard with reliable performance.
- Our products have got FCC,ROHS,CE,CCC,ISO certification approval.
- Satisfactory after-sales service
12.1 inch Capacitive touch monitor specification :
| General | |
| Model | COT121-CFF03 |
| Series | Flat screen and waterproof |
| Monitor Dimensions | Width: 293.5mm Height: 224mm Depth: 40mm |
| LCD Type | 12.1” Active matrix TFT-LCD |
| Video Input | VGA and DVI H-DMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply |
Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 246.0(H)×184.5(V) |
| Resolution | 800×600@60Hz |
| Dot Pitch(mm) | 0.3075×0.3075 |
| Nominal Input Voltage VDD | +3.3V(Typ) |
| Viewing angle (v/h) | 80/80/50/60 (Typ.)(CR≥10) |
| Contrast | 600:1 |
| Luminance(cd/m2) | 400 (Typ.) |
| Response Time(Rising/Falling) | 10/25 (Typ.)(Tr/Td) ms |
| Support Color | 16.2M colors |
| Backlight MTBF(hr) | 30000 |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Resolution | 10points touch |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs

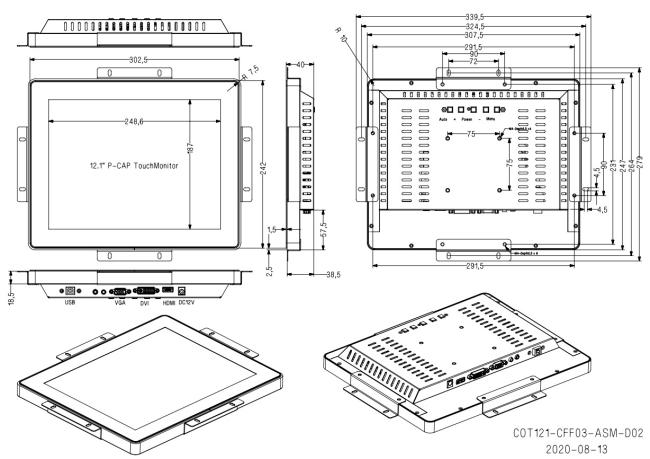

12.1 inch PCAP touch monitor drawing:

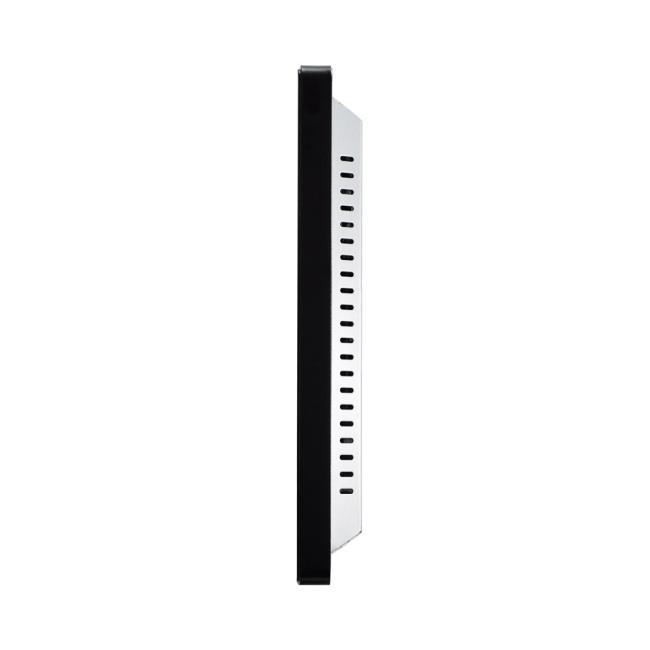

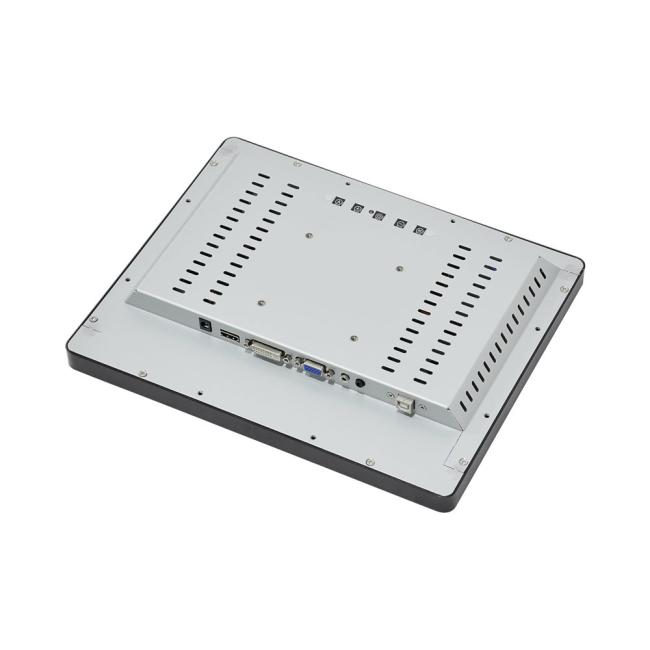

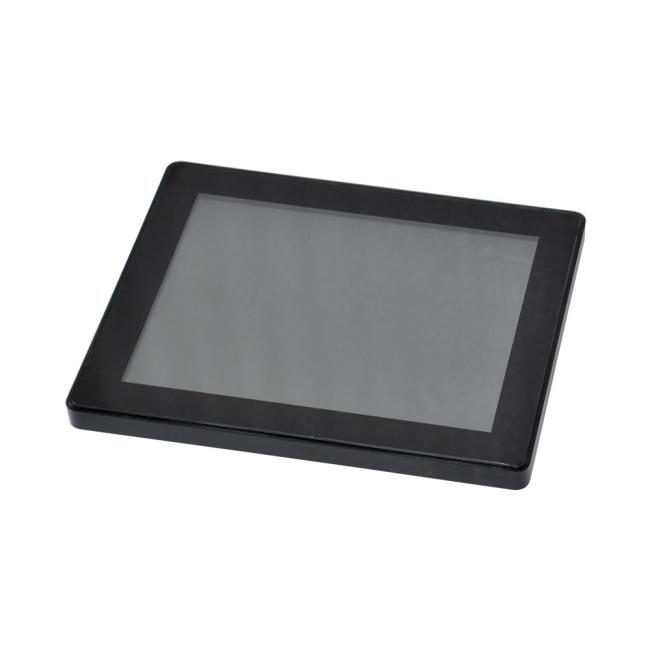

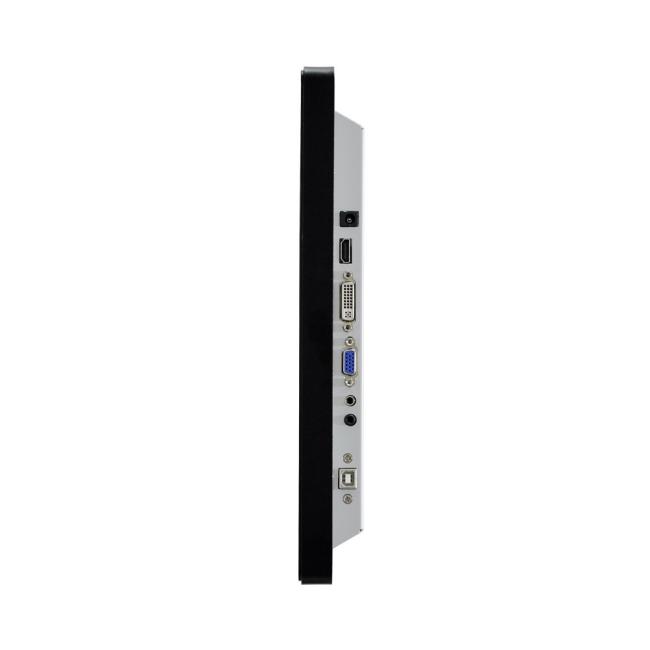

12.1 inch Capacitive display monitor pictures:
