Anti Water AIO Touch PC
Multi Touch Screen All-In-One Computer 21.5'' Anti Vandal AIO Touch PC
21.5'' AIO Touch PC Features:
- AIO Touch PC size 10.1'' - 65'' optional
- With anti- vandal PCAP touchscreen with multi touch 10 points
- L G, Sam sung, AU O, BO E, ect LCD LED Panels
- IP65 touchscreen sur face waterproof
- CPU I3/I5/I7/A-ndroid RK3288 RK3399
- RAM 2GB , 4GB , 8GB , 16GB , 16GB , 32GB Optional
- SSD 32GB , 64GB , 128GB , 256GB , 512GB ect Optional
- VESA and rear mounting
- product competitive price and fast delivery
- Our AIO Touch PC are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
- Warranty: 1 year
- 14 years' experienced manufacturer of SAW / Infrared / PCAP touch screens/touch monitors/ Touch Screen All-In-One Computer
21.5'' AIO Touch PC Specifications:
| General Information | |
| Model | CCT215-CFK-M219F-C00 |
| CPU | I3/I5/I7/ Android optional |
| RAM | 2GB , 4GB , 8GB , 16GB , 16GB , 32GB Optional |
| Memory | SSD 32GB , 64GB , 128GB , 256GB , 512GB ect Optional |
| Interface | USB, RS232, lAN, HD-MI, VGA |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins 7/8/10 or Android |
| LCD Specification | |
| Active area(mm) |
476.64 × 268.11 (H×V) mm |
| Resolution |
1920×1080@60Hz |
| Pixel Pitch(mm) |
0.24825×0.24825 mm |
| Nominal input voltage VDD |
+5V |
| Viewing angle(v/h) |
89/89/89/89 (Typ.)(CR≥10) |
| Contrast |
1000:1 |
| Luminance (cd/m2) | 250 cd/m² (Typ.) |
| Response time |
1.5/3.5 (Typ.)(Tr/Td) |
| Support color |
16.7M , 72% NTSC |
| Backlight MTBF(hr) | 30000 |
|
Touch screen Specification |
|
|
Type |
CJTouch PCAP touch panel |
|
Multi touch |
10 points multi touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Package :
EPE package inside, carton package outside
Shipping :
For sample order: By Fedex, TNT, UPS, DHL etc.
For bulk order: By air to airport or by sea to seaport

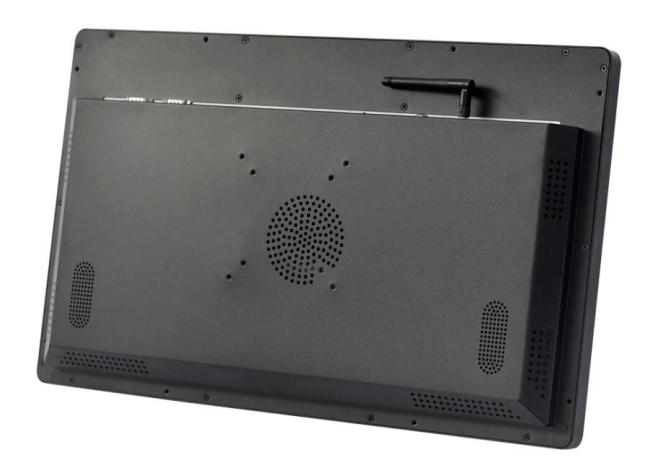

21.5'' AIO Touch PC Pictures:
21.5'' AIO Touch PC Drawing:
