Practical All In One AIO Touchscreen Computer Fit RK3288 RK3399 Antiglare
27'' IP65 Pcap Touch Screen AIO Touch PC With RAM SSD And J1900 I3 I5 I7 RK3288 RK3399
Features:
- Size optional : 10.1'' 12.1'' 13.3'' 15'' 15.6'' 17'' 18.5'' 19'' 21.5'' 23.8'' 27'' 32'' 43'' 55'' 65''
- With vandal-proof PCAP touch panel, supporting 10 points touch
- L G, Sam sung, AU O, BO E, ect LCD LED Panels
- IP65 PCAP touchscreen sur face water-proof
- I3/I5/I7/A-ndroid RK3288 RK3399 CPU optional
- RAM 2GB -32GB Optional
- SSD 32GB -512GBOptional
- VESA mounting / rear mounting
- Factory competitive price and fast delivery
- Our AIO Touch PC are widely used in so many fileds, including transportation, entetainment, education, finance, industrial control, self service kiosk, etc.
- Warranty: 12 years
- 14 years' experienced manufacturer of SAW / IR / PCAP touchscreens/touch monitors/ AIO Touch PC
Specifications:
| General Information | |
| Model | CCT270-CFK-B430-C00 |
| CPU | I3/I5/I7/ And-roid optional |
| RAM | 2GB , 4GB , 8GB , 16GB , 16GB , 32GB Optional |
| Memory | SSD 32GB , 64GB , 128GB , 256GB , 512GB ect Optional |
| Interface | HD-MI, VGA, USB, COM, LAN |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins 7/8/10 or Android |
| LCD Specification | |
| Active area(mm) |
597.6 × 336.15 (H×V) mm |
| Resolution |
1920 * 1080@60Hz |
| Pixel Pitch(mm) |
0.31125×0.31125 mm |
| Nominal input voltage VDD |
+5V |
| Viewing angle(v/h) |
89/89/89/89 (Typ.)(CR≥10) |
| Contrast |
3000:1 |
| Luminance (cd/m2) | 250 |
| Response time |
7/5 (Typ.)(Tr/Td) ms |
| Support color |
16.7M |
| Backlight MTBF(hr) | 30000 |
|
Touch screen Specification |
|
|
Type |
CJTouch projected capacitive touchscreen |
|
Multi touch |
10points touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Package :
EPE package inside, carton package outside
Shipping :
For sample order: By Fedex, TNT, UPS, DHL etc.
For bulk order: By air to airport or by sea to seaport.
You are welcome to ask us to delivery for you and contact your own agent.

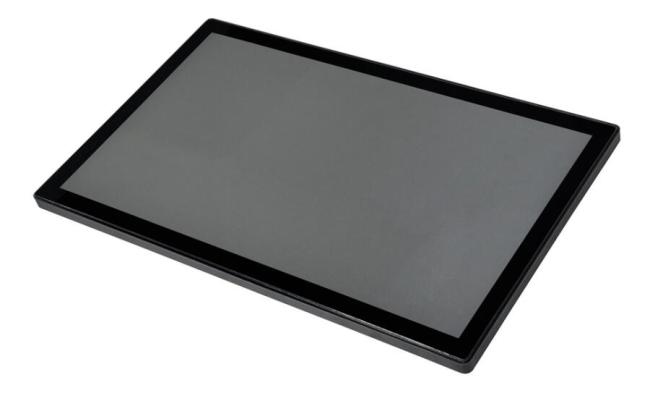

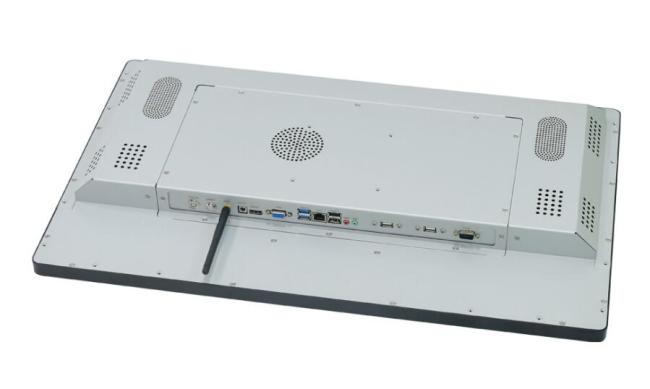

Pictures:

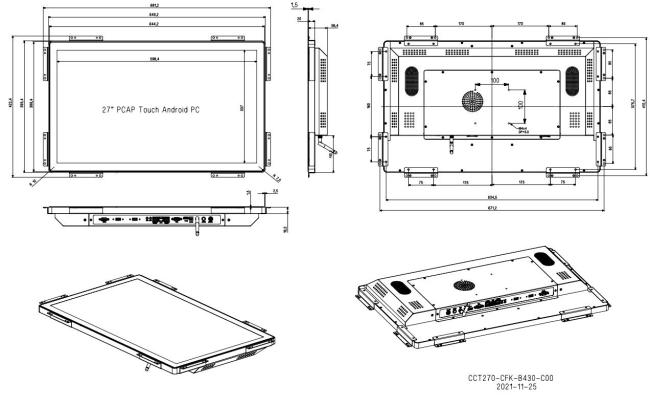

Drawing:
