32 Inch TFT LCD Panel , AUO IPS Display Panel For Digital Signage
32 inch IPS AUO display for digital signage TFT LCD panel with controller board
General description
CJP320HVN02.0 is a 32.0 inch LCD module using A-SI TFT-LCD technology. It is equipped with WLED backlight, including LED driver backlight drive, no touch. The screen library summarizes its typical features as follows: sRGB, landscape mode/portrait mode, white LED backlight, life > 50,000 hours, including LED driver, fog surface. It operates at 0-50 °C, stores at -20 to 60°C, and has a vibration resistance of 1.0g (9.8m /s²). This model is suitable for digital signage applications. According to the information obtained by the screen library, this product was mass-produced in Q4, 2014, and the current production state is in mass production. At present, CJP320HVN02.0 has 27 spot information and 23 supplier information on the screen library, which belongs to the main model of the screen library market. The screen library first established parameters for this model on April 30, 2014, and updated the parameters on September 27, 2019. According to CJTOUCH's product specification for Final Ver6.0 released on March 29, 2018, CJP320HVN02.0 displays a resolution of 1920(RGB)×1080 (FHD), an aspect ratio of 16:9 (WIDTH: height), and pixels arranged in RGB vertical stripes. It has display area dimensions of 698.4×392.85 (W × h) mm, visual dimensions of 703.4×397.9 (W × H) mm, external dimensions of 719.2(W)×413.7(H)×24.8(thick) mm, surface treatment of Haze 2%, Hard coating (3H), product net weight 4.59kgs (Typ.). In terms of backlighting, this product uses a WLED side entry light source with a life of 50K hours, including LED driver. P320hvn02.0 adopts LVDS (2 CH, 8-bit) signal interface, a total of 51 pins, adopts terminal connection, drive screen voltage is 12.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Specification
| Resolution | 1920x1080 |
| Pixel Pitch | 0.3637 ×0.3637 |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Active Area | 698.4(H)* 392.85(V) (mm) |
| View angle | R/L/U/D 89/89/89/89(Deg), Full view angle |
| Display Mode | AMVA3, Mode, Normally Black |
| LCD Surface | Anti-glare,3H |
| Number of Colors | 16.7M colors (RGB 8-bit) |
| Electrical Interface | Dual channels LVDS, 51pin |
| Brightness | 450 cd/m2 to 1000 cd/m2, customized according to customer demand |
| Contrast ratio | 3000:1 |
| Outline dimension | 727.4 (H) x 429 (V) x 20 (D) (Typ.) |
| Gross weight (g) | 5150(typ.) |
| Backlight | WLED |
| LED Life (hrs.) | 50K(Min.) |
| Power Consumption | 34.9W (typ) |
| (LCD Module + Backligh unit) | |
| Supply Voltage (V) | 5.0V(Typ.) |
| Response time | 8(Typ., on/off) |
| Operate temperature | 0-50 (°C) |
| Storage temperature | -20-60 (°C) |
| Package | 7pcs/carton;Carton size:82*37.6*53.5cm |
| RoHS Compliance | RoHS Compliance |
| TCO Compliance | TCO 6.0 Compliance |

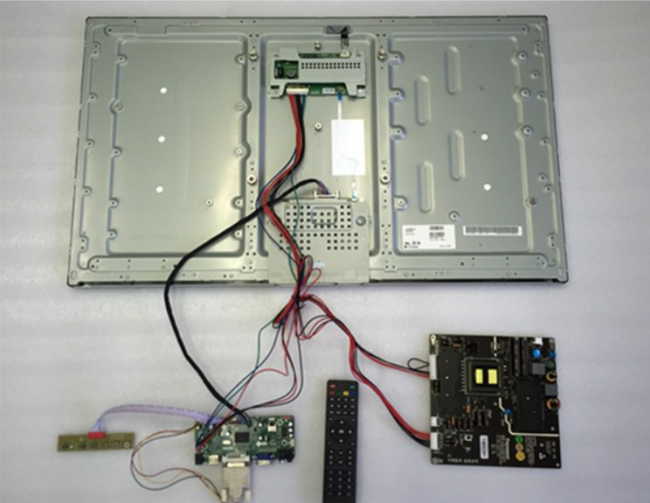

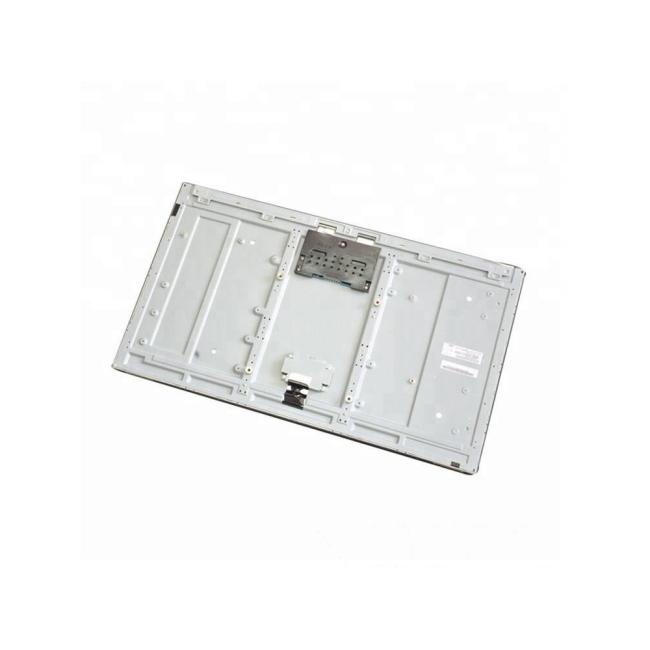

Detail images

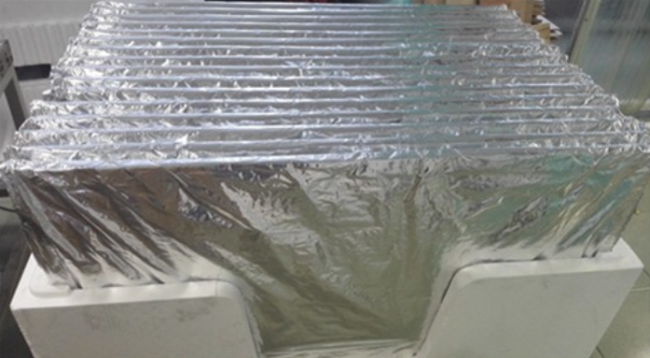

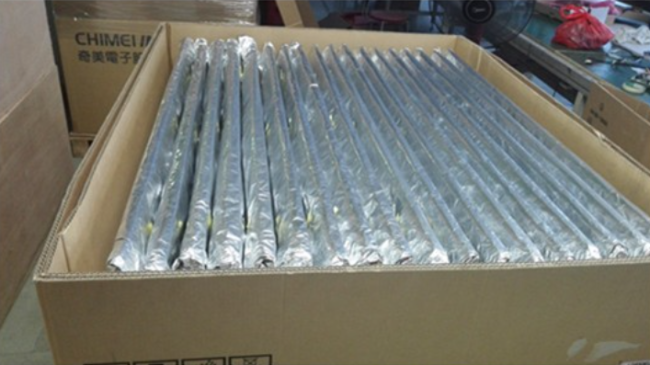

Packaging
