Multitouch Infrared Touch Monitor
Multi-touch 23.8 inch Infrared touchscreen monitor High brightness LCD display touch monitor
Infrared Touch screen monitor Feature:
· Industrial Desgin With Excellent Durablity
· IR touch Technology Multi Touch 2-10 Touch Points
· 3MM Enhanced Glass With Vandal Proof Resistance
· High Light Transmission Clear Glass
· Easy to Use:Plug and Works on Windows/Linux/(Android)
· Perfect Solutions For Use In Public
· VESA Mounting and Rear Mounting
· OEM/ODM& Customized Option: Brightness/Computer Integrated Inside/Etc
· Factory Competitive Price & Fast Delivery
Our advantage
1.Infrared multi touch frame ,supports 10,20,32,64 precise touch points ,Driver free
2.USB plug and play,Sizes from 15" to 800" (4:3 ,16:9, 16:10)
3.Custom Sizes Available,Easy to Install
4.Waterproof optional,High Stability / Reliability
5.Extremely Durable / Scratch Resistant
6.Compatible with Win7, Win8, Win10, Android, Linux system
7.Simple calibration
Functionalities:
1. Stable operation
2. Accurate Touch Response
3. Durable
4. Scratch-resistant glass sur face
5. Anti-glare
6. Vandal-Proof (Tempered glass
7.superior Image Clarity resolution
Specification:
| General | |
| Model | COT238-IPK03 |
| Series | Dust-proof and metal frame |
| LCD Type | 23.8”Active matrix TFT-LCD |
| Video Input | VGA HDMI and DVI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick |
| Input (line) voltage: 100-240 VAC, 50-60 Hz | |
| Output voltage/current: 12 volts at 4 amps max | |
| Mount Interface | 1)VESA 75mm and 100mm |
| 2)Mount bracket, horizontal or vertical | |
| LCD Specification | |
| Active Area(mm) | 527.04 × 296.46 mm |
| Resolution | 1920×1080@60Hz |
| Dot Pitch(mm) | 0.2745×0.2745 mm |
| Nominal Input Voltage VDD | +5V(Typ) |
| Viewing angle (v/h) | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast | 1900/5/4 0:01 |
| Luminance(cd/m2) | 250 |
| Response Time(Rising/Falling) | 9s/6s |
| Support Color | 10ms/16ms |
| Backlight MTBF(hr) | 16.7M colors |
| Touchscreen Specification | |
| Type | Cjtouch Infrared(IR) touch screen |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Product Picture

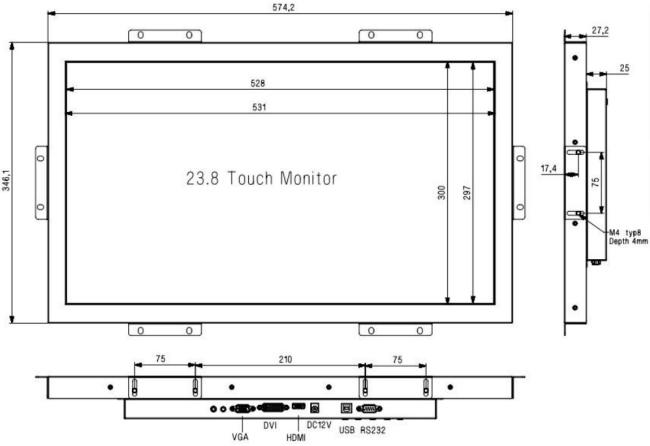

Drawing :
