ODM Interactive IR Touch Screen Panel , 43Inch Antiglare 10 Point Touch Screen
Interactive ir touch monitor 43 inch Win 7 and 10 10 points ir touch screen monitor
This CJTOUCH Infrared IR touch monitor is Wall mount touch monitors, Open Frame Touch monitors, Interactive Digital Signage,it is cost-effective touch solution which is designed for different Kiosks, ATM,Interactive digital, Transportation etc, and Public environments: Hotel lobbies, Office buildings, Auto dealerships, Bank, Gaming casinos, Healthcare waiting rooms, Retail stores and train stations, Industrial Control, Education, Artificial Intelligence, etc.
Size with 32" 43" 49" 55" 75" 86" 98" optional, indoor or outdoor using optional
Infrared Touch screen monitor Feature:
|
Economy choice, Reliable quality, Easy operation Custom Sizes Available,Easy to Install |
On-screen display (OSD) |
| Supreb cosmetic, slim housing | FHD 1980 x 1020 Display |
| nfrared multi touch frame ,supports 10,20,40 precise touch points ,Driver free | Optional VESA 100mm x 100mm, 200mm x 200mm back bracket option |
| Video Input VGA,DVI,HDMI options | Anti-vandal 4mm Physical tempering glass |
|
Industrial Desgin With Excellent Durablity Extremely Durable / Scratch Resistant |
Easy to Use:Plug and play Compatible with Win7, Win8, Win10, Android, Linux system |
|
Perfect Solutions For Use In Public Waterproof optional,High Stability / Reliability |
OEM/ODM Customized Option: Brightness/Computer Integrated Inside/Etc |
| Factory Competitive Price | Fast Delivery |
Functionalities:
1. Stable operation
2. Accurate Touch Response
3. Durable
4. Scratch-resistant glass sur face
5. Anti-glare
6. Vandal-Proof (Tempered glass
7.superior Image Clarity resolution
Specification:
| Model No. | COT430-IPK03 | |||
| Series | OT | |||
| Structure | Metal-cased Open frame and Black metal Dust-proof | |||
| Front Bezel | ||||
| LCD Type | 43.0” a-Si TFT-LCD | |||
| Display Size | 43”(diagonal) | |||
| Suggested Resolution | 1920×1080 | |||
| Support Colors | 16.7M | |||
| Brightness(Typ.) | 450cd/㎡ | |||
| Response Time(Typ.) | 8ms | |||
| Viewing Angle (Typ.at CR＞10)) |
Horizontal(left/right) | 89°/89° | ||
| Vertical(up/down) | 89°/89° | |||
| Contrast Ratio(Typ.) | 1300:01:00 | |||
| Video Input | 1. VGA 2.DVI 3.HDMI | |||
| Power Supply | AC100V～240V,50/60Hz | |||
| Environment | Operating Temp. | 0～50°C | ||
| Storage Temp. | -20～60°C | |||
| Operating RH: | 10%～90% | |||
| Storage RH: | 10%～90% | |||
| MTBF | 50,000 Hours | |||
| LCD Back light Life(Typ.) | 50,000 Hours | |||
| Power Consumption | 200W Max. | |||
| OSD Control | Buttons | AV/TV,UP,DOWN,RIGHT,LEFT,MENU,POWER | ||
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |||
| Touch screen Type | CJtouch 43” IR touch screen with 10points touch, | |||
| Touch System Interface | USB | |||

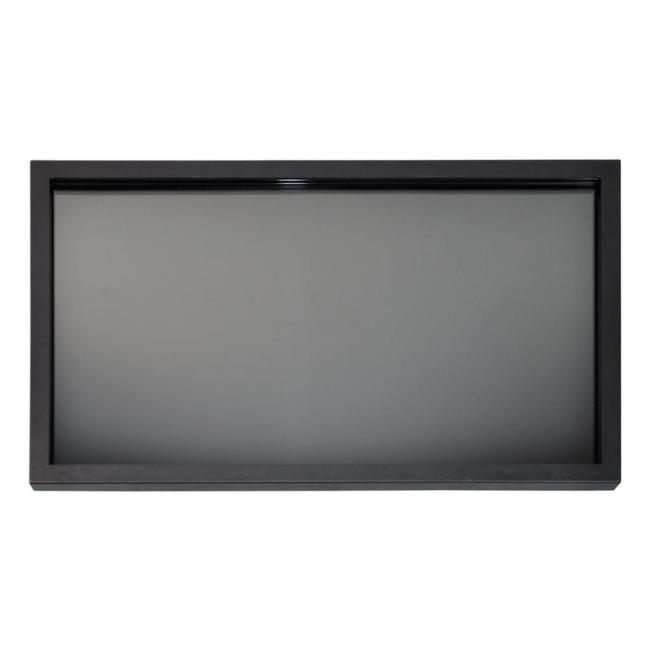

Product Picture
Drawing :
