ODM Dustproof Infrared Touch Monitor Screen Multi Touch Anti Vandal
40" infrared multi touch screen panel monitor ir touch screen frame touch screen monitor
CJTOUCH has Infrared IR touch monitor Size with 32" 43" 49" 55" 75" 86" 98" optional, indoor or outdoor using optional
This touch monitor is Wall mount touch monitors, Open Frame Touch monitors, Interactive Digital Signage
Public environments: Hotel lobbies, Office buildings, Auto dealerships, Bank, Gaming casinos, Healthcare waiting rooms, Retail stores and train stations, Industrial Control, Education, Artificial Intelligence, etc.
It is cost-effective touch solution which is designed for different Kiosks, ATM,Interactive digital, Transportation etc
Infrared Touch screen monitor Feature:
|
Economy choice, Reliable quality, Easy operation Custom Sizes Available,Easy to Install |
On-screen display (OSD) |
| Supreb cosmetic, slim housing | FHD 1980 x 1020 Display |
| nfrared multi touch frame ,supports 10,20,40 precise touch points ,Driver free | Optional VESA 100mm x 100mm, 200mm x 200mm back bracket option |
| Video Input VGA,DVI,HDMI options | Anti-vandal 4mm Physical tempering glass |
|
Industrial Desgin With Excellent Durablity Extremely Durable / Scratch Resistant |
Easy to Use:Plug and play Compatible with Win7, Win8, Win10, Android, Linux system |
|
Perfect Solutions For Use In Public Waterproof optional,High Stability / Reliability |
OEM/ODM Customized Option: Brightness/Computer Integrated Inside/Etc |
| Factory Competitive Price | Fast Delivery |
Functionalities:
1. Without driver ,supporting plug and play.
2. Fast response(less than 16 ms), no blind area, breakpoints, jump points, pause and other undesirable phenomena
3. Double-point write with peace,precise multi-point touching.
4. Scratch-resistant glass sur face
5. Anti-glare Anti sunlight optional
6. Vandal-Proof (4mm Tempered glass with high light transmittance and true color rendition.
7. Superior Image Clarity resolution
8. No touching tools,no special touching pen is required ,only your finger.
Specification:
| Description | 40" Infared 10point FHD Open Frame Touch Monitor |
| Case/Bezel Color | Black |
| Display Size | 40” 16:9 Active Matrix TFT LCD |
| Optimal Resolution | 1920X1080 |
| Color Depth | 16.7M/1.07B |
| Response Time | 4ms (Typically) |
| Brightness | 400 cd/m2 |
| Contrast Ratio | 1000:1 (Typical) |
| Viewing Angle(CR≥10) | Horizontal: ±89°or 178°total Vertical: ±89°or 178°total |
| Video Input Format | VGA, DVI, HDMI Option |
| Input Video Signal Connector | VGA, DVI, HDMI Option |
| On Screen Display(OSD) | Controls(back):On/Off, Menu, Left, Right, Auto |
| Backlight Lamp Life | 50000hrs |
| Touch Technology | CJTouch Infrared 10Point Multitouch Touch Panel |
| Touch Point | Ture 10 point multitouch |
| Touch Port Interface | USB port |
| Protection Level | 4mm Tempered Anti-Vandal glass(UL60950) |
| Support OS | HID-Mode: Windows7/8/10, Linux, Android, Mac etc. |
| Mounting Options | VESA Mount 300mm , Back bracket option |
| Power Supply | External Adapter: 100-240VAC, 50-60Hz |
| Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ |
| Humidity Range(no condensing) | Operating: 20%-80%; Storage: 10%-90% |
| Warranty | 1year |
| Agency Approvals | CCC, FCC, CE, RoHS |
Product Picture

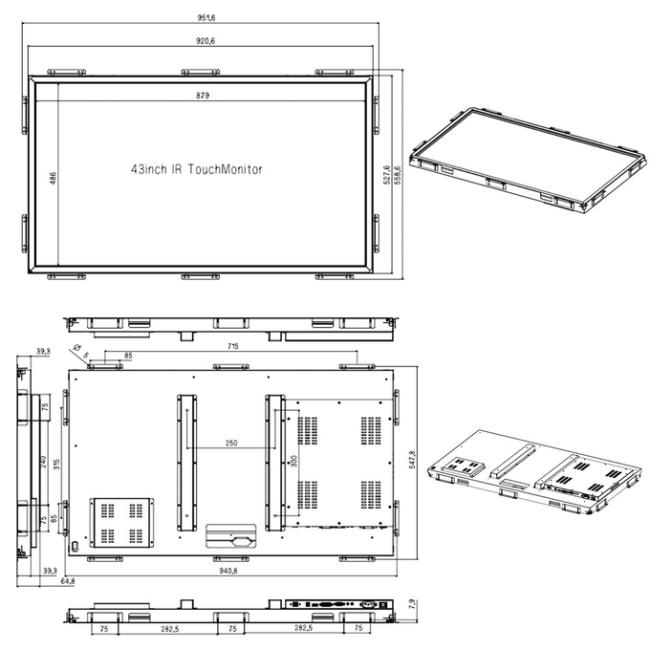

Drawing :
