Wall Mount Infrared IR Multi Touch Screen Monitor Brightness 250cd/M2 Dustproof
Price:
Negotiable
MOQ:
10 pcs
Delivery Time:
2-3days
Brand:
CJTOUCH
Product Description
19 inch high definition Interface infrared touchscreen IR openframe touch screen LCD monitor
Introduction
This CJTOUCH Infrared IR touch monitor is Wall mount touch monitors, Open Frame Touch monitors, Interactive Digital Signage,it is cost-effective touch solution which is designed for different Kiosks, ATM,Interactive digital, Transportation etc, and Public environments: Hotel lobbies, Office buildings, Auto dealerships, Bank, Gaming casinos, Healthcare waiting rooms, Retail stores and train stations, Industrial Control, Education, Artificial Intelligence, etc.
Infrared Touch screen monitor Feature:
- 19" industrial grade wide temperature LCD panel, 1280x1024 5:4
- Touch frameTechnology Multi Touch 5 Touch Points or 10 Touch Points
- High brightness 1000 nits sunlight readable
- Robust and durable, all-metal enclosure, sealing design, full IP67 waterproof
- High performance mainboard, 7x24 continuous operation
- Waterproof IR touch screen Size with 15" 17" 19" 21.5" optional
- Surface IP65 waterproof level.
- High brightness of 500~1500 cd/m2 is optional
- Indoor or outdoor using optional
- Industrial Desgin With Excellent Durablity
- 3mm High Light Transmission Clear Glass ,Vandalproof
- Easy to Use:Plug and Works on Wins/Lin-ux/Androi-d
- Perfect Solutions For Use In Public
- VESA Mounting and Rear Mounting
- 12 Months Warranty
- OEM/ODM& Customized Option: Brightness/Computer Integrated Inside, etc
- Factory Competitive Price & Fast Delivery
Specification:
| Display Specifications | ||||
| Characteristic | Value | Comment | ||
| LCD Size/Type | 19” SXGA Color TFT-LCD | |||
| Aspect Ratio | 5:04 | |||
| Active Area | Horizontal | 376.32 mm | ||
| Vertical | 301.06 mm | |||
| Pixel | Horizontal | 0.294 | ||
| Vertical | 0.294 | |||
| Panel Resolution | 1280×1024 (60 Hz) | Native | ||
| Display Color | 16.7 Million | 6-bits + Hi-FRC | ||
| Contrast Ratio | 1000:01:00 | Typical | ||
| Brightness | 250 nits | Typical | ||
| Response Time | 3.6 ms | Typical | ||
| Viewing Angle | Horizontal | 170 | Typical | |
| Vertical | 160 | |||
| Video Signal Input | VGA and DVI and HDMI optional | |||
| Physical Specifications | ||||
| Dimensions | Width | 417.6 mm | ||
| Height | 342.5 mm | |||
| Depth | 42.5 mm | |||
| Weight | Net Weight 7 kgs | Shipping Weight 9 kgs | ||
| Box Dimensions | Length | 500 mm | ||
| Width | 450 mm | |||
| Height | 200 mm | |||
| Electrical Specifications | ||||
| Power Supply | DC 12V 4A | Power Adapter Included | ||
| 100-240 VAC, 50-60 Hz | Plug Input | |||
| Power Consumption | Operating | 38 W | Typical | |
| Sleep | 3 W | |||
| Off | 1 W | |||
| Touch Screen Specifications | ||||
| Touch Technology | Infrared 4 touch point | |||
| Touch Interface | USB (Type B) | |||
| Controller Model Number | HID plug and play | |||
| OS Supported | Plug and Play | Windows All (HID) ,Linux (HID) (Android Option) | ||
| Driver | Calibration Tool Offered | |||
| Environmental Specifications | ||||
| Condition | Specification | |||
| Temperature | Operating | -10°C ~+ 50°C | ||
| Storage | -20°C ~ +70°C | |||
| Humidity | Operating | 20% ~ 80% | ||
| Storage | 10% ~ 90% | |||
| MTBF | 50000 Hrs at 25°C | |||

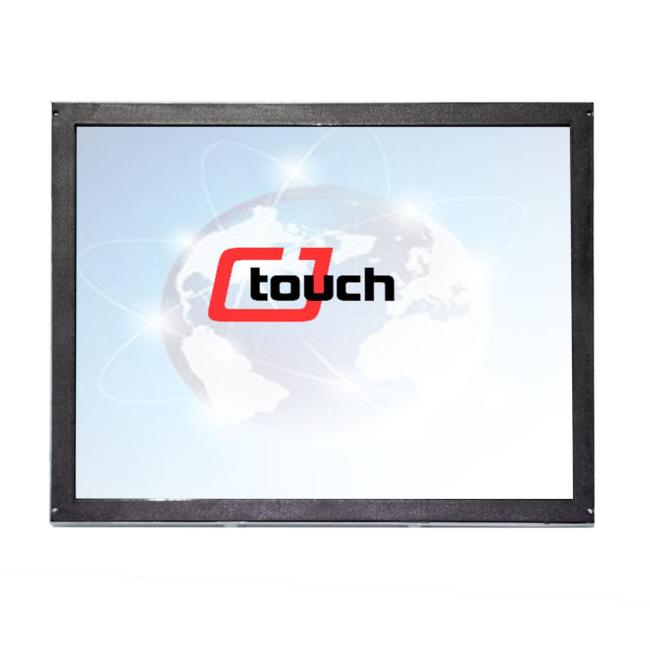

Product Picture
Drawing :
