19.5Inch PCAP Touch Monitor TFT LCD Screen With Mount Bracket
19.5 inch Flat Screen multi-touch PCAP Touch Monitor with industrial tft lcd mount bracket provided
Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
Surface Acoustic Wave (SAW) touch technology
Infrared touch technology
Projected Infrared Touch technology
19.5 inch PCAP touch monitor Features:
- Using new industrial TFT LCD screen
- Projected capacitive touch screen with 10-point tempered cover lens option.
- The screen is full flat with IP65 waterproof resistance.
- The material is Aluminum alloy.
- Satisfactory after-sales service
19.5 inch Capacitive touch monitor specification :
| General | |
| Model | COT195-CFK03 |
| Series | Flat screen |
| LCD Type | 19.5 inch a-Si TFT-LCD |
| Video Input | VGA and DVI H-DMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply |
Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 437.2 × 239.6 mm (H×V) |
| Resolution | 1600(RGB)×900, HD+ |
| Dot Pitch(mm) | 0.0904×0.2626 mm (H×V) |
| Nominal Input Voltage | +3.3V(Typ) |
| Viewing angle (v/h) | 85/85/80/80 (Typ.)(CR≥10) |
| Contrast | 1000 : 1 (Typ.) |
| Luminance(cd/m2) | 250 (Typ.) |
| Response Time(Rising) | 3.8/1.2 (Typ.)(Tr/Td) ms |
| Support Color | 16.7M Colors |
| Backlight MTBF(hr) | Min30000 hrs |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 5/10points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
19.5 inch PCAP touch monitor drawing:

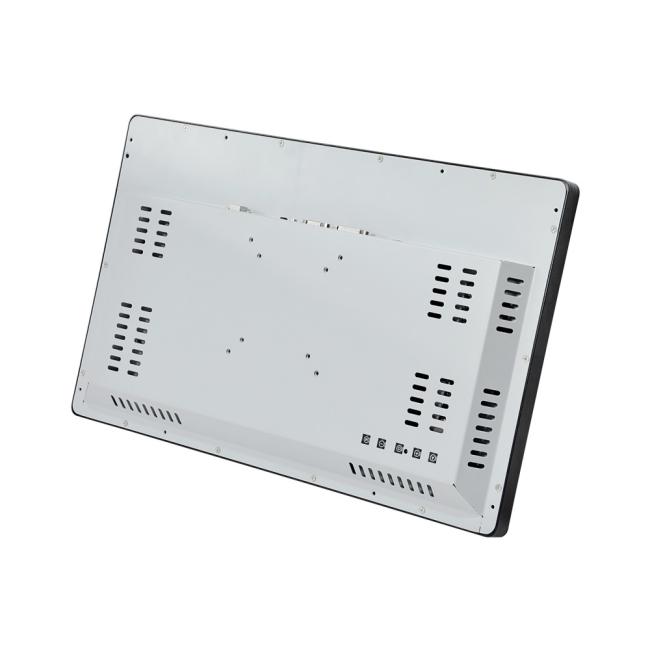

19.5 inch Capacitive display monitor pictures:
