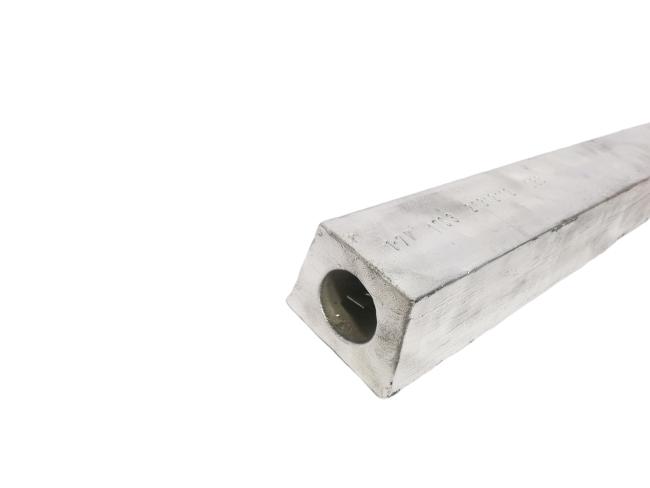

Trapezoid Magnesium - Based Cathodic Protection Magnesium Anode Size Customization
Trapezoid Magnesium - Based Cathodic Protection Magnesium Anode Size Customization
Introduction:
The magnesium anode we provide has a negative potential and generates a large amount of electricity per unit mass, which is an ideal sacrificial anode material. It is suitable for cathodic protection of metal structures in media such as soil, fresh water and sea water. The magnesium alloy sacrificial anode is produced according to the national standard GB/T17731-2004 "Magnesium Alloy Sacrificial Anode", which is used for the anode of the pipeline, and also conforms to SY/T0019-97 "Design Specification for Cathodic Protection of Buried Steel Pipeline Sacrificial Anode"
Parameters:
Chemical composition %
| Alloy | Al (max) | Mn | Si (max) | Cu (max) | Ni (max) | Fe (max) | Other impurity (each) | Total impurities |
| (max) | (max) | |||||||
| Mg- Mn | 0.01 | 0.50-1.30 | 0.05 | 0.005 | 0.001 | 0.03 | 0.05 | 0.3 |
The electrochemical performance
| Open voltage | Closed voltage | Actual capacity | Efficiency |
| 1.70-1.75 | 1.58-1.62 | 1230 min | 50 min |
Features:
Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.
Applications:
Cathodic protection is often used to mitigate corrosion damage to active metal surfaces. It is used worldwide to protect pipelines, water treatment plants, above and submerged storage tanks, ships and hulls, offshore production platforms, concrete structures and rebar in docks, among others.
Photos:
