D Type Magnesium Sacrificial Anodes V1.75 Magnesium Cathodic Protection
High Potential Magnesium Sacrificial Anodes Used To Protect Onshore Pipelines
Introduction:
Because magnesium alloy has a more negative standard potential compared with other metals , they are widely used in the field of cathodic protection.
The purity of the magnesium ingots used in better than that specified in the industrial standards , therefore , our sacrificial magnesium anodes possess excellent electrochemical properties .
Our products have the following specifications:
- "D" anode
- "R" Cylindrical anode
- "S" anode
Specification:
| Electrochemical Properties of cast magnesium anodes | ||||
| Item | Open-circuit Voltage | Close-circuit Voltage | Actual capacitance | Current efficiency |
| (-V) | (-V) | (A.h/g) | (%) | |
| High Potential | 1.70-1.75 | 1.57-1.62 | ≥ 1.100 | ≥ 50 |
|
Low Potential (AZ63) |
1.50-1.55 | 1.45-1.50 | ≥ 1.105 | ≥ 50 |
| Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE) | ||||
Features:
Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.
Applications:
Magnesium anodes are effective and affordable in fighting corrosion. Magnesium anodes play a key role in protecting steel structures in salt and fresh water, including:
- Hull and various other boats
- Water tank
- Piers, piers and piers
- pipeline
- heat exchanger
- travel screen

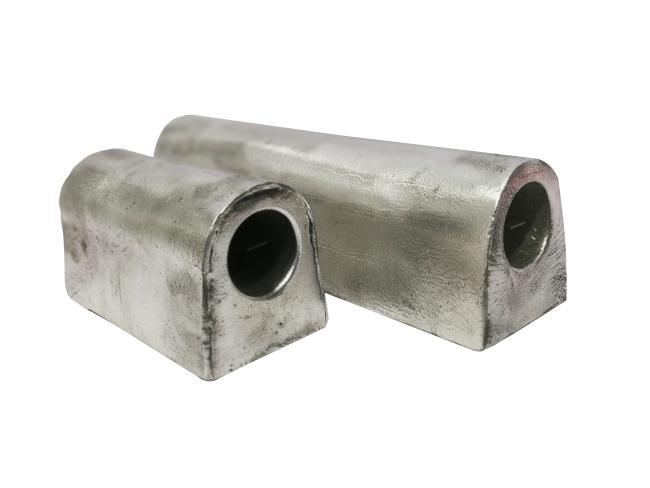

Photos:
FAQ:
Q : Can I add my logo on the boxes/cartons?
A : Yes,OEM and ODM are available from us.
Q : What are the benefits of being a distributor ?
A : Special discount Marketing protection.
Q : How does your factory control the quality of your products?
A : 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.
Q : Can we mix items in one 20ft container?
A : Yes.
Q : Can I have a visit to your factory before the order?
A : Sure,welcome your visit of factory.
Q : What's the necessary parameters to get the accurate quote?
A : Material chemical composition, anode size, cable and other accessaries information.
