Introduction:
The magnesium anode we provide has a negative potential and a large amount of electricity per unit mass, which is an ideal sacrificial anode material. It is suitable for cathodic protection of metal structures in media such as soil, fresh water and sea water. The magnesium alloy sacrificial anode is produced according to the national standard GB/T17731-2004 "Magnesium Alloy Sacrificial Anode", which is used for the anode of the pipeline, and also conforms to SY/T0019-97 "Design Specification for Cathodic Protection of Buried Steel Pipeline Sacrificial Anode"
Parameters:
| Type | Weight(kg) | Width(mm) | Hight(mm) | Length(mm) | Insert |
| 9D2-1 | 4.1 | 63.5 | 63.5 | 669.9 | Strip |
| 9D2-2 | 4.1 | 69.9 | 76.2 | 560 | Strip |
| 14D2-1 | 6.35 | 63.5 | 63.5 | 1054 | Strip |
| 14D2-2 | 6.35 | 69.9 | 76.2 | 850.9 | Strip |
| 20D2-1 | 9.1 | 63.5 | 63.5 | 1505 | Strip |
| 20D2-2 | 9.1 | 69.9 | 76.2 | 1270 | Strip |
| 9D3 | 4.1 | 88.9 | 95.25 | 258.8 | Strip |
| 17D3 | 7.7 | 88.9 | 95.25 | 657.2 | Strip |
| 32D5 | 14.5 | 139.7 | 146.05 | 523.9 | Strip |
| 48D5 | 21.8 | 139.7 | 146.05 | 765.2 | Strip |
Advantage:
A: The one-time investment cost is low, and there is basically no need to pay maintenance costs during operation
B: The utilization rate of the protection current is high, and no over-protection will occur
C: No interference effect on adjacent underground metal facilities, suitable for plant area and long-distance pipeline without power supply, as well as small-scale decentralized pipeline protection
D: It has the function of both grounding and protection
E: The construction technology is simple and usually does not require special professional maintenance and management.
Applications:
Magnesium sacrificial anode can not only be used for cathodic protection of machinery and equipment in fresh water and seawater, port facilities, ships, offshore drilling, etc., but also can be used to protect steel structures immersed in seawater, such as ship hulls and other steel and aluminum Alloy materials, corrosion-resistant parts such as main submarine valves, cooling circulation systems, seawater inlets, pipes, filters, coolers, etc., which affect the safety of ship navigation.

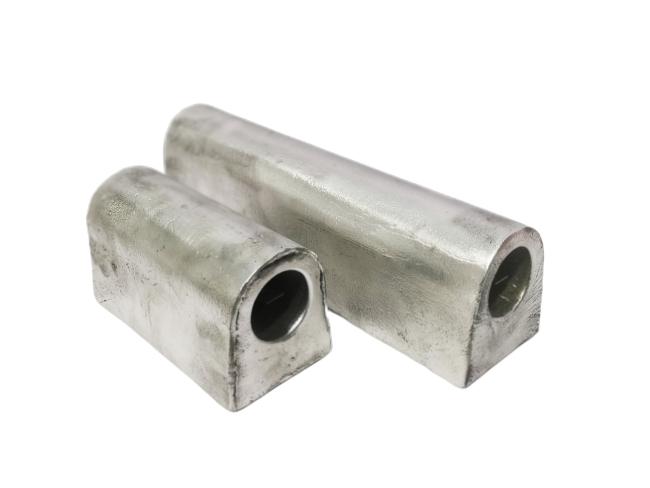

Photos:
FAQ:
Q : Can I add my logo on the boxes/cartons?
A : Yes,OEM and ODM are available from us.
Q : What are the benefits of being a distributor ?
A : Special discount Marketing protection.
Q : How does your factory control the quality of your products?
A : 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.
Q : Can we mix items in one 20ft container?
A : Yes.
Q : Can I have a visit to your factory before the order?
A : Sure,welcome your visit of factory.
Q : What are the necessary parameters to get an accurate quote?
A : Material chemical composition, anode size, cable and other accessaries information.
