Introduction:
Magnesium anode is an anti-corrosion material specially used for cathodic protection engineering. It has extremely high electrochemical performance. Magnesium anode has uniform consumption, long service life and large power generation. It is suitable for cathodic maintenance of metal structures in soil and fresh water media. In the maintenance process of the cathode, the magnesium anode is consumed evenly, so that it has a long service life.
Parameters:
Our products have the following specifications:
- " D " anode
- " R " Cylindrical anode
- " S " anode
| Type | Weight(kg) | Width(mm) | Height(mm) | Length(mm) | Insert |
| 9D2-1 | 4.1 | 63.5 | 63.5 | 669.9 | Strip |
| 9D2-2 | 4.1 | 69.9 | 76.2 | 560 | Strip |
| 14D2-1 | 6.35 | 63.5 | 63.5 | 1054 | Strip |
| 14D2-2 | 6.35 | 69.9 | 76.2 | 850.9 | Strip |
| 20D2-1 | 9.1 | 63.5 | 63.5 | 1505 | Strip |
| 20D2-2 | 9.1 | 69.9 | 76.2 | 1270 | Strip |
| 9D3 | 4.1 | 88.9 | 95.25 | 258.8 | Strip |
| 17D3 | 7.7 | 88.9 | 95.25 | 657.2 | Strip |
| 32D5 | 14.5 | 139.7 | 146.05 | 523.9 | Strip |
| 48D5 | 21.8 | 139.7 | 146.05 | 765.2 | Strip |
| Type | N.W.(kg) | G.W.(kg) | DIA(mm) | Length(mm) | Length(mm) | Insert |
| 1.7v | 1.5v | Dimension | ||||
| R36 | 3.6 | 3.7 | 114 | 202 | 193 | 25x2x190 |
| R41 | 4.1 | 4.2 | 114 | 230 | 220 | 25x2x190 |
| R50 | 5.0 | 5.1 | 114 | 280 | 268 | 25x2x195 |
| R77 | 7.7 | 7.8 | 114 | 431 | 412 | 25x2x332 |
| R100 | 10.0 | 10.2 | 114 | 560 | 536 | 25x2x428 |
| R145 | 14.5 | 14.7 | 146 | 494 | 492 | 25x2x428 |
| R227 | 22.7 | 22.9 | 178 | 520 | 497 | 25x2x428 |
| R274(I) | 27.3 | 27.6 | 178 | 630 | 618 | 25x3x550 |
| R274(II) | 27.3 | 28.2 | 114 | 1528 | 1462 | 25x3x190 |
| Type | N.W.(kg) | G.W.(kg) | Top Width | Bottom Width | Length | Insert |
| (mm) | (mm) | (mm) | ||||
| 3S3 | 1.36 | 1.4 | 76 | 76 | 114 | Strip |
| 5S3 | 2.27 | 2.3 | 76 | 76 | 191 | Strip |
| 9S2 | 4.1 | 4.2 | 71.1 | 50.8 | 711 | Strip |
| 9S3 | 4.1 | 4.2 | 76 | 76 | 343 | Strip |
| 17S3 | 7.7 | 7.8 | 96.5 | 76.2 | 650 | Strip |
| 17S4 | 7.7 | 7.8 | 102 | 102 | 432 | Strip |
| 32S5 | 14.515 | 14.62 | 127 | 127 | 533 | Strip |
| 48S5 | 21.77 | 21.87 | 127 | 127 | 800 | Strip |
Features:
Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.
Applications:
Cathodic protection is often used to mitigate corrosion damage to active metal surfaces. It is used worldwide to protect pipelines, water treatment plants, above and submerged storage tanks, ships and hulls, offshore production platforms, concrete structures and rebar in docks, among others.

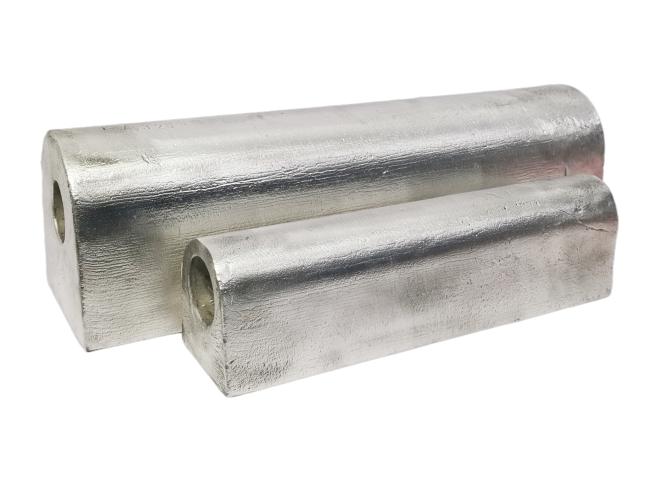

Photos:
