Uniform Anode Consumption Magnesium Anode Cathodic Protection
Uniform Anode Consumption Magnesium Anode Cathodic Protection
Introduction:
Extremely high electrochemical performance, uniform anode consumption, long life, large power generation per unit mass, is an ideal sacrificial anode material, suitable for soil. Cathodic protection of metal structures in freshwater media. During the cathodic protection process, the anode is consumed evenly, so the service life is longer. In the actual use process, the actual measurement working potential is between -1.8-----1.85v, so the protection effect on the target structure is more obvious
Parameters:
| Type | Weight(kg) | Width(mm) | Hight(mm) | Length(mm) | Insert |
| 9D2-1 | 4.1 | 63.5 | 63.5 | 669.9 | Strip |
| 9D2-2 | 4.1 | 69.9 | 76.2 | 560 | Strip |
| 14D2-1 | 6.35 | 63.5 | 63.5 | 1054 | Strip |
| 14D2-2 | 6.35 | 69.9 | 76.2 | 850.9 | Strip |
| 20D2-1 | 9.1 | 63.5 | 63.5 | 1505 | Strip |
| 20D2-2 | 9.1 | 69.9 | 76.2 | 1270 | Strip |
| 9D3 | 4.1 | 88.9 | 95.25 | 258.8 | Strip |
| 17D3 | 7.7 | 88.9 | 95.25 | 657.2 | Strip |
| 32D5 | 14.5 | 139.7 | 146.05 | 523.9 | Strip |
| 48D5 | 21.8 | 139.7 | 146.05 | 765.2 | Strip |
Advantage:
The magnesium strip sacrificial anode in the magnesium anode material is flat in shape, easy to bend, and the length can be adjusted freely. Construction costs are also relatively low and, importantly, no interference with the external environment occurs.
Applications:
Sacrificial anodes are used to protect ship hulls, water heaters, pipes, distribution systems, above-ground storage tanks, underground storage tanks, and oil refineries, among others. The application will depend heavily on the chemical and mineral environment (whether soil or water), so the anodes in this type of cathodic protection system must be regularly inspected and replaced as they reach the point of depletion.

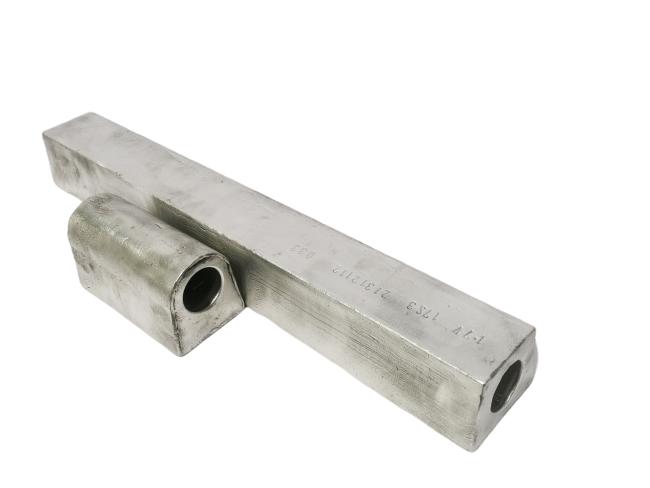

Photos:
FAQ:
Q : Can I add my logo on the boxes/cartons?
A : Yes, OEM and ODM are available from us.
Q : What are the benefits of being a distributor?
A : Special discount Marketing protection.
Q : How does your factory control the quality of your products?
A : 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.
Q : Can we mix items in one 20ft container?
A : Yes.
Q : Can I have a visit to your factory before the order?
A : Sure, welcome your visit of factory.
Q : What are the necessary parameters to get an accurate quote?
A : Material chemical composition, anode size, cable and other accessaries information.
