14D2-2 Magnesium Sacrificial Anodes 32lb Magnesium Negative Potential
Negative Potential Magnesium Sacrificial Anodes Prevent Galvanic Corrosion
Introduction:
Galvanic corrosion occurs between two or more metals and there is an electrochemical reaction. For this process to occur, the metals involved need to differ in chemical stability, with one metal being more chemically active than the other metal involving both metals. Galvanic corrosion occurs when these metals come into contact with each other and are immersed in any liquid that has conductive properties. Saltwater, heavily polluted freshwater, or freshwater with a high mineral content are extremely conductive and can accelerate galvanic corrosion in these waters.
Magnesium anodes are effective and affordable in fighting corrosion. Magnesium anodes play a key role in protecting steel structures in salt and fresh water.
Specification:
| Type | Weight(kg) | Width(mm) | Hight(mm) | Length(mm) | Insert |
| 9D2-1 | 4.1 | 63.5 | 63.5 | 669.9 | Strip |
| 9D2-2 | 4.1 | 69.9 | 76.2 | 560 | Strip |
| 14D2-1 | 6.35 | 63.5 | 63.5 | 1054 | Strip |
| 14D2-2 | 6.35 | 69.9 | 76.2 | 850.9 | Strip |
| 20D2-1 | 9.1 | 63.5 | 63.5 | 1505 | Strip |
| 20D2-2 | 9.1 | 69.9 | 76.2 | 1270 | Strip |
| 9D3 | 4.1 | 88.9 | 95.25 | 258.8 | Strip |
| 17D3 | 7.7 | 88.9 | 95.25 | 657.2 | Strip |
| 32D5 | 14.5 | 139.7 | 146.05 | 523.9 | Strip |
| 48D5 | 21.8 | 139.7 | 146.05 | 765.2 | Strip |
Features:
Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.
Applications:
Magnesium anodes are effective and affordable in fighting corrosion. Magnesium anodes play a critical role in protecting steel structures in salt and fresh water. include:
- Hulls and various other vessels
- water storage tank
- Docks, piers and piers
- pipeline
- heat exchanger
- travel screen

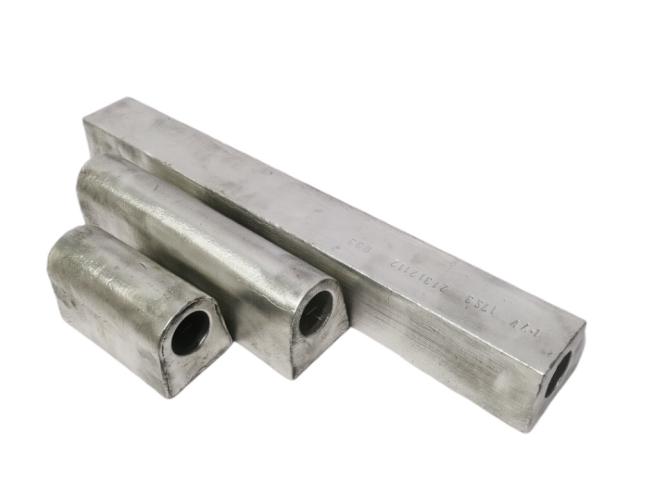

Photos:
FAQ:
Q : Can I add my logo on the boxes/cartons?
A : Yes,OEM and ODM are available from us.
Q : What are the benefits of being a distributor ?
A : Special discount Marketing protection.
Q : How does your factory control the quality of your products?
A : 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.
Q : Can we mix items in one 20ft container?
A : Yes.
Q : Can I have a visit to your factory before the order?
A : Sure,welcome your visit of factory.
Q : What's the necessary parameters to get the accurate quote?
A : Material chemical composition, anode size, cable and other accessaries information.
