ASTM Anti Corrosion Anode Water Heater 20D2-2 For Smelter
No Need For External DC Power Magnesium Anode Cathodic Protection
Introduction:
Due to the high chemical activity of magnesium alloys, strong self-corrosion, and no dense protective film on the surface, the current efficiency of magnesium anodes is much lower than that of aluminum and zinc anodes, usually around 50%. The outstanding advantages of magnesium anode materials are low density, large theoretical capacitance, negative potential, low polarizability, and high driving voltage (>0.6 V) to steel.
Parameters:
| Type | Weight(kg) | Width(mm) | Hight(mm) | Length(mm) | Insert |
| 9D2-1 | 4.1 | 63.5 | 63.5 | 669.9 | Strip |
| 9D2-2 | 4.1 | 69.9 | 76.2 | 560 | Strip |
| 14D2-1 | 6.35 | 63.5 | 63.5 | 1054 | Strip |
| 14D2-2 | 6.35 | 69.9 | 76.2 | 850.9 | Strip |
| 20D2-1 | 9.1 | 63.5 | 63.5 | 1505 | Strip |
| 20D2-2 | 9.1 | 69.9 | 76.2 | 1270 | Strip |
| 9D3 | 4.1 | 88.9 | 95.25 | 258.8 | Strip |
| 17D3 | 7.7 | 88.9 | 95.25 | 657.2 | Strip |
| 32D5 | 14.5 | 139.7 | 146.05 | 523.9 | Strip |
| 48D5 | 21.8 | 139.7 | 146.05 | 765.2 | Strip |
Features:
The magnesium strip sacrificial anode in the magnesium anode material is flat in shape, easy to bend, and the length can be adjusted freely. Construction costs are also relatively low and, importantly, no interference with the external environment occurs.
Applications:
- Metal anticorrosion
- Corrosion Protection
- cathodic protection
- Oil pipeline
- Natural Gas Pipeline
- natural gas storage tank
- smelter
- Gas station
- water heater
- heat exchanger
- Evaporator
- boiler

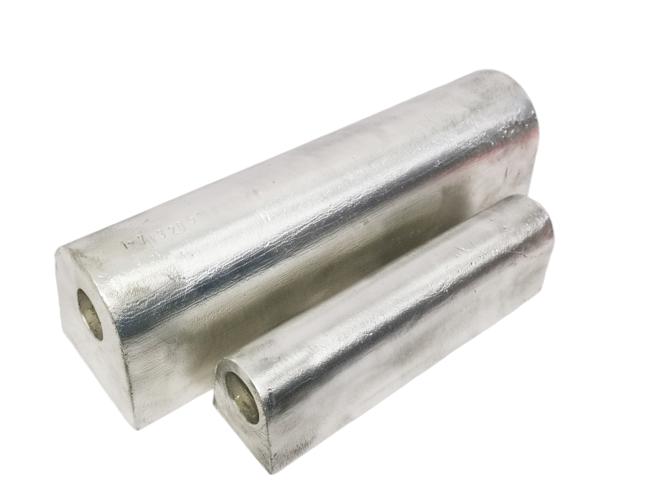

Photos:
