High Potential Galvanic Anode In Seawater
Automatic Operation Magnesium Sacrificial Anode Cathodic Protection For Marine Vessel
Introduction:
Of all the materials used for sacrificial anodes, magnesium has the highest driving voltage. Magnesium has a very low precious metal content and is therefore prone to corrosion. Therefore, if it is placed in a system that uses a lot of water, it will move corrosion away from other components.
Magnesium sacrificial anode can not only be used for cathodic protection of machinery and equipment in fresh water and seawater, port facilities, ships, offshore drilling, etc., but also can be used to protect steel structures immersed in seawater, such as ship hulls and other steel and aluminum Alloy materials, main submarine valves, cooling circulation systems, seawater inlets, pipes, filters, coolers and other corrosion-resistant parts that affect the safety of ship navigation.
Features:
Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.
Parameters:
| Type | Weight(kg) | Width(mm) | Hight(mm) | Length(mm) | Insert |
| 9D2-1 | 4.1 | 63.5 | 63.5 | 669.9 | Strip |
| 9D2-2 | 4.1 | 69.9 | 76.2 | 560 | Strip |
| 14D2-1 | 6.35 | 63.5 | 63.5 | 1054 | Strip |
| 14D2-2 | 6.35 | 69.9 | 76.2 | 850.9 | Strip |
| 20D2-1 | 9.1 | 63.5 | 63.5 | 1505 | Strip |
| 20D2-2 | 9.1 | 69.9 | 76.2 | 1270 | Strip |
| 9D3 | 4.1 | 88.9 | 95.25 | 258.8 | Strip |
| 17D3 | 7.7 | 88.9 | 95.25 | 657.2 | Strip |
| 32D5 | 14.5 | 139.7 | 146.05 | 523.9 | Strip |
| 48D5 | 21.8 | 139.7 | 146.05 | 765.2 | Strip |
Applications:
Magnesium sacrificial anode can not only be used for cathodic protection of machinery and equipment in fresh water and seawater, port facilities, ships, offshore drilling, etc., but also can be used to protect steel structures immersed in seawater, such as ship hulls and other steel and aluminum Alloy materials, corrosion-resistant parts such as main submarine valves, cooling circulation systems, seawater inlets, pipes, filters, coolers, etc., which affect the safety of ship navigation.

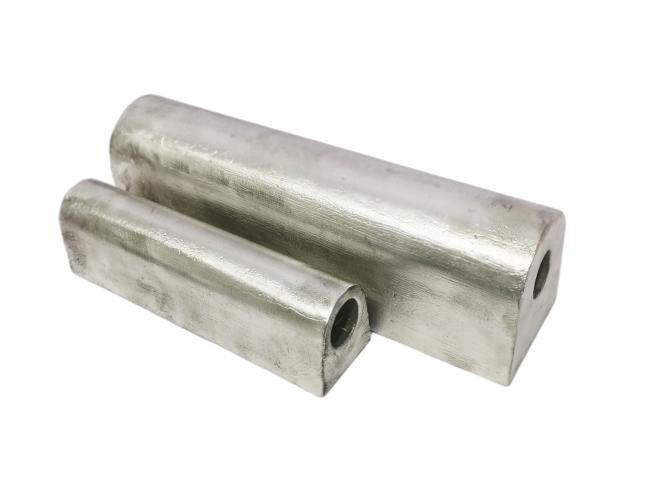

Photos:
FAQ:
Q : Can I add my logo on the boxes/cartons?
A : Yes,OEM and ODM are available from us.
Q : What are the benefits of being a distributor ?
A : Special discount Marketing protection.
Q : How does your factory control the quality of your products?
A : 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.
Q : Can we mix items in one 20ft container?
A : Yes.
Q : Can I have a visit to your factory before the order?
A : Sure,welcome your visit of factory.
Q : What's the necessary parameters to get the accurate quote?
A : Material chemical composition, anode size, cable and other accessaries information.
