1.36kg Magnesium Anodes Cathodic Protection System
High Chemical Activity High Potential Magnesium Alloys Anode For Oil Pipe
Introduction:
Typical pure magnesium anodes (purity greater than 99.95%) have been phased out due to their low current efficiency (only around 30%). Magnesium alloy has high chemical activity, strong self-corrosion, and no dense protective film is formed on the surface, so the current efficiency of magnesium alloy anode is usually about 50%. Mg-Mn sacrificial anodes are common binary high-potential alloys, in which the Mn element in the alloy can make the second phase distribution uniform, promote grain refinement, and improve its electrochemical performance.
Mg-Mn sacrificial anodes are characterized by large electricity generation per unit mass, high potential, small specific gravity, negative potential, high driving voltage for Fe, and low current efficiency, and are especially suitable for high resistivity media.
Chemical composition %:
| Alloy |
Al |
Mn |
Si |
Cu |
Ni |
Fe |
Other impurity(each) |
Total Impurities |
| Mg-Mn | 0.01 | 0.50-1.30 | 0.05 | 0.005 | 0.001 | 0.03 | 0.05 | 0.30 |
The electrochemical performance of:
|
Open voltage |
Closed voltage |
Actual capacity |
Efficiency |
| 1.70-1.75 | 1.58-1.62 | 1230min | 50min |
Features:
The main characteristics of high-potential magnesium alloy sacrificial anodes are large electricity per unit mass, high potential, small specific gravity, negative potential, high driving voltage to Fe, low current efficiency, etc., especially suitable for high resistivity media. When using magnesium alloy sacrificial anode, care should be taken to avoid collision with steel structure. American standard ASTM8431993 (2003) and Chinese standard GB/T177312004 both require the current efficiency of high-potential magnesium alloy sacrificial anodes to be higher than 50% and the potential higher than 1.77 V.
Application:
Applicable to anti-corrosion protection of the oil, gas, water supply and drainage pipelines, as well as the protection of harbor, ship, reservoir, gate and other projects in water.

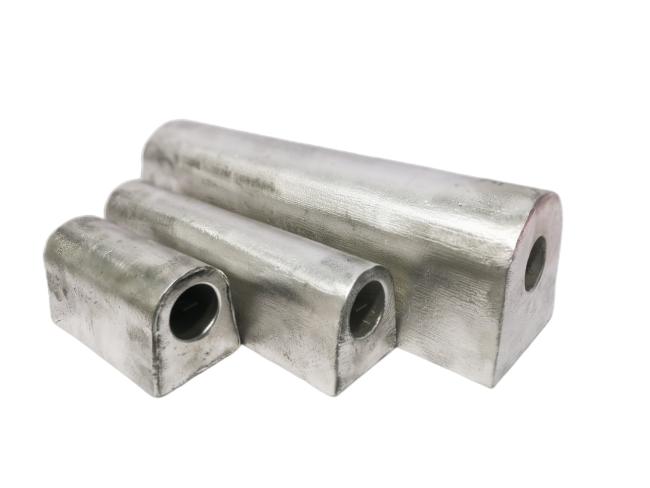

Photos:
FAQ:
Q : Can I add my logo on the boxes/cartons?
A : Yes,OEM and ODM are available from us.
Q : What are the benefits of being a distributor ?
A : Special discount Marketing protection.
Q : How does your factory control the quality of your products?
A : 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.
Q : Can we mix items in one 20ft container?
A : Yes.
Q : Can I have a visit to your factory before the order?
A : Sure,welcome your visit of factory.
Q : What's the necessary parameters to get the accurate quote?
A : Material chemical composition, anode size, cable and other accessaries information.
