High Purity Magnesium Anodes Cathodic Protection Corrosion Control 4.1kg
ODM Magnesium Anodes Cathodic Protection 4.1kg Magnesium For Boats Corrosion Control
Introduction:
Cathodic systems are often used to protect steel from corrosion. Corrosion is caused when two dissimilar metals are immersed in an electrolyte. This metallic conduction path between two dissimilar metals allows a pathway for free electrons to move from the more reactive metal (anode) to the less reactive metal (cathode).
Parameters:
Our products have the following specifications:
- " D " anode
- " R " Cylindrical anode
- " S " anode
Chemical composition %
| Alloy | Al (max) | Mn | Si (max) | Cu (max) | Ni (max) | Fe (max) | Other impurity (each) | Total impurities |
| (max) | (max) | |||||||
| Mg- Mn | 0.01 | 0.50-1.30 | 0.05 | 0.005 | 0.001 | 0.03 | 0.05 | 0.3 |
The electrochemical performance
| Open voltage | Closed voltage | Actual capacity | Efficiency |
| 1.70-1.75 | 1.58-1.62 | 1230 min | 50 min |
Advantages:
A: The one-time investment cost is low, and basically no maintenance cost is required during operation
B: The utilization rate of the protection current is high, and no over-protection occurs
C: No interference to adjacent underground metal facilities, suitable for long-distance pipelines without power supply, and small-scale decentralized pipeline protection
D: It has the functions of grounding and protection
E: The construction technology is simple, and no special professional maintenance management is usually required.
Applications:
Magnesium anodes are effective and affordable in fighting corrosion. Magnesium anodes play a key role in protecting steel structures in salt and fresh water. include:
- Hull and various other boats
- Water tank
- Piers, piers and piers
- pipeline
- heat exchanger
- travel screen

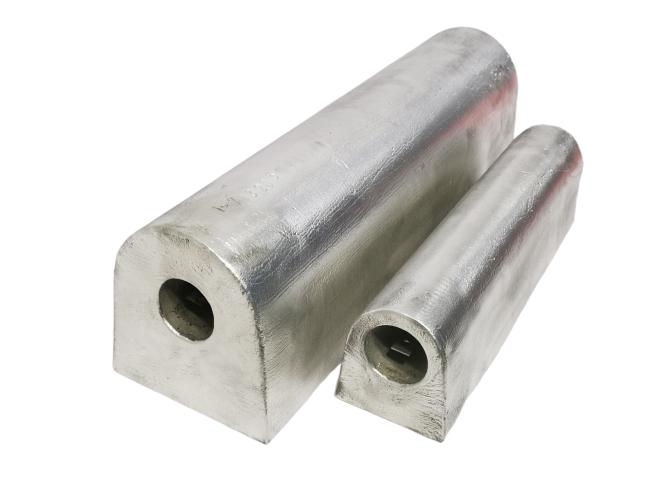

Photos:
