YAKAI Hydraulic Plate NM400 Excavator Plate Compactor NM400
Price:
USD 899~1350 / Unit
MOQ:
1
Delivery Time:
5-8 Days
Brand:
YTCT
Product Description

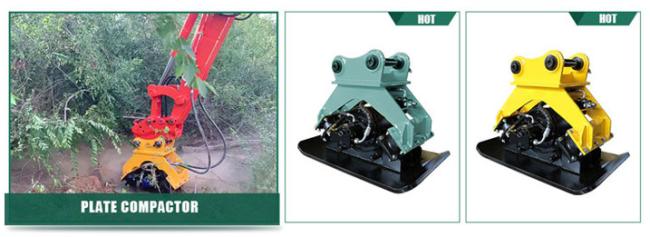

YAKAI Hydraulic Plate Compactor for Excavators
HYDRAULIC PLATE COMPACTOR
Hydraulic compactor uses a hydraulic motor to drive the eccentric mechanism to rotate, and the vibration generated by the rotation acts on the material that needed to be compact flat through the bottom plate to make it compact.
Technical Specification
| Category | Unit | YTCT-HC mini | YTCT-HC 02 | YTCT-HC 04 | YTCT-HC 06 | YTCT-HC 08 | YTCT-HC 10 |
| Height | mm | 490 | 550 | 750 | 930 | 1000 | 1100 |
| Width | mm | 320 | 410 | 550 | 700 | 900 | 900 |
| Impulse Force | ton | 2 | 2.5 | 4 | 6.5 | 11 | 15 |
| Vibration Frequency | rpm | 1800 | 1800 | 2000 | 2000 | 2200 | 2200 |
| Oil Flow | I/min | 25-35 | 35-45 | 45-85 | 85-105 | 120-170 | 120-170 |
| Working Pressure | kg/cm^2 | 90-110 | 90-110 | 100-130 | 100-150 | 150-200 | 150-200 |
| Bottom Measurement | mm | 500*350 | 630*400 | 900*550 | 1160*700 | 1350*900 | 1500*1000 |
| Compactor Weight | kg | 350-450 | 450-550 | 550-600 | 750-850 | 900-1000 | 1100-1300 |
|
Suitable Carrier Weight |
ton | 1-2 | 3-5 | 6-10 | 11-17 | 18-27 | 30-40 |
* The Parameter above may change with the technology improvement, will not notice additionally, please understand.
Application
Labeling of high-speed way and railway slopes, roads, construction sites, and building floors.
- Rammed slope pavement construction
- Rammed foundation buildings
- Rammed soil, gravel, etc.
- The use of bottom soil in the construction of rammed pipelines
- The use of rammed drainage pipes and rock bases
- Use of test pile work
