Enveloping Vertical Slewing Drive Worm Gearbox For Solar Tracking
Enveloping Vertical Slew Drive Worm Gearbox For Solar Tracking
Vertical Slew Drive Description
The slewing drive features high precision to provide a large proportion of single-stage gearing. Bearings and gears are assembled into a small, self-contained, and ready-to-install case to optimize weight and performance. These highly adaptable products also feature robust shock resistance, long life performance, and smooth rotation, bearing protection and sealed drive options. As an experienced slew drive manufacturer, we have the capability to provide high quality slew drives.
Changzhou Hangtuo Machinery Co., Ltd. is located in Changzhou High-tech Economic Development Zone with developed economy and convenient transportation. It is a manufacturer of precision rotary drives integrating R&D, design and production. The company is committed to providing domestic and foreign customers with the most constant and stable rotation, the best quality and perfect service, and the most meticulous and rigorous technical support, so that products and services can reach a higher level.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |

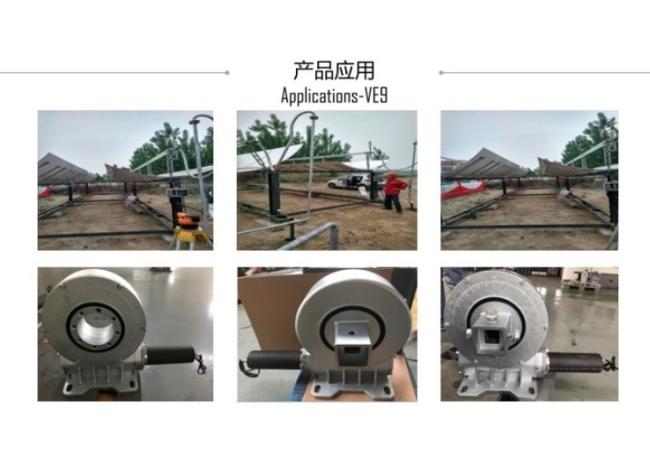

Applications
With the spirit of hard work and research, the company has developed and produced various series of rotary drives suitable for various applications. In addition to being widely used for various types of port machinery, construction machinery, military machinery, environmental protection machinery, metallurgical machinery, wind power generation and other mechanical equipment, it is also used in photovoltaic power generation systems, wind energy, satellite systems and so on. The products have won the recognition and praise of domestic and foreign customers.
Packaging & Shipping
1. Filling with rust-proof oil
2. Packing with protective layers
3. Fixed in the plywood case, pallet, steel frame
