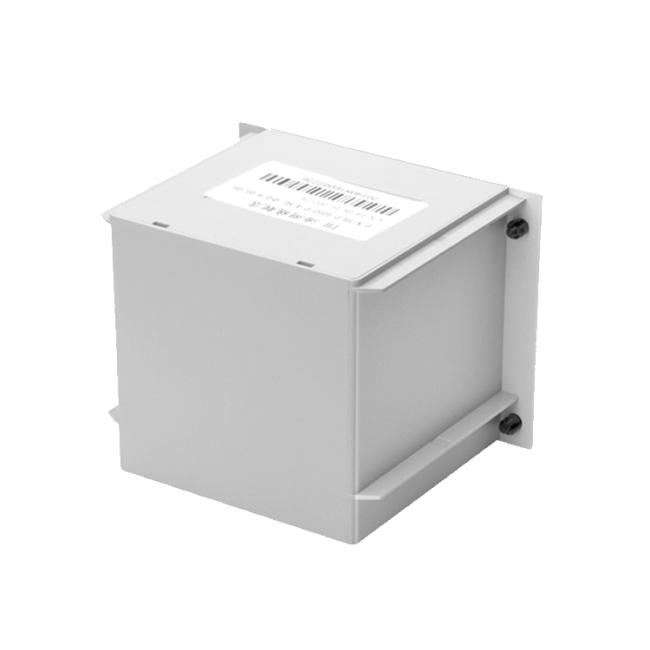

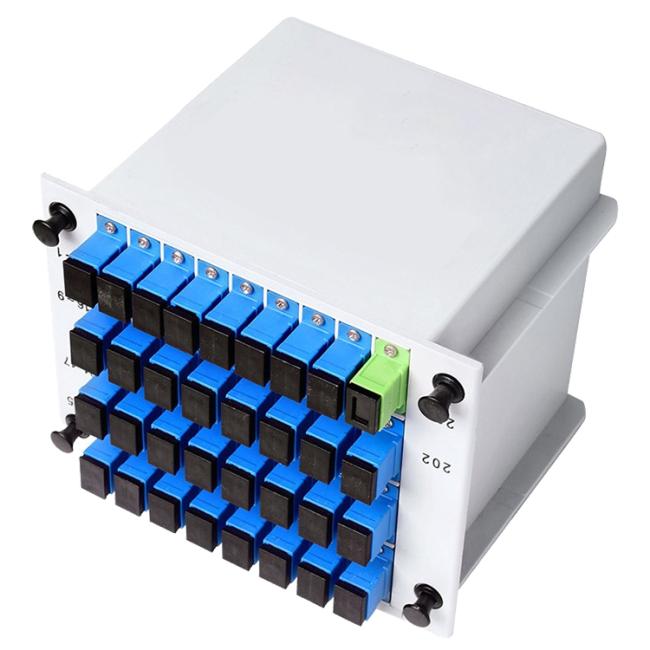

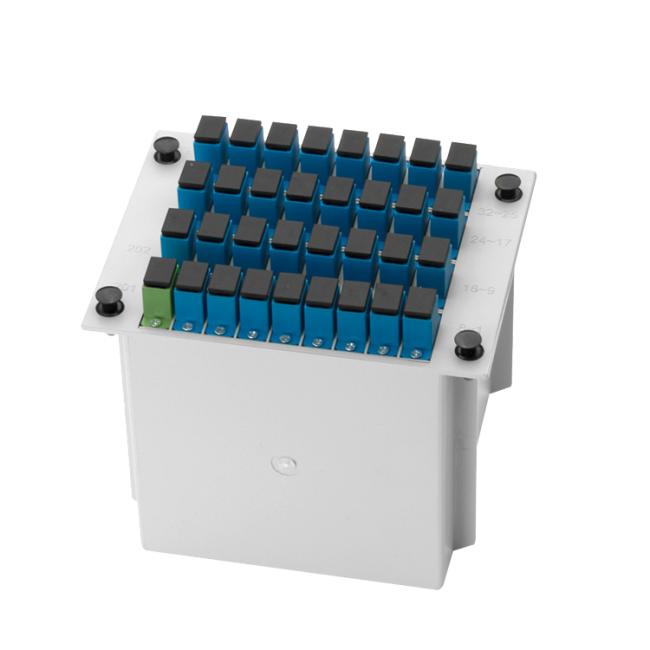

FTTH Epon Gpon LGX Cassette Type Fiber Optic PLC Splitter 1x32 SC UPC

Name: FTTH Epon Gpon LGX Cassette Type Fiber Optic PLC Splitter 1x32 SC UPC
Brand: Shenzhen damu technology co. LTD

Price Negotiable

Price: Negotiable

MOQ: 2pcs

Delivery Time: Negotiable

Brand: DAMU

Product Description

1*32 SC UPC Fiber Optic Plc Splitter FTTH Epon Gpon LGX Cassette Type 4 layer verticle

Product Description

SA connector steel tube gpon 1x16 1*16 mini plc splitter

Low Insertion loss and Low PDL

Uniform power splitting

High reliability

Excellent environmental stability

Compact size and various package


FTTx Systems

Digital, hybrid and AM-Video systems

LAN,WAN and Metro Networks

CATV systems

Other applictaions in fiber optic systems

Types	1x2	1x4	1x8	1x16	1x32
Test wavelength	1310nm
Working wavelength	1260nm~1650nm
Interface model	SC/UPC
Insertion loss (dB) (P/S level)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9
Loss uniformity (dB)	0.4	0.6	0.8	1.2	1.5
Return loss (dB) (P/S level)	55/50	55/50	55/50	55/50	55/50
Polarization dependent loss (dB)	0.2	0.2	0.2	0.25	0.25
Directionality (dB)	55	55	55	55	55
Wavelength dependent loss (dB)	0.3	0.3	0.3	0.3	0.3
Temperature stability (dB)	0.4	0.4	0.4	0.4	0.4
