OM3 / OM4 Fiber Optic Patch Cord , MPO Fiber Cable 3mm For CATV
| Connector Type | MPO | Ferrule End-face | UPC, APC |
|---|---|---|---|
| Fiber Type | SM/MM | Cable Type | 8core, 12core, 24core |
| Cable OD | 3.0mm | Cable Jacket | PVC LSZH OFNR OFNP |
| Cable Length | 1M, 2M, 3M Or Customized | Cable Color | Orange, Yellow, Aqua, Purple, Violet Or Customized |
| High Light |
fiber optic cassette,optical patch cord |
||

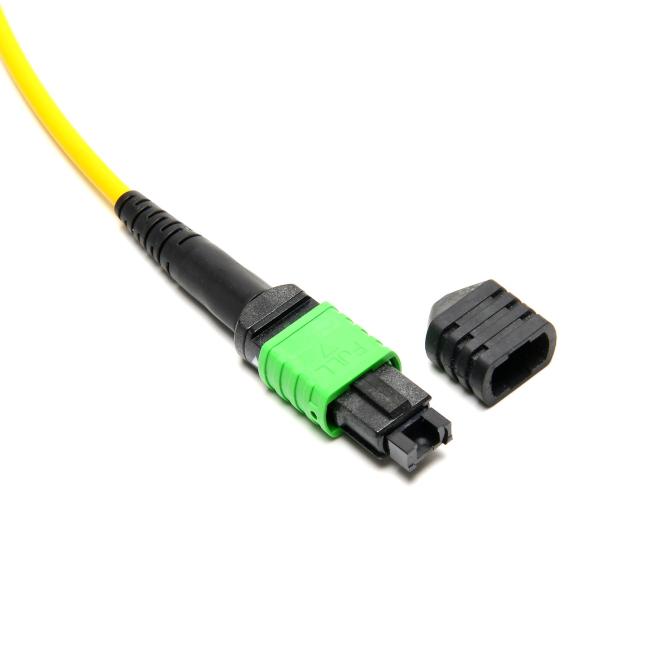

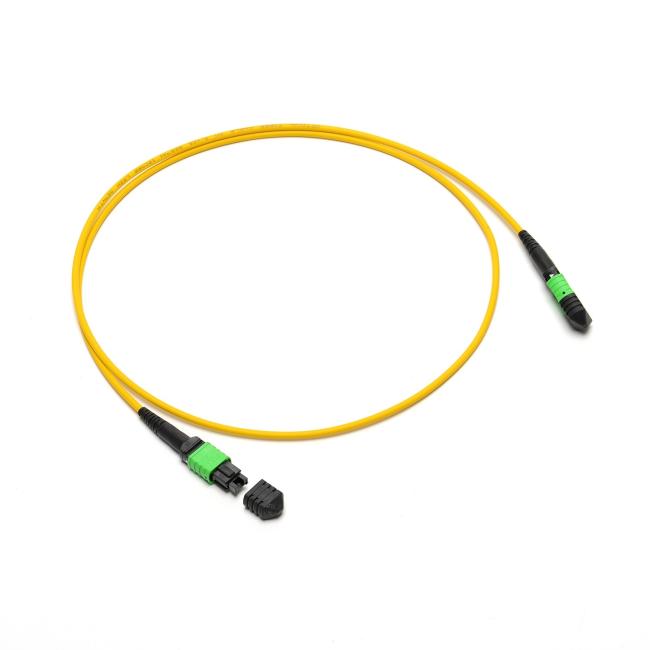

OM3 / OM4 Male Type MPO Fiber Optic Patch Cord with 3.0mm Fiber Cable
Description:
MPO/MTP fiber optic patch cords are with MPO/MTP fiber optic connectors.
They are several fiberglass connections in one such patch cord, for example, 4 fiber, 8 fiber, 12 fiber, etc.
Single mode and multimode; UPC, APC polishing, Male and Female types are available.
Features:
Superior qualified standard PC, APC, UPC, SPC polishing;
100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
φ0.9mm, φ2.0mm, φ3.0mm fiber optic cable optional;
Single mode (9125) or multi mode (50125 or 62.5125) fiber available;
FC, SC, LC, MU, ST, MT-RJ, etc connector
Good exchange ability and good durability;
Available in fiber bunch, ribbon fan-out, pigtail available;
Meets ISO9001, ROHS and Bell core GR 326-core standards;
Customized specifications welcomed.
Application:
CATV, metro Test equipment
Telecommunication networks;
Local area networks (LAN);
Wide area networks (WAN);
Premise installations;
Data processing networks;
Video and military active device termination
Specification:
Fiber Connector
| Connector A | |
| Connector Type | 8, 12 or 24 -Fiber MPO /MTP |
| Ferrule of end-face | UPC, APC |
| Housing Color | MM (Beige/Aqua), SM (Yellow/Green) |
| Insertion Loss, Typical | ≤ 0.10 dB |
| Insertion loss, max. | ≤ 0.35 dB |
| Durability(500 Matings) | < 0.2dB |
| Connector B | |
| Connector Type | LC/SC |
| Ferrule of end-face | UPC, APC |
| Housing Color | Blue, Beige, Aqua |
| Insertion Loss, Typical | ≤ 0.10 dB |
| Insertion loss, max. | ≤ 0.35 dB |
| Durability(1000 Matings) | < 0.2dB |
Fiber Cable
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 8, 12, 24 cores |
| Outer diameter | 12cores: 4.5±0.2mm ; 24cores:5.4±0.2mm |
| Outer jacket Colour | OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet) |
| Outer jacket material | LSZH,OFNP,OFNR |
| Tensile strength | 500N |
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -40 ~ +70°C |
Order Information:
MPO/UPC-MPO/UPC-MM-12cores-2M
① ② ① ② ③ ④ ⑤
① Connector type: FC, SC, LC, ST, MTRJ, MU, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Fiber core: 4 core, 8 core, 12 core, 24 core
⑤Cable Length: 1, 2, 3 meter or customized
⑥Cable type: PVC, LSZH, OM3, OFNR, OFNP
