China SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER for sale

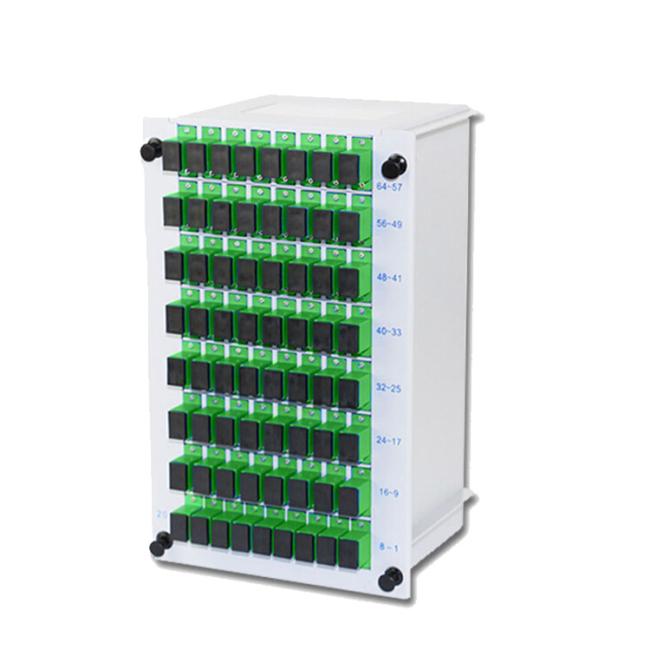

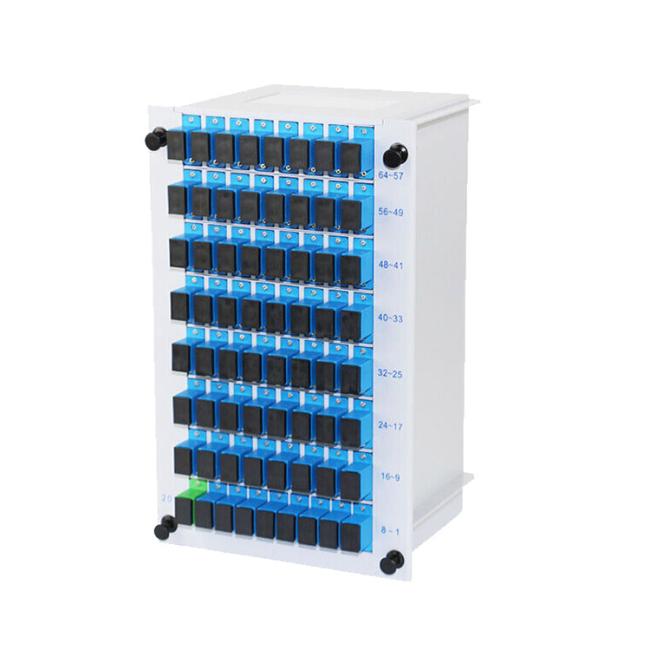

SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER

Price Negotiable

Price: Negotiable

MOQ: 2pcs

Delivery Time: Negotiable

Brand: DAMU

Product Description

1x64 SCUPC FTTH PLC Splitter LGX Box Cassette Inserting box 1*64 VERTICLE 8 LAYER

Product Description

SA connector steel tube gpon 1x16 1*16 mini plc splitter

PLC optical splitter is an integrated waveguide optical power distribution device based on quartz substrate. It has the
characteristics of small size, wide operating wavelength range, high reliability and good uniformity. It is especially suitable
for passive optical networks (EPON, BPON, GPON, etc.) connects the central office and the terminal device and implements the splitting of the optical signal.

Specification

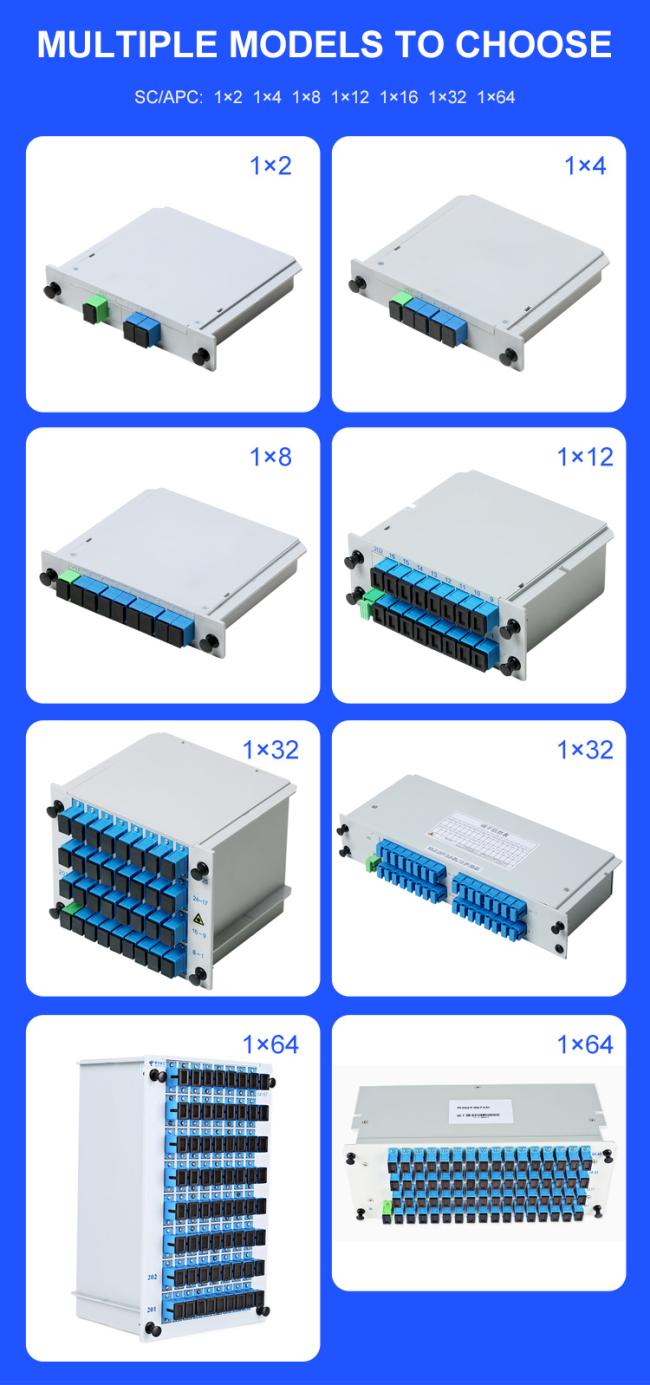

Performance Specification: 1xN PLC Splitter
Type	1x2	1x4	1x8	1x16	1x32	1x64
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or Customer Specify
Insertion Loss(P/S Grade)	3.8/4.0	7.2/7.4	10.3/10.7	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity(dB)	≤0.4	≤0.6	≤0.8	≤1.0	≤1.5	≤2.0
PDL(dB)	≤0.1	≤0.1	≤0.1	≤0.2	≤0.25	≤0.3
Return Loss(dB)	≥55	≥55	≥55	≥55	≥55	≥55
Directivity(dB)	≥55	≥55	≥55	≥55	≥55	≥55
Wavelength Dependent Loss(dB)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.5	≤0.5
Fiber Lenght(m)	1m or Specify
Temperature Stability(-5℃~70℃)(dB)	≤0.5
Operating Temperature(℃)	-5~70
Maximum Power Handing(mW)	500

Performance Specification: 2xN PLC Splitter
Type	2x2	2x4	2x8	2x16	2x32	2x64
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or Customer Specify
Insertion Loss(P/S Grade)	3.9/4.2	7.3/7.6	10.5/11.0	14.4/14.6	17.4/17.9	21.0/21.5
Loss Uniformity(dB)	≤0.6	≤1.0	≤1.2	≤1.5	≤1.8	≤2.2
PDL(dB)	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3
Return Loss(dB)	≥55	≥55	≥55	≥55	≥55	≥55
Directivity(dB)	≥55	≥55	≥55	≥55	≥55	≥55
Wavelength Dependent Loss(dB)	≤0.3	≤0.4	≤0.5	≤0.5	≤0.5	≤0.5
Fiber Lenght(m)	1m or Specify
Temperature Stability(-5℃~70℃)(dB)	≤0.5
Operating Temperature(℃)	-5~70
Maximum Power Handing(mW)	500

Features:
1.Low Insertion loss and Low PDL
2.Uniform power splitting
3.High reliability
4.Excellent environmental stability
5.Compact size and various package

Application:

FTTx Systems

Digital, hybrid and AM-Video systems

LAN,WAN and Metro Networks

CATV systems

Other applictaions in fiber optic systems
