China 2.0mm 3.0mm 1m 1.5m 1X4 SC / APC ABS Box Splitter With Number Ring Label for sale

2.0mm 3.0mm 1m 1.5m 1X4 SC / APC ABS Box Splitter With Number Ring Label

Price Negotiable

Price: Negotiable

MOQ: 2pcs

Delivery Time: Negotiable

Brand: DAMU

Product Description

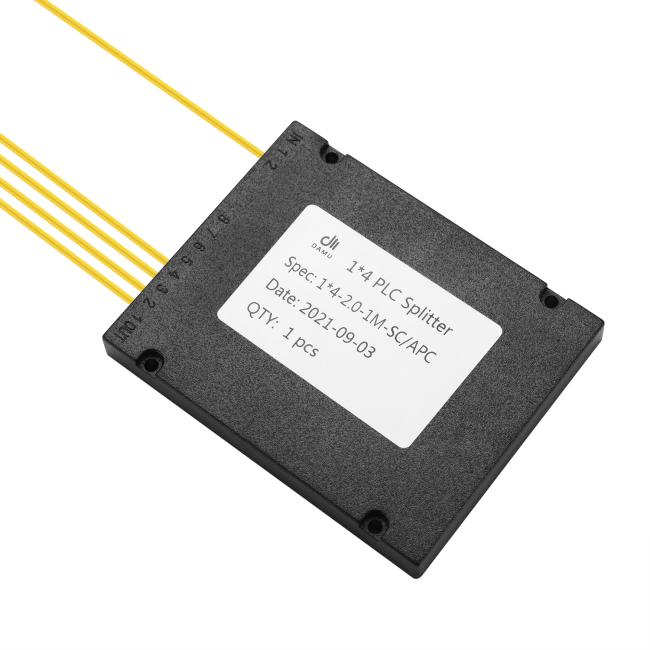

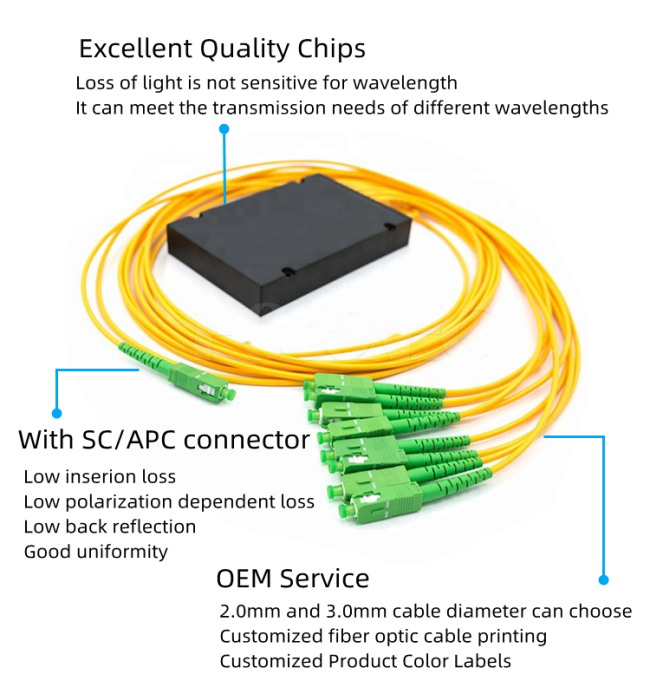

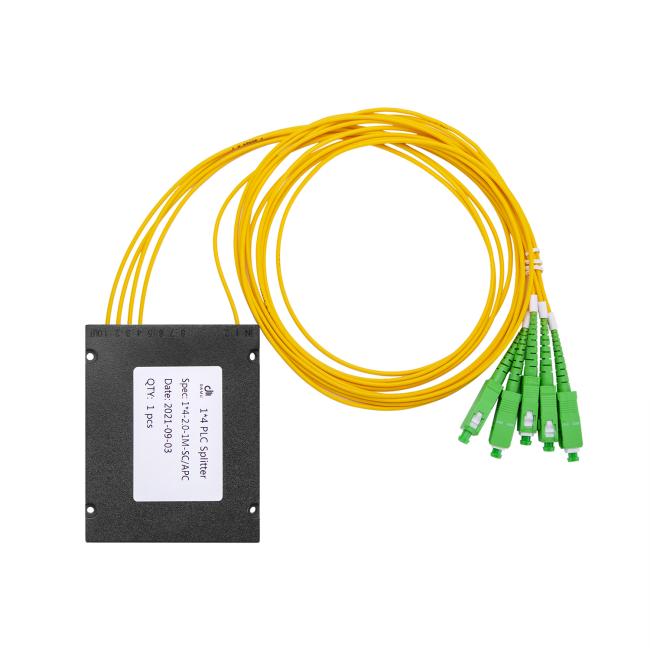

1X4 SC/APC ABS box type 2.0mm or3.0mm 1m 1.5m cable length with number ring label

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.

			specification

			1x4

			1x8

			1x16

			Return loss

			>55

			>55

			>55

			Insert loss

			<7.4

			<10.7

			<13.9

			Pigtail Diameter:

			0.9mm

			0.9mm

			0.9mm

			Fiber type

			G657A1

			G657A1

			G657A1

			Fiber length

			0.3M

			0.3M

			0.3M

			connector type

			SC

			SC

			SC

			operating temperature

			-40~85

			-40~85

			-40~85

			storage temperature

			-40~85

			-40~85

			-40~85

			operating wavelength

			1260~1650NM

			1260~1650NM

			1260~1650NM
