China Plastic ABS Box 1X8 SC UPC PLC Module Fiber Optic PLC Splitter FTTH GPON for sale

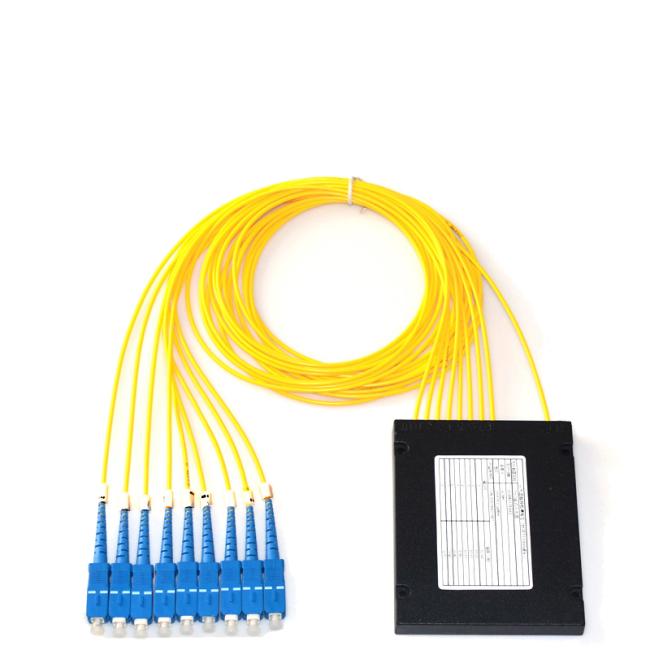

Plastic ABS Box 1X8 SC UPC PLC Module Fiber Optic PLC Splitter FTTH GPON

Price Negotiable

Price: Negotiable

MOQ: 2pcs

Delivery Time: Negotiable

Brand: DAMU

Product Description

1X8 SC UPC PLC Splitter Module Plastic ABS Box Fiber Optic PLC Splitter FTTH GPON


			Package Style

			ABS Module

			Configuration Type

			1 x8

			Fiber Grade

			G.657A1

			Fiber Mode

			Singlemode

			Connector Type

			SC/UPC

			Split Ratio

			50/50

			Input/Output Fiber Diameter

			2.0mm

			Input/Output Fiber Length

			1.5m

			Insertion Loss

			≤ 7.3dB

			Return Loss

			≥ 55dB

			Loss Uniformity

			≤ 0.6dB

			Directivity

			≥ 55dB

			Polarization Dependent Loss

			≤ 0.2dB

			Temperature Dependent Loss

			≤ 0.5dB

			Wavelength Dependent Loss

			≤ 0.3dB

			Operating Bandwidth

			1260~1650nm

			Operating Temperature

			-40 to 85°C
			(-40 to 185°F)

			Storage Temperature

			-40 to 85°C
			(-40 to 185°F)

DAMU's PLC splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function. Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.PLC splitter: Losses are not sensitive to the wavelength, spectral uniformity is higher,

it is more compact and is lower cost with greater degrees of splitting. However, device fabrication process is more complex. Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

Features
* Low excess loss

* Excellent directivity

* Good channel-to-channel uniformity

* Low PDL

* High cost-effectiveness

* High environmental and mechanical stability
Application
* Fiber optical communication system

* Fiber optical sensors

* CATV System

* LAN WAN System

			specification

			1x4

			1x8

			1x16

			Return loss

			>55

			>55

			>55

			Insert loss

			<7.4

			<10.7

			<13.9

			Pigtail Diameter:

			0.9mm

			0.9mm

			0.9mm

			Fiber type

			G657A1

			G657A1

			G657A1

			Fiber length

			0.3M

			0.3M

			0.3M

			connector type

			SC

			SC

			SC

			operating temperature

			-40~85

			-40~85

			-40~85

			storage temperature

			-40~85

			-40~85

			-40~85

			operating wavelength

			1260~1650NM

			1260~1650NM

			1260~1650NM
