China 1x16 ABS Box Optical Fiber Splitter , SC / APC Connector Fiber Optic PLC Splitter for sale

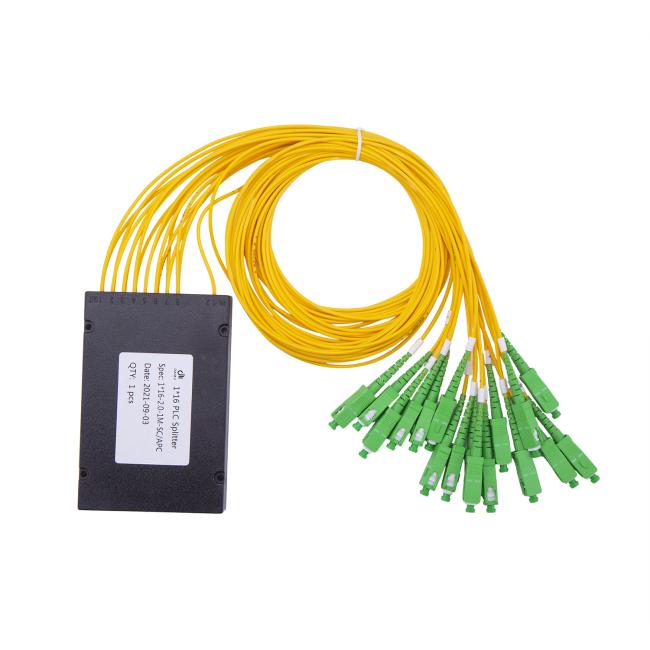

1x16 ABS Box Optical Fiber Splitter , SC / APC Connector Fiber Optic PLC Splitter

Price Negotiable

Price: Negotiable

MOQ: 2pcs

Delivery Time: Negotiable

Brand: DAMU

Product Description

1x16 abs box with SC/APC connector optical fiber splitter fiber optic PLC splitters

Product Description:Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. PioneerGoods provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features:
1) Low Insertion loss

2) Low PDL

3) Compact Design

4) Good channel-to-channel uniformity

5) Wide Operating Wavelength:From 1260nm to 1650nm

6) Wide Operating Temperature: From -40℃ to 85℃

7) High Reliability and Stability

Applications:
1) FTTX Systems

2) PON Networks

3) CATV Links

4) Optical Signal Distribution

Compliance:
1) Telcordia GR-1209-CORE-2001

2) Telcordia GR-1221-CORE-1999

3) RoHS

			Parameters

			1×2

			1x4

			1x8

			1x16

			1x32

			1x64

			1x128

			Operating Wavelength(nm)

1260～1650

			Insertion Loss (dB)(P/S rade)

			3.8/4.0

			7.1/7.3

			10.2/10.5

			13.5/13.7

			16.5/ 16.9

			20.5/ 21.0

			24.2/ 24.5

			Loss Uniformity(dB)

			0.4

			0.6

			0.8

			1.2

			1.5

			2.0

			2.5

			Return Loss (dB)(P/S Grade)

55/50

			Polarization Dependent

			0.2

			0.2

			0.2

			0.25

			0.3

			0.35

			0.5

			Directivity (dB)

			55

			Wavelength Dependent

			0.3

			0.3

			0.3

			0.5

			0.5

			0.5

			0.5

			Temperature Stability(-40～8℃)

			0.4

			0.4

			0.4

			0.5

			0.5

			0.5

			0.5

			Operating Temperature(℃)

-40～85

			Storage Temperature(℃)

-40～85

			Module Dimension (mm)(L×W×H)

			100×80×10

			120×80×18

			140×115×18

Product Highlights

Premium Fiber Splitter Guarantees Stable Transmission

With compact structure and bending insensitive cables, the ABS Module Splitter takes less
distortion during use, which ensures reliable optical transmission.
 Bend Insensitive Fiber
G.657A1 cables with 10mm min.bend radius allow tighter or bending cable routing.

 Nano-zirconia Ceramic Ferrules
Nano-zirconia Ceramic Ferrules
Nano-zirconia ceramic ferrules provide 10.5dB max.IL and 55dB min.RL.

 SC/UPC Connectors
The fibers contain SC/UPC connectors for plug and play, no need to splice.
