Heating Manual Optic Fiber Stripping Machine Max 30mm Length Fiber Dia 80-400uM
Manual Fiber Stripper
Product name :(Manual Fiber Stripper)

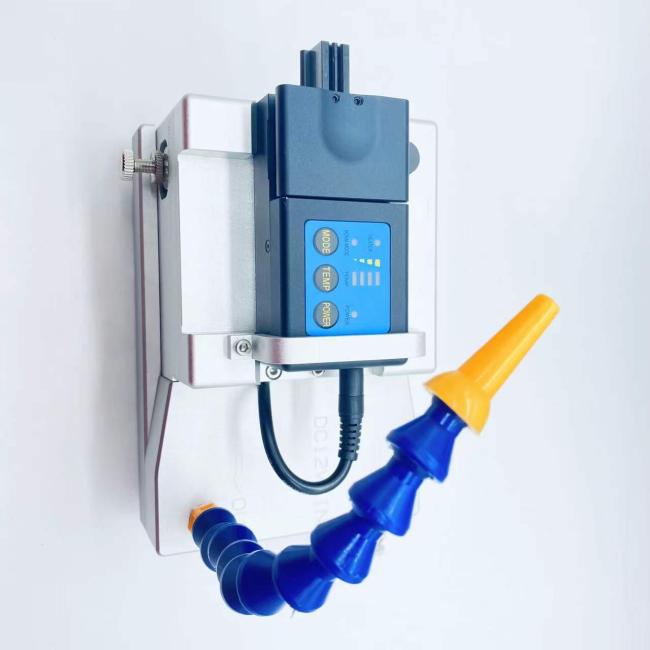

The product with compact and lightweight design, easy to use and reliable. It works by Vertical stripping, the force is small and stripping quality is high. The blade is durable and easy to replace. The Fiber Hot Jaket Remover uses manual operation and hot stripping methods, to ensure no damage to the fiber, easy and fast to strip coating. This product is also available with fiber stripping and window stripping the overall functionality.Before using the product,read this manual carefully in its entirety to fully understand product capabilities.Save this manual in a location in which you can easily get to see.
Basic introduction to the product
◆Product specifications and main technical parameters
| main technical parameters | |
| Stripped Length | Max 30mm |
| Heating Mode | Normal mode |
| Power-saving mode | |
| Temperature Setting | Four Temperature: 60℃,80℃,100℃,120℃ |
| Power Supply | DC 12V2A power supply using the adaptor conversion |
| Dimensions | 92.5(L) X 46(D) X 28.5(H) mm |
| Weight | 260g |
| Environmental requirements | Humidity below 85% ％; T:-10℃-40℃ |
Fiber choice
| For fiber | |
| Fiber materials | Quartz glass |
| Coating material | UV hardening resin,hytrel |
| Fiber count and coating thickness | ≤0.9mm |
| Fiber diameter | 80-400μm |
◆ standard
| Name | Specification | Quantity |
| Manual fiber stripper | DM-240 | 1 |
| Blade(installiert) | DM-2C | 2 |
| Power adapters | AC220/DC122A | 1 |
| Operating Manual | 1 |
Methods of operation
1,Connect the power adapter to both ends of the AC220V power and thermal stripping Power Interface；

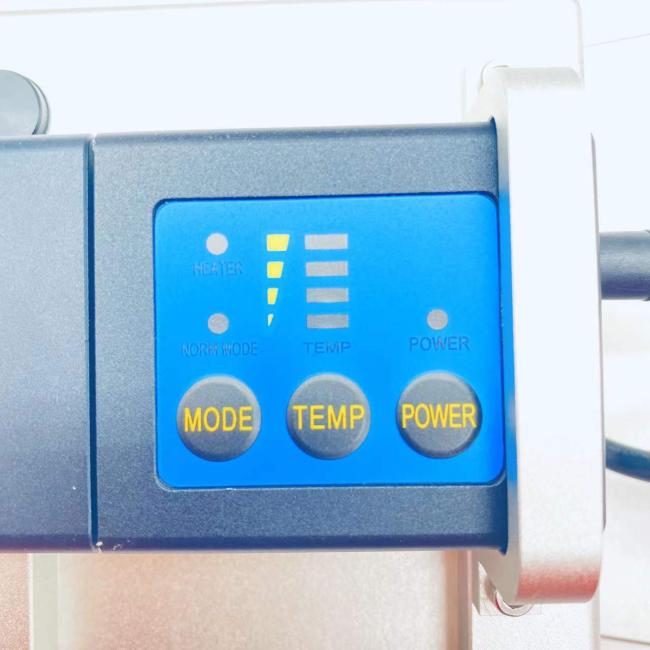

2,Open hot stripping power supply, that is press the power button for about 1 second until the power indicator light；
3,The optical fiber length according to user needs into guide groove；
4,The hot pressed fiber stripping device cover ；
5,Wait for the heat indicator that turns green to reach the preset temperature；
6,Stripping fiber: Hold down the right hand part, left hand hold fiber Uniform pull until fiber is come out;
7,Use a purity of more than 99% alcohol soaked gauze clean fiber direction of the arrow ；
8,Press "Power" button 2-3 seconds after the release, the power light is off, turn off and unplug the power adapter.
★Please do not re-used with gauze; Please be careful not to hurt your fingers fiber top.
