50dB FTTH Fast Connector , 10 times SC APC Connector for Drop cable
Fast Connector SC APC UPC Fiber Optic Quick Connector For FTTH Drop Cable Field Termination
Feature
1. Based on the pluggable non-preset tube technology

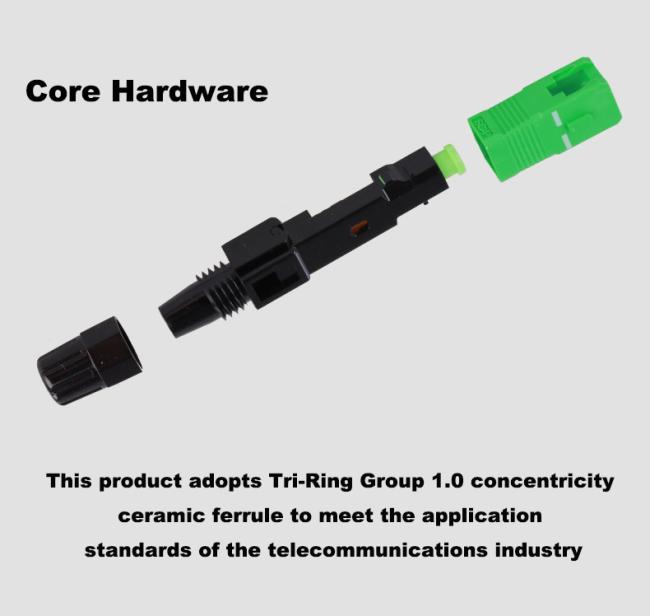

2. Precision ceramic components with co-axial self centering
3. Optical fiber fits axially in elastic way and avoids completely any false connect
4. Triple clamping through the naked fiber, tight buffer and cable, etc., can be used as patchcord
5. High on-line tensile strength of Optical Fast Connector after terminating,
6. Integrated protection of the casing to withstand harsh user environment.
7. Directly connectable with ONU without any optical socket, which reduces FTTH cost.
8. High success rate and easiness in installation with average splicing time 100 sec
9. Lower requirement for the habit working and work environment call for to the builder.
10. Visible Installation quality; independent from any far end light source and special device satisfying
cabling construction in any sectioned way.
Optical Characteristics
| Category | Specification | Remarks | |
| Aoolicable for | Drop cable.Indoor cable | ||
| Fiber mode | Single mode or Multi mode | ||
| Operation time | S | About 50(no fiber cut) | |
| Insertion Loss | dB | ≤0.5 | |
| Insertion Loss Typical value | dB | 0.3 | |
| Return Loss | dB | ≥50 | |
| Fastening strength of naked fiber | N | ≥5 | |
| Tensile strength | N | ≥50 | |
| Reusable | Time | ≥10 times | |
| Operating Temperature | ℃ | -40～+85 | |
| On-line tensile strength(20N) | dB | ΔIL≤0.3 | |
| Mechanical durability(500 times) | dB | ΔIL≤0.3 | |
| Drop-off test(drop-off height4m,once per direction,totally 3 times) | dB | ΔIL≤0.3 | |
Environmental performance requirements
Mechanical Performance Requirements
|
Category |
Specification | |||
| Condition | IL Variation | RL Variation | Appearance | |
|
Impact |
Height: 4m； 1 drop each axis； 3 cycles |
≤0.5 |
≤5 |
No mechan ical dama ge, like deformat ion, crac king and untight |
|
Vibration |
Frequency: 10 ～ 50HZ； Sweep: 45 times / min； amplitude: 0.75mm； Duration:30min each axial |
≤0.5 |
≤5 |
|
|
Torsional |
Pull:15N； The distance between Loading location and fast connector: L = 22-28cm；Rate:10times / min. Times: 200 |
≤0.5 |
≤5 |
|
|
Tensile |
Pull:50N； The distance between Loadi ng location and fast conn ector: L = 22-28cm； Duration:1min. |
≤0.5 |
≤5 |
|

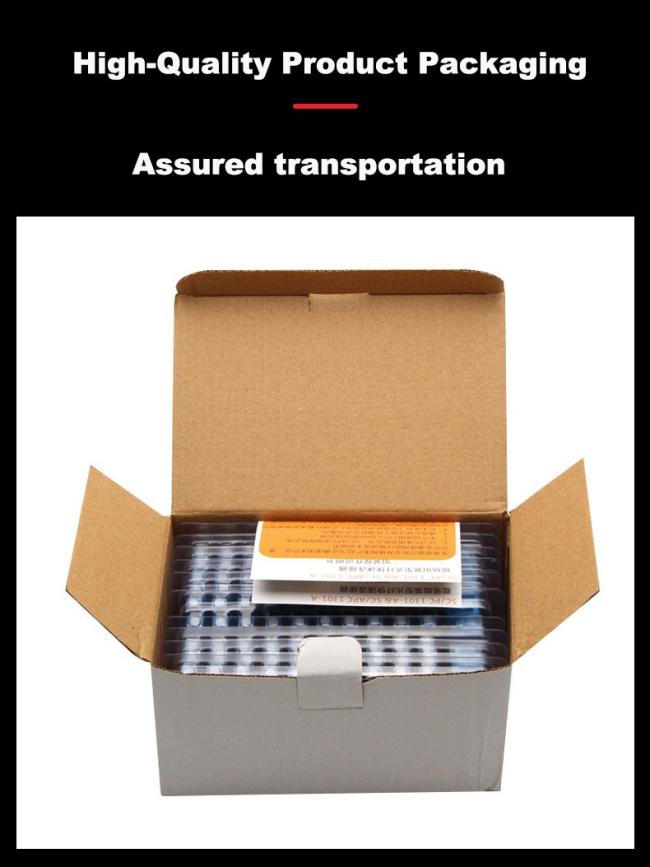

Product Packaging Information
|
box |
Size(CM) | 44X26X19 |
| QTY(Gift Box/Box) | 500 | |
| N.W(KG/Box) | 5 | |
| G.W(KG/Box) | 5.2 |
