OM1 OM3 FTTH Fast Connector , Field Termination Sc Apc Quick Connector
Fast Connector mechanical SC APC UPC Fiber Optic Quick Connector For FTTH Drop Cable Field Termination
Feature
SC fast connector allow you to terminate a fiber in short time. The fast connect
is a pre-polished connector which uses mechanical clamping and aligning of a
cleaved fiber end which is inserted into the connector body. The fast connect
is available in both singlemode andmultimode (OM1 and OM3 10Gig)and a
variety of connector types and can be terminated onto 250um and 900um
coated fibre as well as 2x3 mm and 2x1.6 mm jacketed cord.

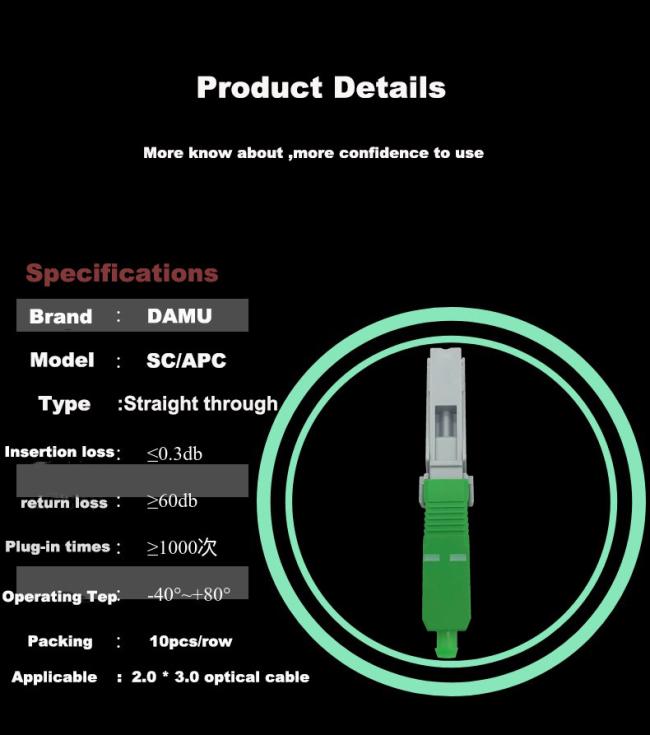

Optical Characteristics
| Category | Specification | Remarks | |
| Aoolicable for | Drop cable.Indoor cable | ||
| Fiber mode | Single mode or Multi mode | ||
| Operation time | S | About 50(no fiber cut) | |
| Insertion Loss | dB | ≤0.5 | |
| Insertion Loss Typical value | dB | 0.3 | |
| Return Loss | dB | ≥50 | |
| Fastening strength of naked fiber | N | ≥5 | |
| Tensile strength | N | ≥50 | |
| Reusable | Time | ≥10 times | |
| Operating Temperature | ℃ | -40～+85 | |
| On-line tensile strength(20N) | dB | ΔIL≤0.3 | |
| Mechanical durability(500 times) | dB | ΔIL≤0.3 | |
| Drop-off test(drop-off height4m,once per direction,totally 3 times) | dB | ΔIL≤0.3 | |
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments
6. Fiber Optic Patch Cord & Pigtail
7. Telecommunication Devices
8. Data Communications Networks
9. Optical Fiber LAN and Access Network
10. Industry and Military Applications
Mechanical Performance Requirements
|
Category |
Specification | |||
| Condition | IL Variation | RL Variation | Appearance | |
|
Impact |
Height: 4m； 1 drop each axis； 3 cycles |
≤0.5 |
≤5 |
No mechan ical dama ge, like deformat ion, crac king and untight |
|
Vibration |
Frequency: 10 ～ 50HZ； Sweep: 45 times / min； amplitude: 0.75mm； Duration:30min each axial |
≤0.5 |
≤5 |
|
|
Torsional |
Pull:15N； The distance between Loading location and fast connector: L = 22-28cm；Rate:10times / min. Times: 200 |
≤0.5 |
≤5 |
|
|
Tensile |
Pull:50N； The distance between Loadi ng location and fast conn ector: L = 22-28cm； Duration:1min. |
≤0.5 |
≤5 |
|

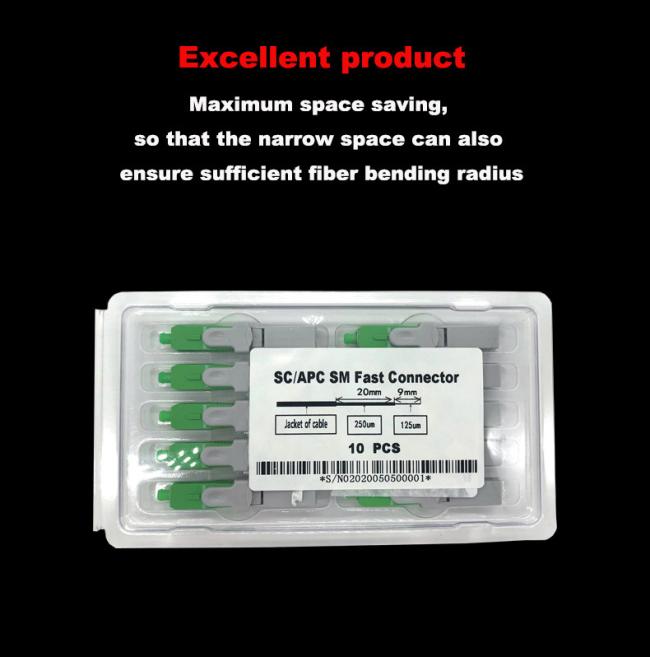

Product Packaging Information
|
box |
Size(CM) | 44X26X19 |
| QTY(Gift Box/Box) | 500 | |
| N.W(KG/Box) | 5 | |
| G.W(KG/Box) | 5.2 |
