Single Mode Multimode Mpo Fanout Cable For Telecommunication
| Name | MPO Fiber Optic Patch Cord | Fiber Type | OM3 |
|---|---|---|---|
| Connector | SC/LC/ST/FC / MPO | Cable Type | 12 Cores |
| Cable OD(MM) | 3 | Cable Jacket | LZSH Or Oem |
| Cable Color | Aqua Or Customized | Ferrul End-face | UPC |
| High Light |
MPO Fiber Optic Patch Cord,OM3 Fiber Optic Patch Cord,OM3 MPO Fiber Patch Cord |
||

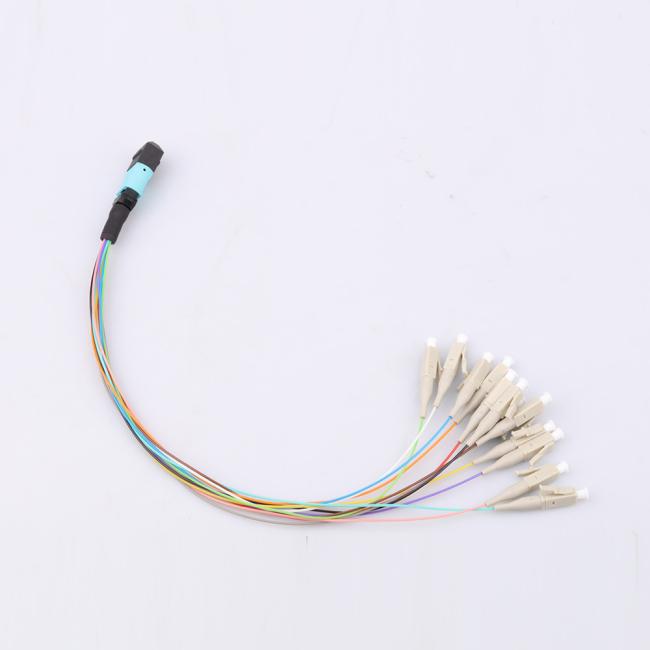

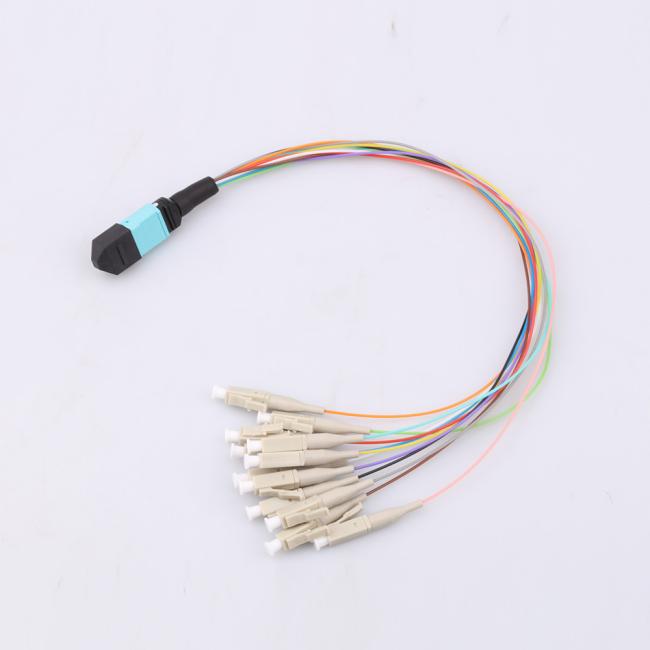

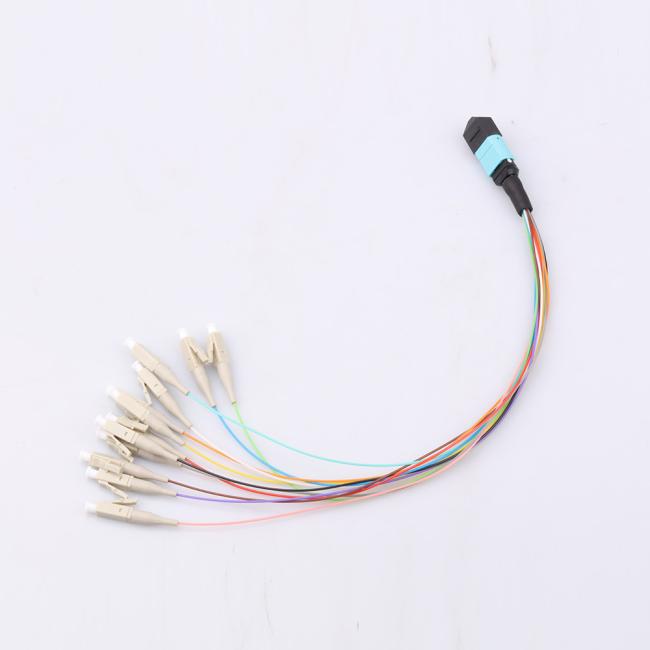

MPO fan-out cable
1. Description:
MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.
2. Features:
High reflection loss with APC
High fiber density (maximum 24 fibers for Multimode)
Single mode and Multimode (Flat/Round) available
Fiber in single connector: 4, 8, 12 24
Insert/Pull latching connector
3. Application:
Premise Installations
FTTH, CATV, LAN, MAN, WAN, Test & Measurement
Telecommunication and Data processing Networks
Video transmission, Data transmission
Active Device Termination
4. Specification:
| Type/Performance | SM(APC Polish) | MM (UPC / Flat Polish) | ||
| Standard | Elite Low Loss | Standard | Elite Low Loss | |
| Maximum Insertion Loss | ≤ 0.75dB | ≤ 0.35dB | ≤ 0.60dB | ≤ 0.35dB |
| Return Loss | ≥ 50dB | N/A | ||
| Operating Temperature | -40°C to 80°C | 40°C to 80°C | ||
| Test Wavelength | 1310nm | 850nm | ||
5. Order Information:
|
Connector #1 |
Polishing |
Connector #2 |
Polishing | Cable Fiber | Diameter | Mode type | Length | Remark |
| 1:SC | P:PC | 1:SC | P:PC | 1:simplex | 1:0.9mm | 6:62.5/125 | 1:1M | A:Armoved |
| 2:ST | U:UPC | 2:ST | U:UPC | 2:duplex | 2:2.0mm | 5:50/125 | 2:2M | |
| 3:FC | A:APC | 3:FC | A:APC | 3:4fibers | 3:3.0mm | 9:9/125 | ||
| 4:LC | 4:LC | 4:6fibers | 1:50/125OM3 | |||||
| 5:MTRJ | 5:MTRJ | 5:8fibers | 2:50/125OM4 | |||||
| 6. MU | 6. MU | 6:12fibers | ||||||
| 7:SMA | 7:SMA | 7:24fibers | ||||||
| 8:MPO | 8:MPO | 8:48fibers | ||||||
| 9. DIN | 9. DIN | |||||||
| 10.D4 | 10.D4 |
