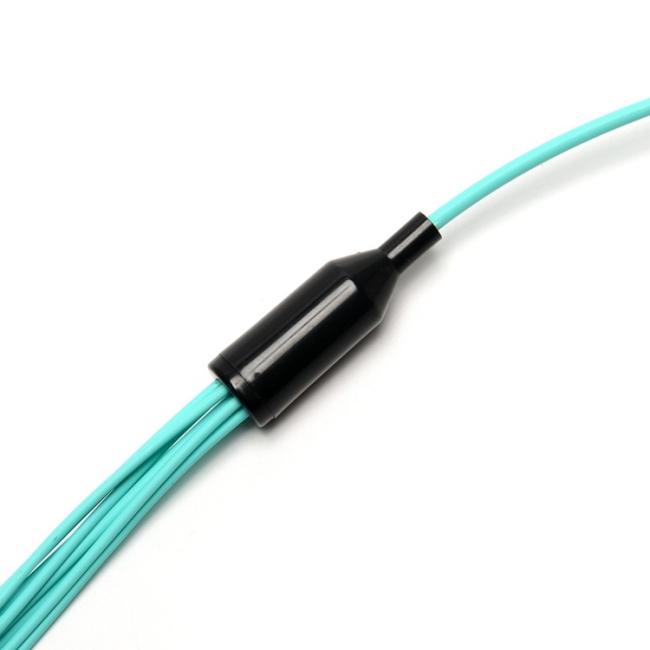

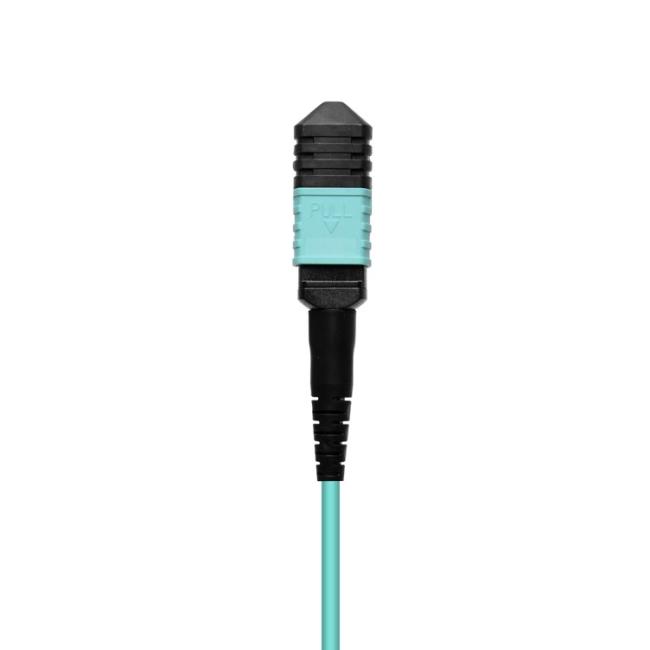

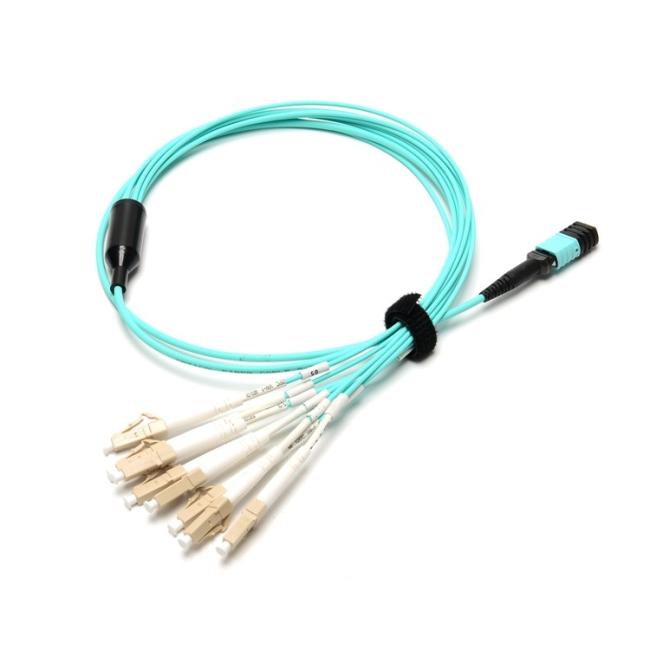

MPO-LC Fiber Optic Patch Cord 8 Core Aqua Round Bundle OM3 PVC LSZH 3.0mm
MPO-LC 8 Core Fibre Optic Patch Cord Aqua Round Bundle OM3 0M4 Optical Fiber Cable
Product details
| Product |
MPO-LC Fiber Optic Patch Cord armoured Multi mode 8 Core OM3 PVC LSZH 3.0mm |
| Pre-Terminated Connector | MPO to LC |
| Polished | UPC or APC |
| Fiber Count | 2 Fibers or other for options |
| Fiber Mode | SM or MM |
| Jacket Color | Blue, Black |
| Breakout OD | 2.0mm, 3.0mm |
| Insertion Loss | < 0.2 DB |
| Return Loss | >50db |
| Jacket Materials | PVC LSZH |
| Product Keywords | Armored Fiber Opitc Patch Cord |
Characteristics
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPCAPC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
Features:
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
Characteristics
Applications
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
