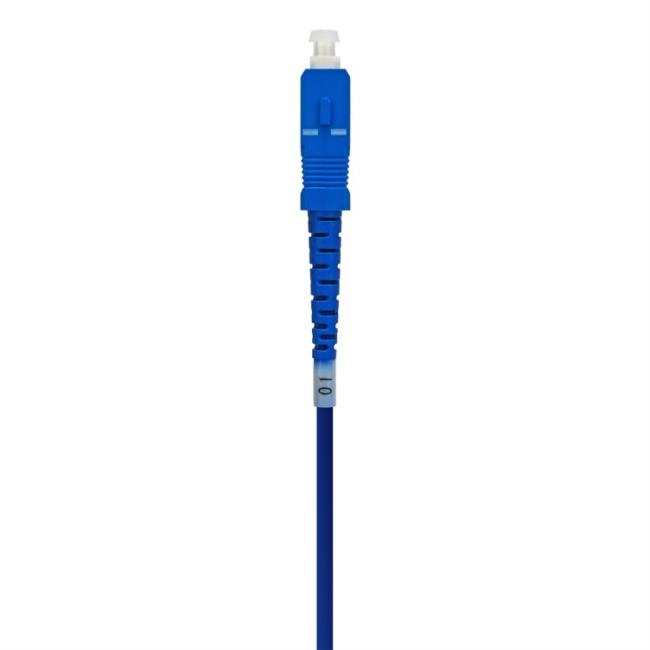

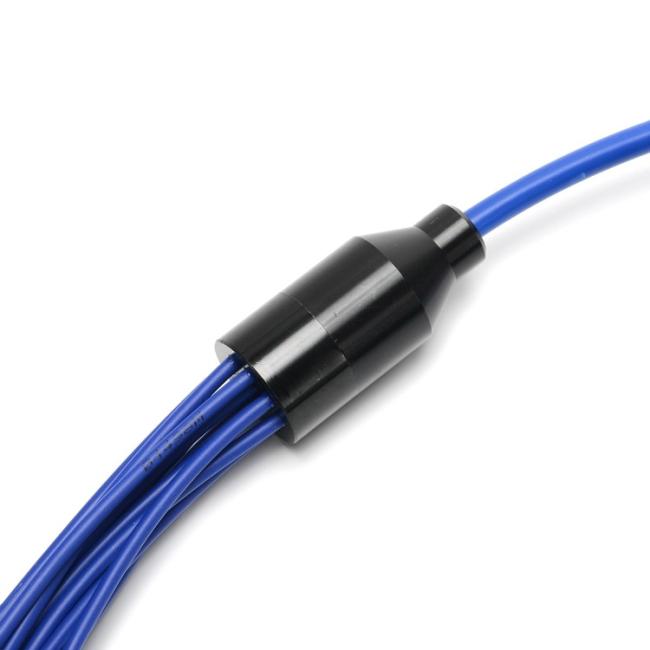

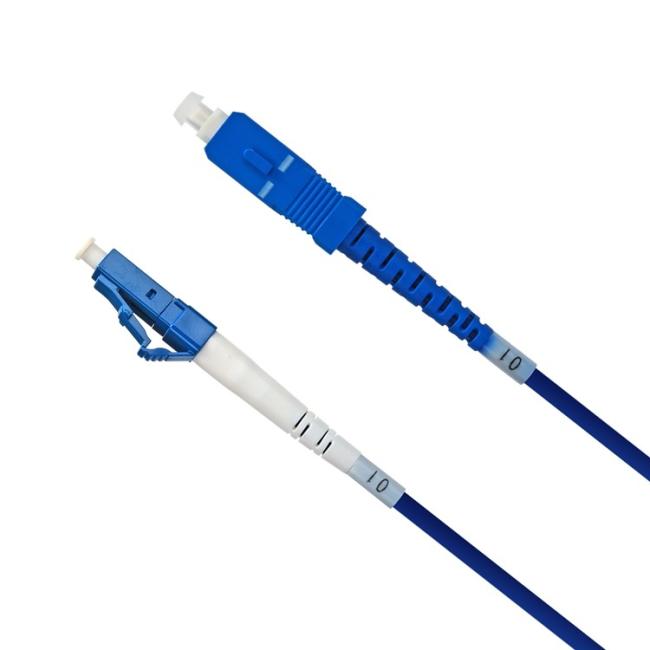

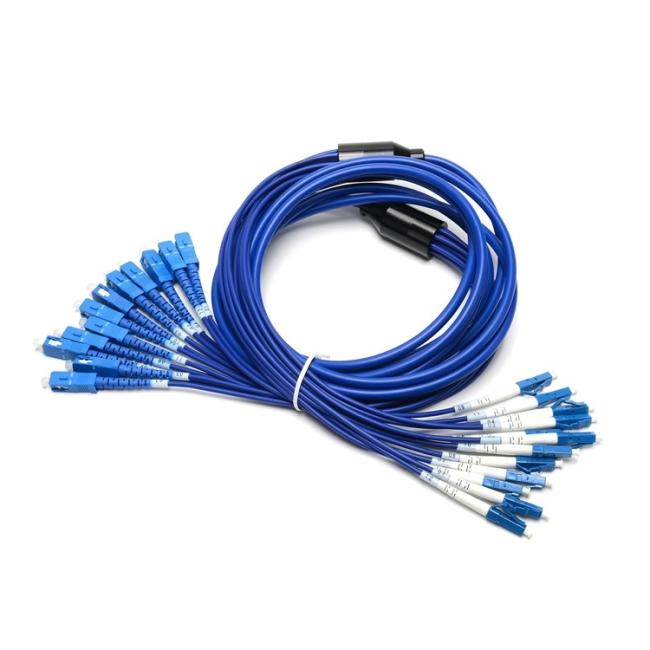

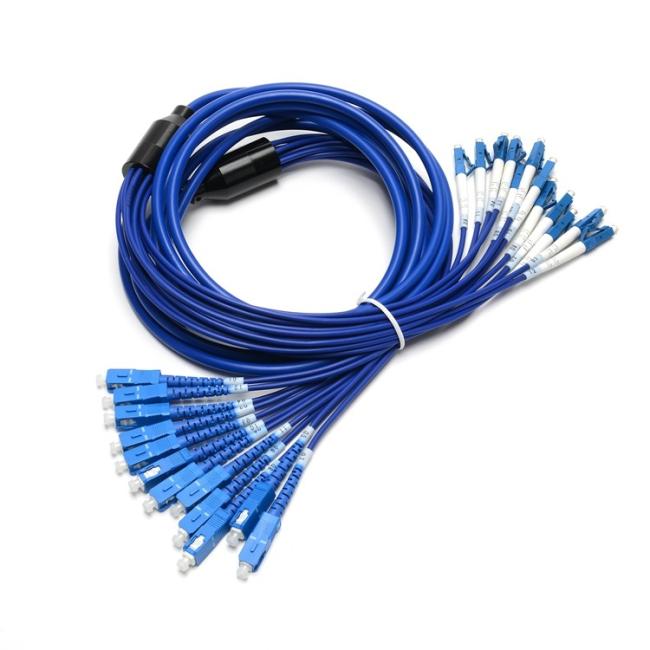

LC To SC Multi Mode Fiber Optic Patch Cord 12 Core 3m 10Gb
LC to SC Factory price multi-mode 12 Core 3m 10Gb Patch Cord Fiber Optic Cable
Product details
| Product |
LC to SC Factory price Single mode 12 Core 3m Patch Cord Fiber Optic Cable |
| Pre-Terminated Connector | LC-LC |
| Polished | UPC or APC |
| Fiber Count | 2 Fibers or other for options |
| Fiber Mode | SM or MM |
| Jacket Color | Blue, Black |
| Breakout OD | 2.0mm, 3.0mm |
| Insertion Loss | < 0.2 DB |
| Return Loss | >50db |
| Jacket Materials | PVC LSZH |
| Product Keywords | Armored Fiber Opitc Patch Cord |
Characteristics
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPCAPC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
Features:
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
Characteristics
Applications
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
