GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket
| Name | GYTA53 Fiber Cable | Fibers | 48core |
|---|---|---|---|
| Fiber Type | G652D | Samples | Free |
| Armour | Steel Tape+Al Tape | Jacket | Double PE Jacket |
| Cable Color | Black | Warranty | 3 Year |
| High Light |
GYTY53 Outdoor Fiber Optic Cable,GYTA53 Outdoor Fiber Optic Cable,GYTA53 singlemode fiber cable |
||

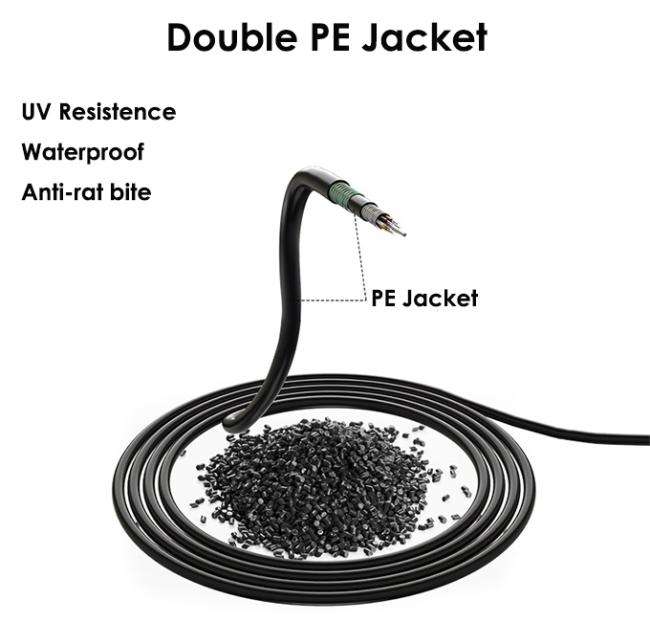

GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket
Outdoor Underground Direct Buried Duct GYTA53 GYTY53 Singlemode Fiber Optic Cable 24 48 96core
Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.
1. Loose tube gel-filled construction for superiorfiber protection.
2. Double jacket single armored(GYTY53) and Double jacket double armored
3. (GYTA53) for rodent pr.otection and direct burial.
4. UV and moisture-resistant design
Applications
Direct buried, Duct, Underground conduits.
Backbone.
|
No. |
Items |
Unit |
Specification |
||
|
G.652D |
|||||
|
1 |
Cladding Diameter |
μm |
125±0.7 |
||
|
2 |
Core-cladding concentricity |
μm |
≤0.5 |
||
|
3 |
Cladding non-circularity |
% |
≤0.7 |
||
|
4 |
Coating Diameter |
μm |
245±5 |
||
|
5 |
Cladding -coating concentricity |
μm |
<12.0 |
||
|
6 |
Mode field Diameter |
1310nm |
μm |
9.2±0.4 |
|
|
1550nm |
μm |
10.4±0.5 |
|||
|
7 |
Fiber Cutoff Wavelength |
nm |
λcc≤1260 |
||
|
8 |
Attenuation (max.) |
1310nm |
dB/km |
≤0.4 |
|
|
1550nm |
≤0.3 |
||||
Product Details
FAQ
We are based in Guangdong, China, start from 2018,sell to Eastern Europe(18.00%),Western Europe(13.00%),Northern
Europe(11.00%),South Asia(10.00%),North America(9.00%),Mid East(8.00%),Central America(7.00%),South America(7.00%),Eastern
Asia(6.60%),Africa(5.00%),Domestic Market(2.20%),Southern Europe(1.20%),Oceania(1.00%),Southeast Asia(1.00%). There are total
about 11-50 people in our office.
2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
fiber optic polishing machine,fast connector,fiber optic polishing jig,fiber optic patch cord
4.why should you buy from us not from other suppliers?
12 years of experience advanced level in optical fiber equipment, we have OEM and ODM capabilities. We have always been in the
leading position in the same industry with superb workmanship, excellent quality, good pre-sales and after-sales services.
5.what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
