Single Mode GYTA Outdoor Fiber Optic Cable Aluminium Armoured Cable
| Item Name | GYTA Fiber Optic Cable | Fiber Numbers | 48cores |
|---|---|---|---|
| Certification | CE,FCC,ROHS,UL | Fiber | Single Mode |
| Tube | Loose Tube Stranded | Install Methord | Aerial, Duct |
| Samples | Free | Warranty | 3 Years |
| High Light |
GYTA Outdoor Fiber Optic Cable,48 core Outdoor Fiber Optic Cable,GYTA Aluminium Armoured Cable |
||
Single Mode GYTA Outdoor Fiber Optic Cable Aluminium Armoured Cable
24 36 72 96 Core PE Jacket Aluminium Armored Outdoor Optical Fiber Cable GYTA

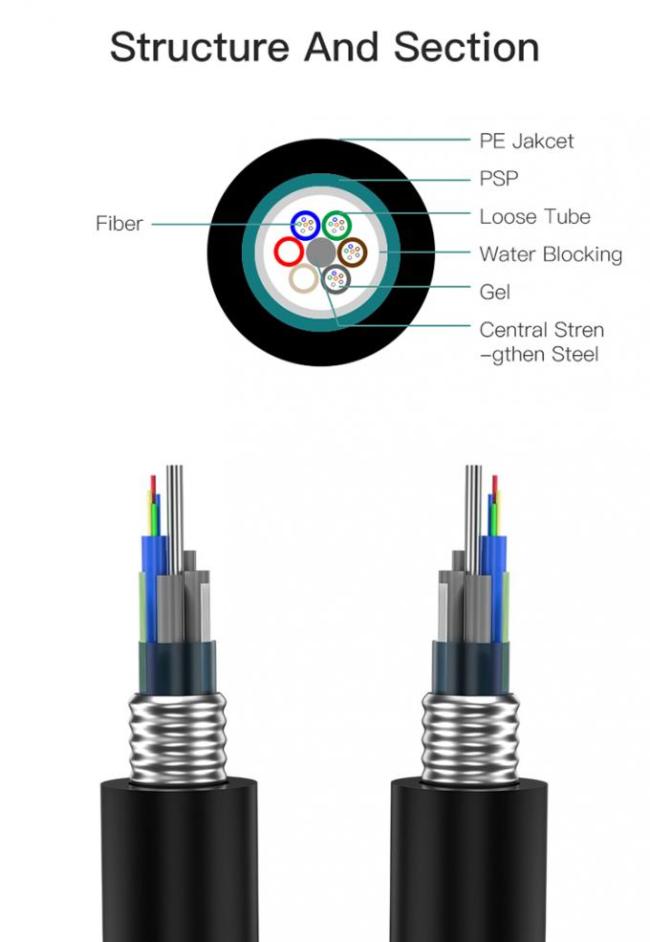

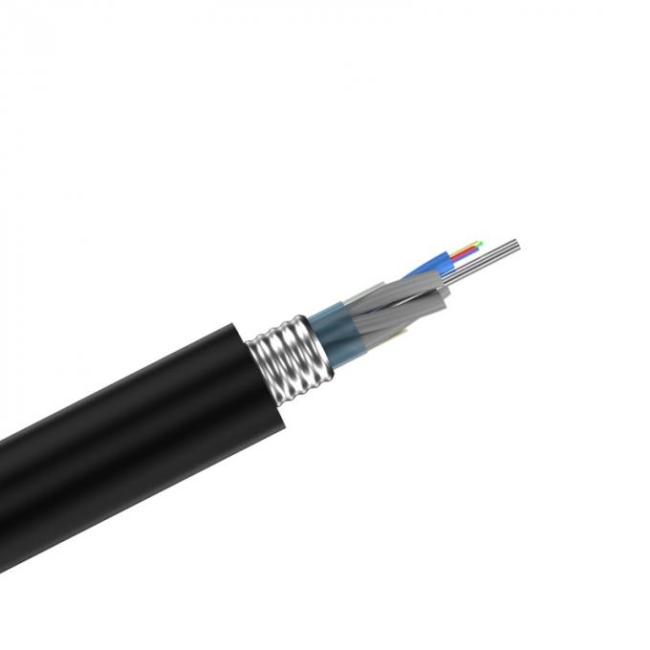

GYTA fiber optic cable is an outdoor communication optical cable of metal strength member of the loose tube jelly-filled structure with Al-polyethylene laminated sheath. The loose tubes are made of high modulus plastics (PBT), which are filled with water resistant filling gel and stranded around a metallic central strength member. Cable core is filled with filling compound. A corrugated aluminum tape is longitudinally applied over the cable core, and extruded with a durable polyethylene (PE) sheath.
Features:
1. From 2 core to 288 fibers
2. The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
3. Aluminum armored prociding property moisture resistance.
4. Metal strength menber (OR FRP) peocides excellent strain performance.
Fiber optical cable/ Optical fiber cable/ Fiber optic/ Optical fiber cable
Quick Detail:
GYTA Fiber Optic Cable
G.652D or G.657A OM3
Cable Diameter: 10.0 mm
Tensile Strength Long Term: 600N
Tensile Strength Short Term: 1500N
Crush Resistance Long Term: 300N/100mm
Crush Resistance Short Term: 1000N/100mm
Bending Radius Static: 112 CM
Bending Radius Dynamic: 224 CM
