China G652D 24 core Fiber Optic Cables , Unitube Non Metallic Armored Fiber Cable for sale

G652D 24 core Fiber Optic Cables , Unitube Non Metallic Armored Fiber Cable

Price Negotiable

Price: Negotiable

MOQ: 5km

Delivery Time: 10-15Days

Brand: DAMU

Product Description

Product Details

Product Name	GCYFXTY 24 Core Fiber Cable	Core Numbers	24core
Fiber Type	G652D	Strength Member	Aramid Yarm
Jacket Color	Black Or Customized	Package	Wooden Drum
High Light	GCYFXTY Fiber Optic Cable , GCYFXTY armoured fibre optic cable , G652D 24 core optical cable

Product Description

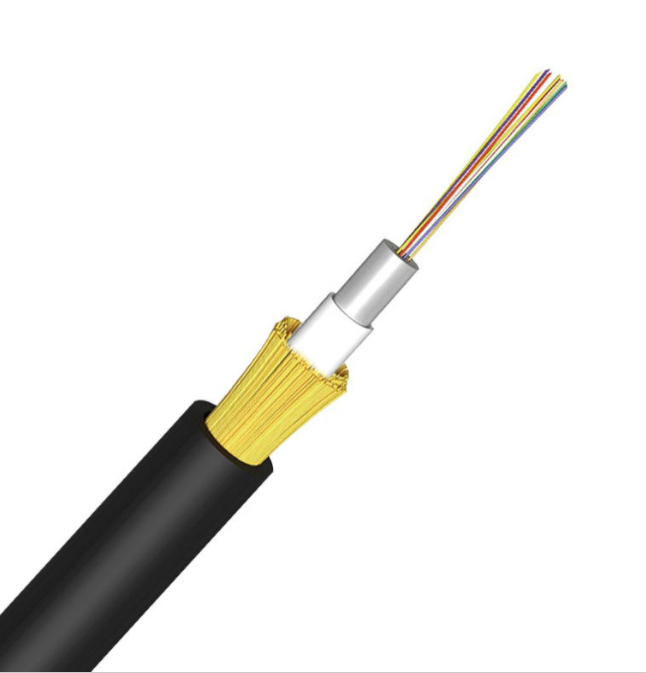

Outdoor Unitube Non Metallic Air Blowing Micro Fiber Optic Cable GCYFXTY Duct

The fibres are positioned in a loose tube made of PBT. A fibre reinforce plastic locates in the center of core as a non-metallic strength member.The tubes (and the fillers) are stranded around the strength member into a compact and circular core. The cable is completed with a PE sheath.

Feature

GCYFXY The fibres are positioned in a loose tube made of PBT.The tube is filled with a water-resistant filling

compound and covered with a layer of aramid yarn as strength member.The cable is completed with an outer sheath.

1. Using centre tube design less than 24F to get more compact structure.

2. Small outer dismater,light weight,low friction sheath material

3. High speed,long distance air-blowing,efficient installation

4. Optional LSZH outer sheathing,application for access to indoor 7:Optional TFO 200um optical fiber to get smaller outer diamter.

Applications
1. Access to network;
2. FTTH;
3. Adopted to backbone network.

Technical Characteristics

Type	O.D. (mm)	Weight (Kg/km)	Tensile strength Long/short term (N)	Crush Long/short term (N/100mm)
GCYFXTY-2B1.3	2.3	4	0.15G/0.5G	150/450
GCYFXTY -4B1.3	2.3	4	0.15G/0.5G	150/450
GCYFXTY -6B1.3	2.3	4	0.15G/0.5G	150/450
GCYFXTY- 8B1.3	2.3	4	0.15G/0.5G	150/450
GCYFXTY- 12B1.3	2.3	4	0.15G/0.5G	150/450
GCYFXTY- 24B1.3	2.7	6.5	0.15G/0.5G	150/450

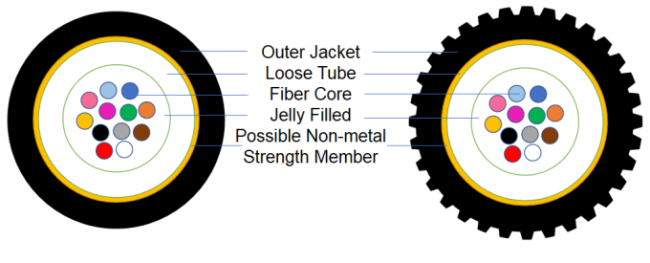

Structure
