1m Fiber Optic Pigtails Simplex Duplex Singlemode Multimode St Fc Lc Sc

Price Negotiable
Price: Negotiable
MOQ: 50
Delivery Time: 5-8
Brand: DAMU
Product Description

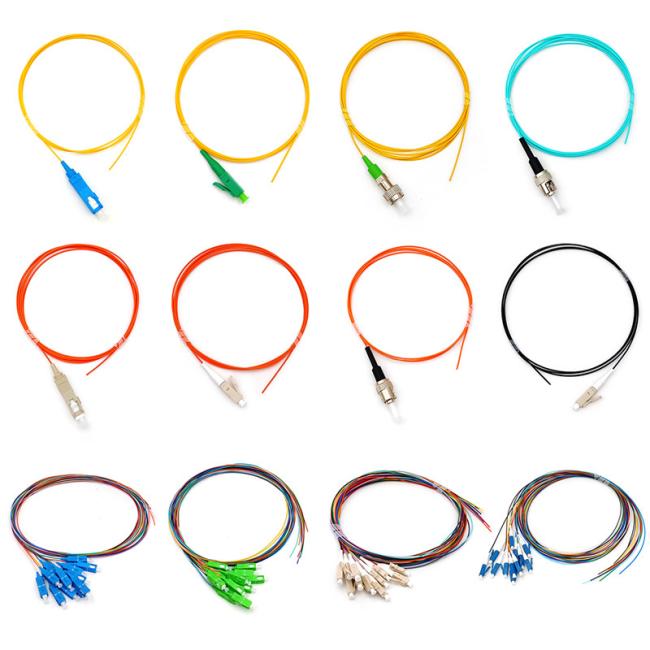

12 core 1m simplex duplex singlemode multimode mm sm om3 om4 optical patch cord pigtails st fc lc sc apc upc optic fiber

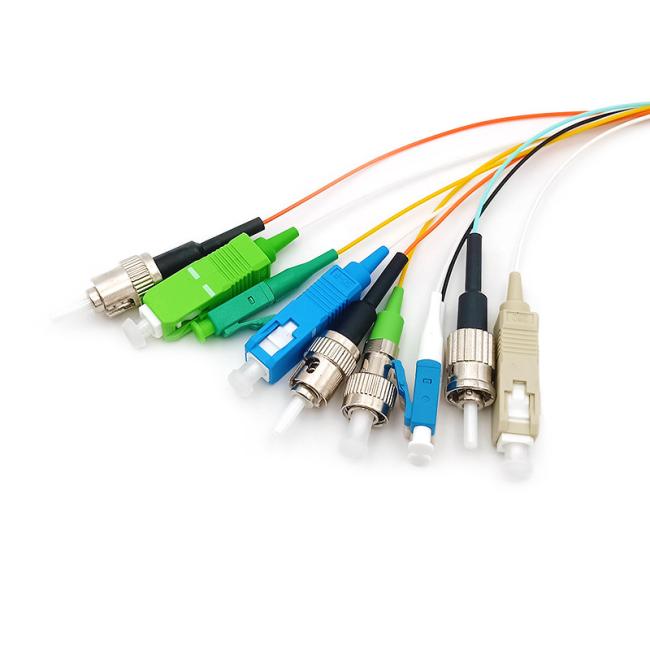

Our optical fiber patch cord (fiber jumper) is a length of fiber cabling fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end. Fiber jumpers also come in hybrid varieties with one type of connector on one end and another type of connector on the other. Jumpers are used in the same manner as patch cords, to connect end devices or network hardware to the structured cabling system.



Features

High dense spaces
Ceramic ferrules connectors
Half the size of standard connector
Low insertion loss,high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
100% Insertion,Return Loss, End face and Interference inspection



Product Description



Product Name

ftth fiber optic pigtail

Connector

SC FC LC ST MU E2000 MT-RJ

Polishing

SM/UPC

MM/PC

SM/APC

Insertion Loss(max)

≤0.30dB

≤0.25dB

≤0.30dB

Return Loss(min)

≥50 dB

≥35 dB

≥60 dB

Tensile Strength

>6N

Durability

<0.20 dB typical change 1000 matings

Repeatability

≤0.1dB

Storage , Operating Temperature [°C]

-40~+85

Geometric Specification (For special request)



PC End-face

APC End-face

Radius of Curvature

SC/FC/ST

10~25 mm

5~12 mm

LC/MU

7~25 mm

5~15 mm

Apex Offset

≤50 um

Fiber Spherical Height

+/- 50 nm

Angular Offset

——

8°± 0.2°

FAQ
1.who are we?
We are based in Guangdong, China, start from 2018,sell to Eastern Europe(18.00%),Western Europe(13.00%),Northern
Europe(11.00%),South Asia(10.00%),North America(9.00%),Mid East(8.00%),Central America(7.00%),South America(7.00%),Eastern
Asia(6.60%),Africa(5.00%),Domestic Market(2.20%),Southern Europe(1.20%),Oceania(1.00%),Southeast Asia(1.00%). There are total
about 11-50 people in our office.

2.how can we guarantee quality?

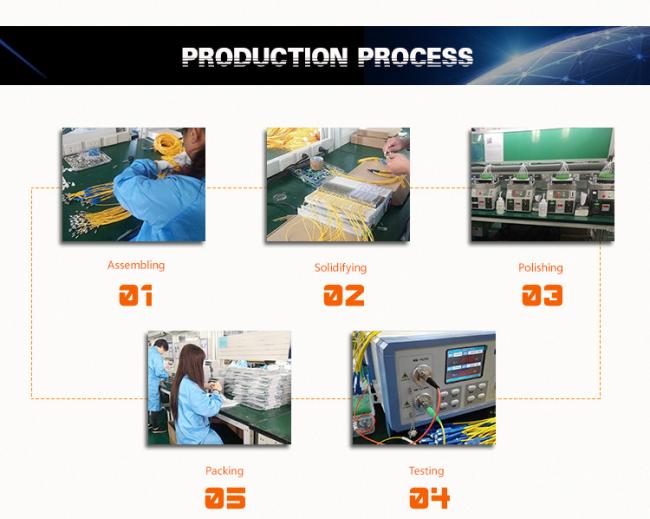

Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
fiber optic polishing machine,fast connector,fiber optic polishing jig,uvc sterilizer box,fiber optic patch cord

4.why should you buy from us not from other suppliers?
12 years of experience advanced level in optical fiber equipment, we have OEM and ODM capabilities. We have always been in the
leading position in the same industry with superb workmanship, excellent quality, good pre-sales and after-sales services.

5.what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
