China FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter for sale

FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter

Price Negotiable

Price: $70-90/PCS

MOQ: 1

Delivery Time: 3-5days

Brand: DAMU

Product Description

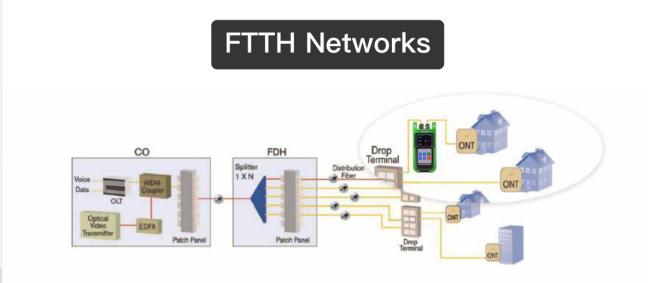

Suitable FTTH PON OPM Network 3 wavelengths 1310 1490 1550nm compact Pon Power Meter

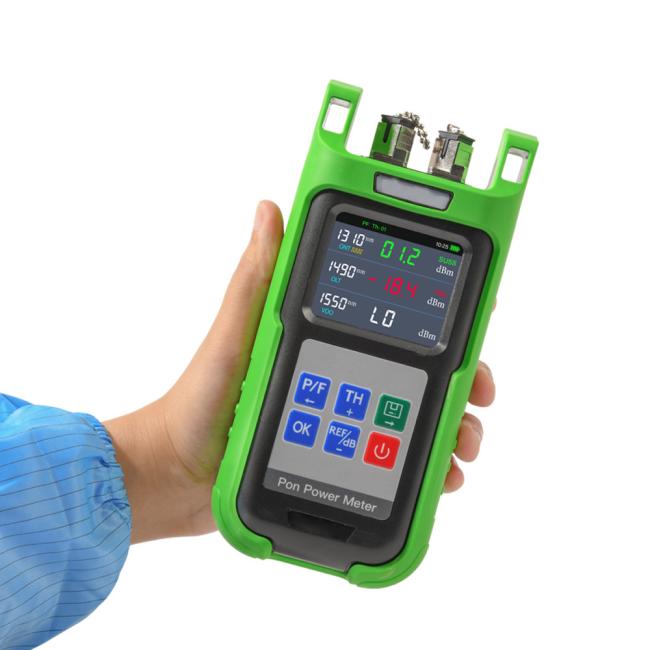

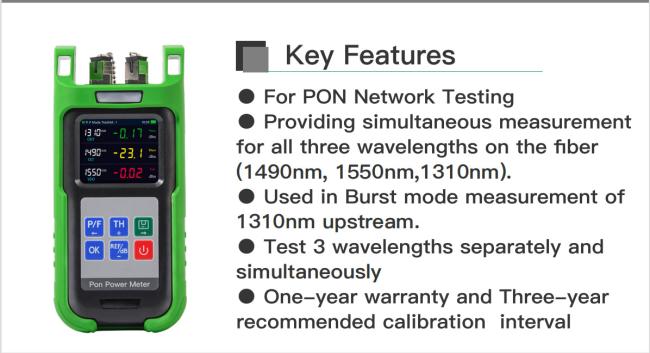

PON Optical Power Meter

Optical Pon Power Meter Fiber Test Tools

* Themeter test threshold can be set through the management software

* Automaticshutdown (can be cancelled)

* Userscan test 1490 in the PON network at the same time nm, 1550nm, 1310nm three wavelengths

* Simultaneouslymeasure and display diﬀerent PON architectures, data and video signals

* Theinstrument provides ﬁve sets of thresholds to choose from, with pass, warning, and fail modes

* Manualcalibration

Model	PON
Measuring wavelength	1310nm	1490nm	1550nm
Sensor Type	InGaAS
Linearity	±0.2dB@1550nm≥-40dBm
Isolation With ﬁltering function	1490nm Wavelength＞40dB	1310nm Wavelength＞40dB	1310nm Wavelength＞40dB
	1550nm Wavelength＞40dB	1550nm Wavelength＞30dB	1490nm Wavelength＞30dB
Testing range	-40dBm～+16dBm	-50dBm～+16dBm	-50dBm～+23dBm
Insertion loss in penetration mode (dB)	Less than 1.5dB
Measurable optical frequency broadband	1260～1360	1480～1500	1539～1565
Inherent uncertainty	0.5dB±1nW@1550nm
Display resolution	0.01dB
Threshold setting	5 groups are set by the host computer
Calibration wavelength	1310nm/1490nm/1550nm
Data storage	900 groups
Operating temperature	-10℃～+50℃
Relative humidity	0%～95%RH
Interface type	SC/UPC(Other types can be customized)
Power supply	3 AA batteries
