Mini Tube 1x16 Fiber Optical Splitter Bare PLC Colorful Legs Blister Packing
Price:
Negotiable
MOQ:
2pcs
Delivery Time:
Negotiable
Brand:
DAMU
Product Description

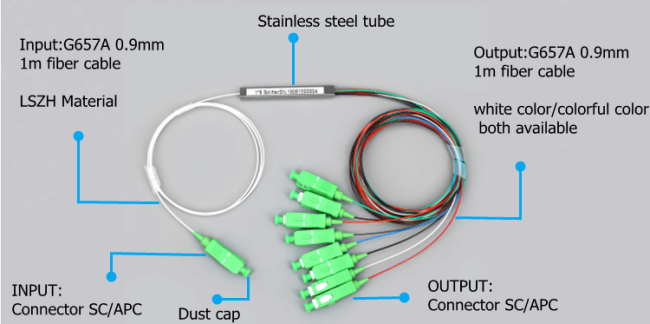

fiber optical splitter 1*16 mini tube without connector bare PLC
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. DAMU provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. The following are our main PLC types:
Feature
--Low insertion loss & High return loss
--Good exchangeability --Good Durability
--High temperature stability
--Superior PC/UPC/APC Polishing
--Standard: IEC Grade B
Applications:
--Fiber Optic communications system
--Fiber Optic access networks
--CATV/CCTV
--Fiber Optic data communication
--Fiber Optic Test Equipment
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Fiber Type | SMF-28e or customer specified | |||||
| Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40~85 °C)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40~85 | |||||
| Storage Temperature (°C) | -40~85 | |||||
| Packaging Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×12×4 |
Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector
