Mini Fiber Optic PLC Splitter SC UPC Connector SM G657A1 1x8 PLC Splitter
Price:
Negotiable
MOQ:
2PCS
Delivery Time:
Negotiable
Brand:
DAMU or OEM
Product Description

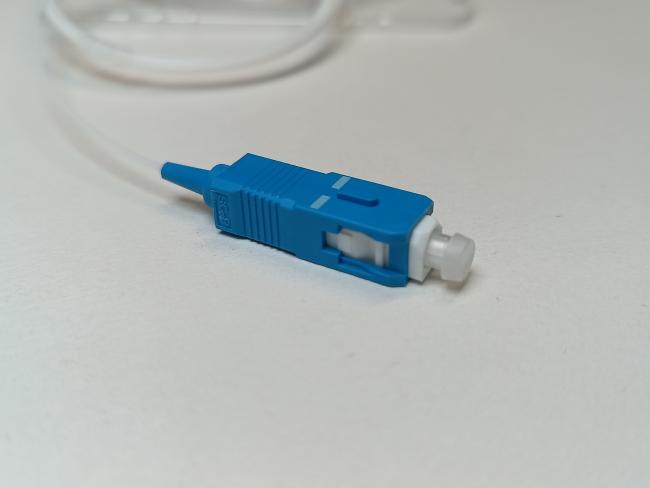

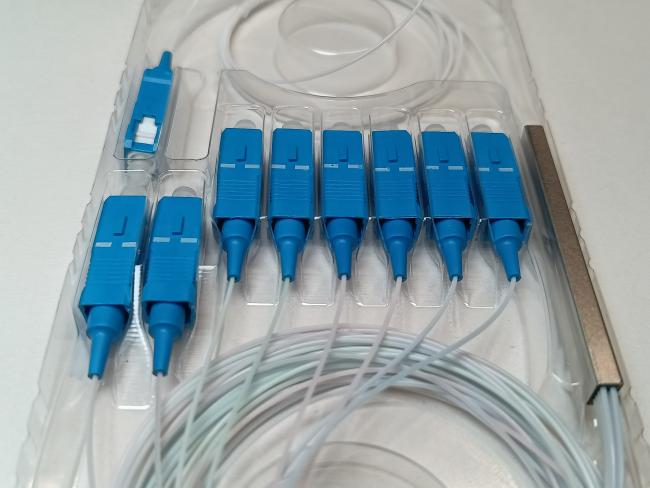

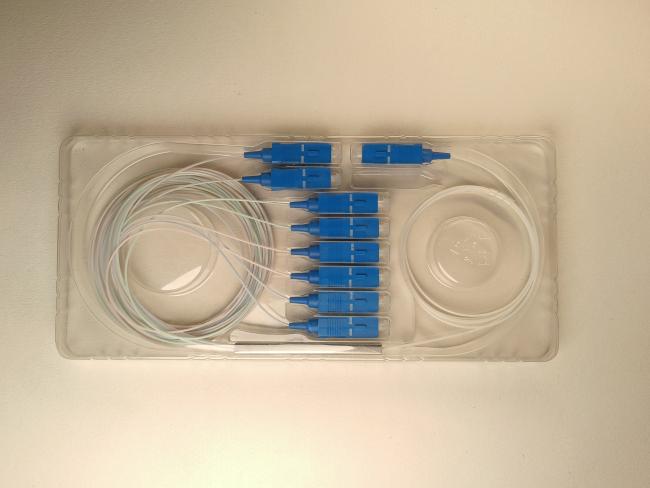

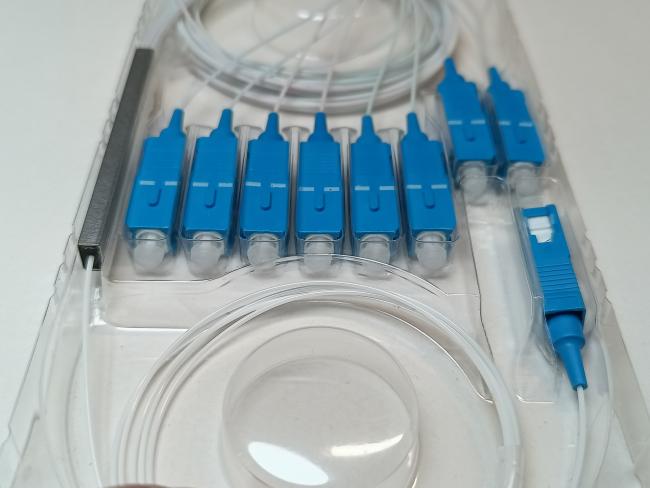

Mini Fiber Optic PLC Splitter SC/UPC Connector SM G657A1 1x8 Splitter Optic PLC
Specification
Features

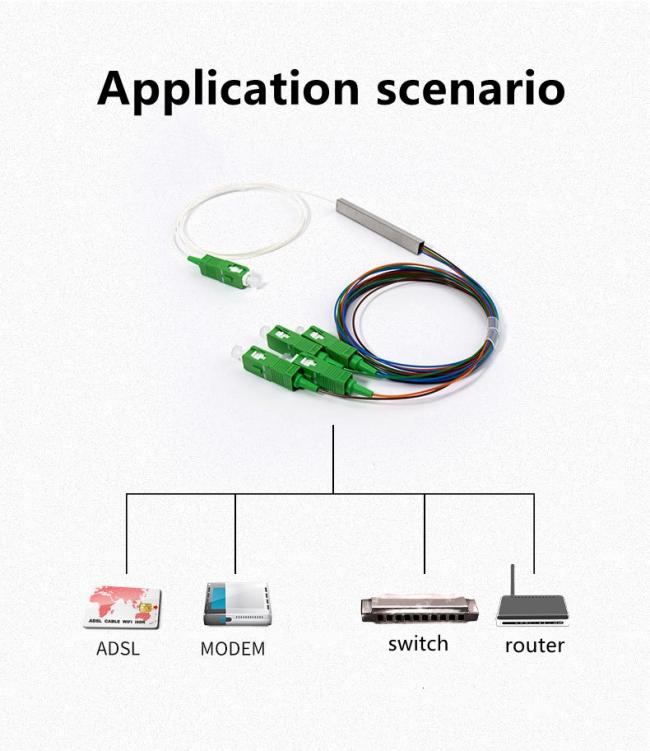

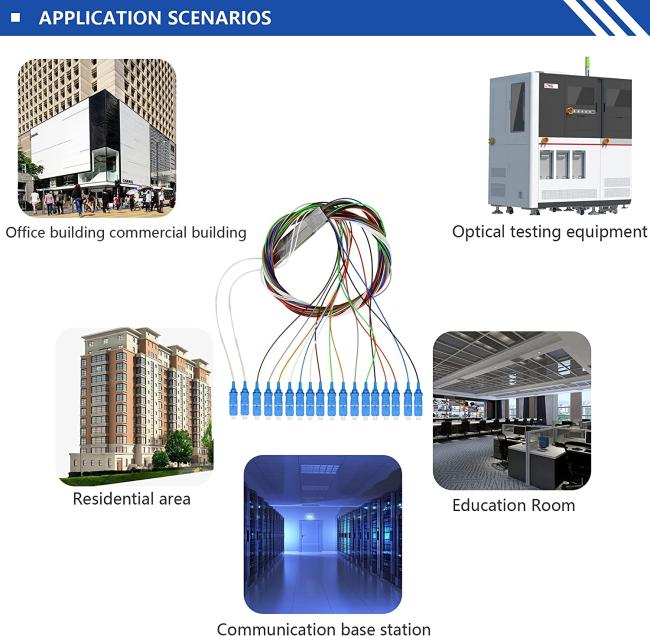

Applications
*FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON)
Splitter 1.5meters
| Parameter | Unit | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | ||
| Fiber Type | / | G.657A, or customized | |||||||
| Operating Wavelength | nm | 1260~1650 | |||||||
| Insertion Loss | P | Max | dB | 4.0 | 7.0 | 10.4 | 13.5 | 16.8 | 20.5 |
| S | Max | dB | 4.2 | 7.3 | 10.6 | 13.8 | 17.1 | 20.8 | |
| PDL | Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | |
| Loss Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 | |
| Return Loss | Min | dB | 55(P Grade)/50(S Grade) | ||||||
| Directivity | Min | dB | 55 | ||||||
| Operating Temperature | ℃ | -40 ~ +85 | |||||||
| Storage Temperature | ℃ | -40 ~ +85 | |||||||
| Dimension(L×W×H) | mm | 40×4×4 | 50×7×4 | 60×12×4 | |||||
|
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each. |
|||||||||
