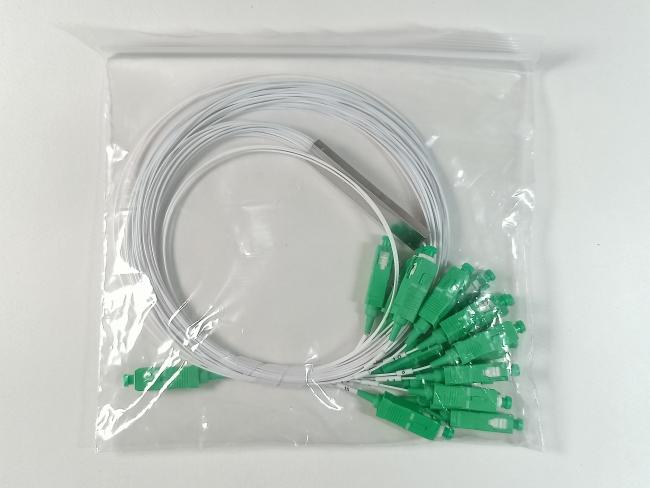

Plastic Bag Packing White Color SCAPC PLC Fiber Optical Splitter 1 IN 16 OUT

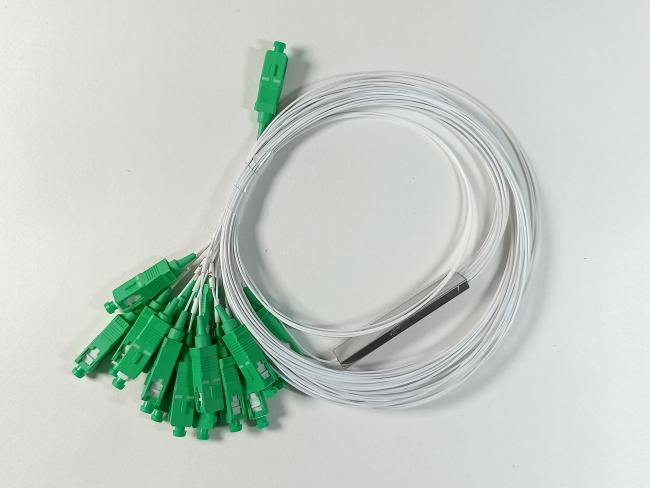

Mini Tube 1x16 Fiber Optical Splitter 16way SCAPC PLC

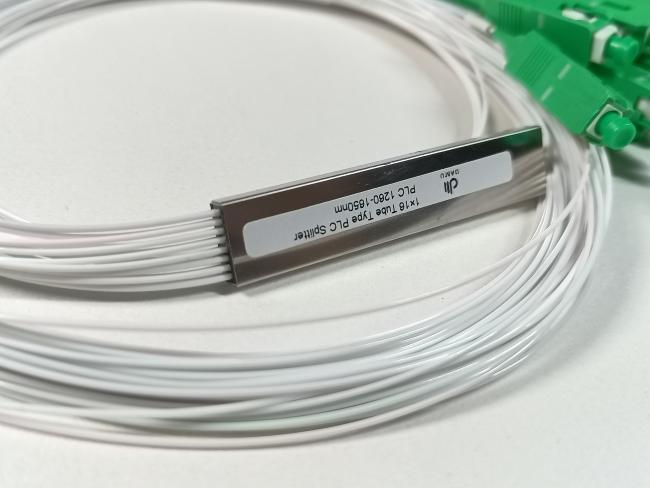

SA connector steel tube gpon 1x16 1*16 mini plc splitter
PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.
PLC splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. Wolon provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Features
- Low Insertion loss and PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: From 1260nm to 1650nm
- High Reliability and Stability
Technical Data:
Split Ratio:1XN

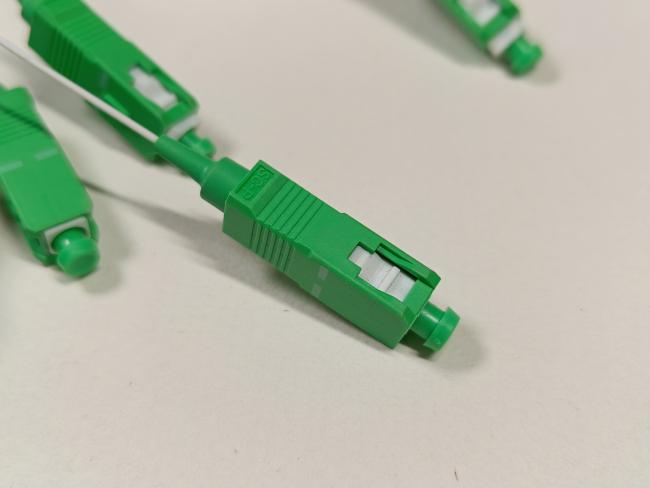

Connector: SC,FC,LC,ST
There are more choice of Split Ratio
| Technical Test Data | ||||||||||
| Split Ratio | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 |
| Wavelength | 1260~1650 (nm) | |||||||||
| Insertion Loss(dB) | ≤3.6 | ≤7.2 | ≤10.2 | ≤13.5 | ≤16.2 | ≤3.8 | ≤7.5 | ≤10.7 | ≤14 | ≤17 |
| Uniformity(dB) | ≤0.4 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.2 | ≤0.6 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 |
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 |
| Directivity(dB) | ≥55 | |||||||||
| Operating temperature | -40~+85 | |||||||||
